Exploded View

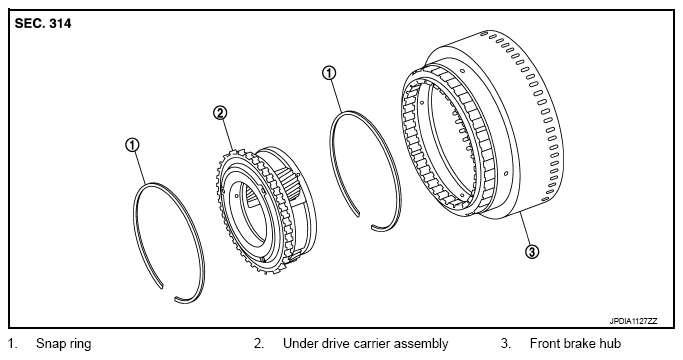

Fig 1: Exploded View Of Under Drive Carrier, Front Brake Hub

G09178560

Courtesy of NISSAN NORTH AMERICA, INC.
