Home >> Infiniti >> 2014 >> QX80 AWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> Removal And Installation >> Front Coil Spring And Shock Absorber >> Exploded View >> Without HBMC

Without HBMC

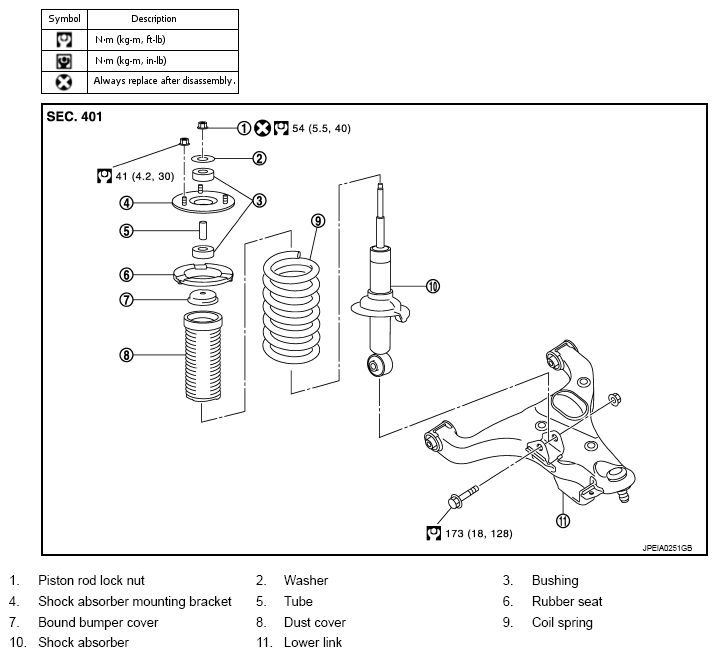

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber With Torque Specifications (Without HBMC)
G09181224Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
