With HBMC

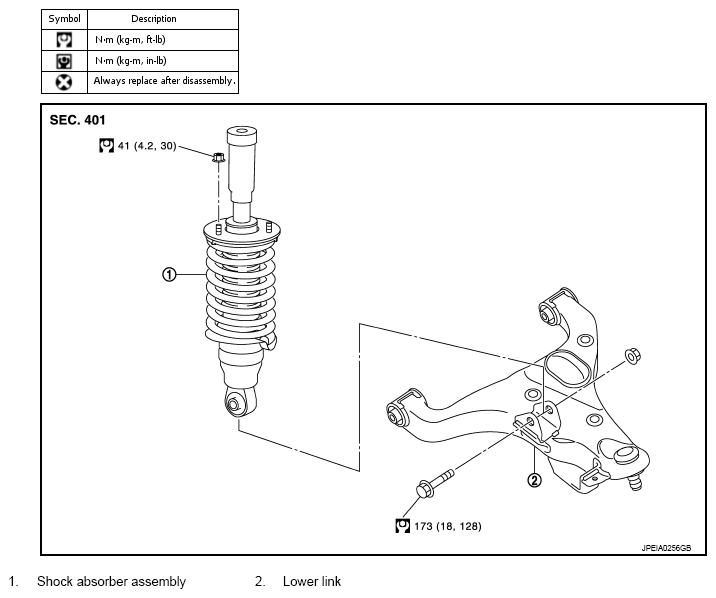

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber With Torque Specifications (With HBMC)
G09181225Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

CAUTION: The shock absorber assembly cannot be disassembled.
