Exploded View: Disassembly

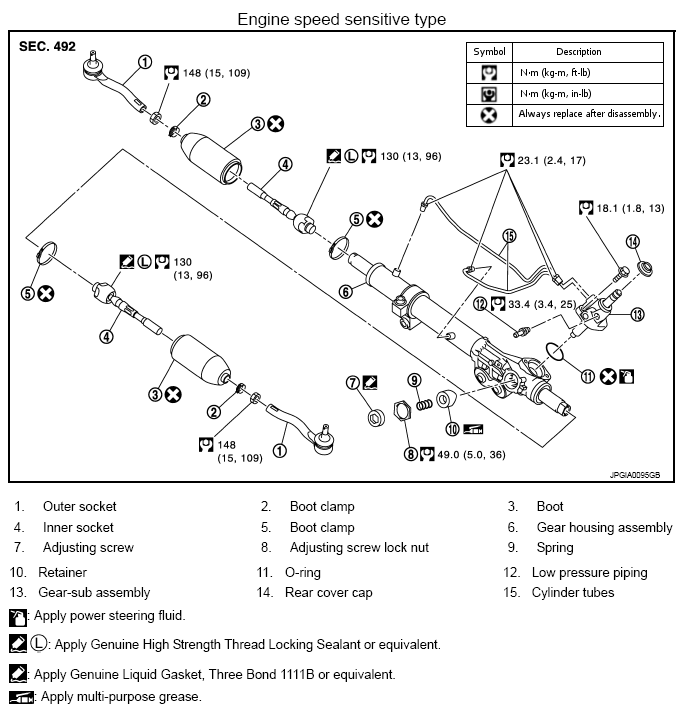

Fig 1: Disassembled View Steering Gear And Linkage With Torque Specifications (Engine Speed Sensitive Type)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

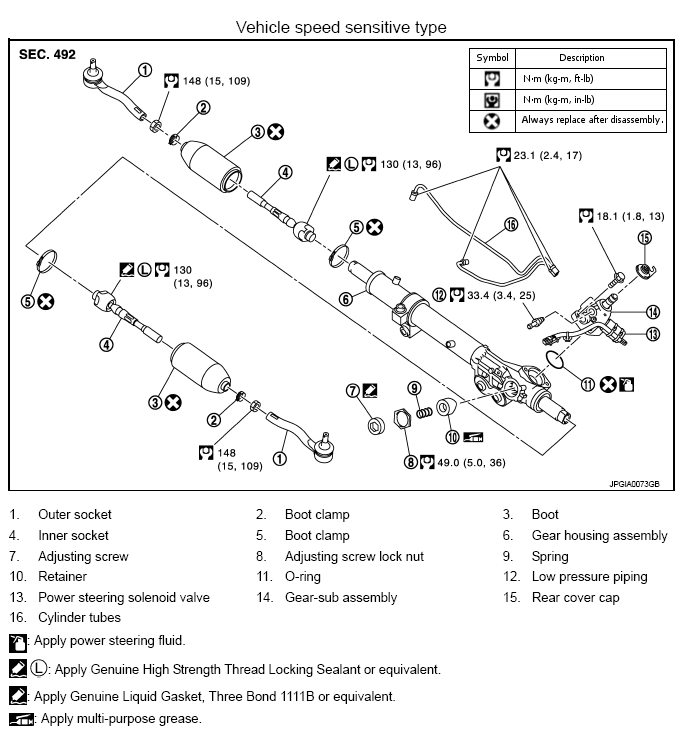

Fig 2: Disassembled View Steering Gear And Linkage With Torque Specifications (Vehicle Speed Sensitive Type)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
