Engine Control System (Introduction)
>>
System Description
>>
System
>>
Fuel Filler Cap Warning System
>>
FUEL FILLER CAP WARNING SYSTEM: System Description
>>

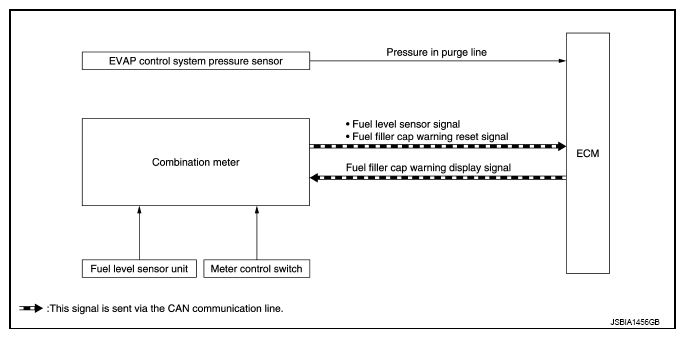

System Diagram
System Diagram
Fig 1: Fuel Filler Cap Warning System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Meter control switch means trip computer switch.
Courtesy of NISSAN NORTH AMERICA, INC.
