Connector End Views

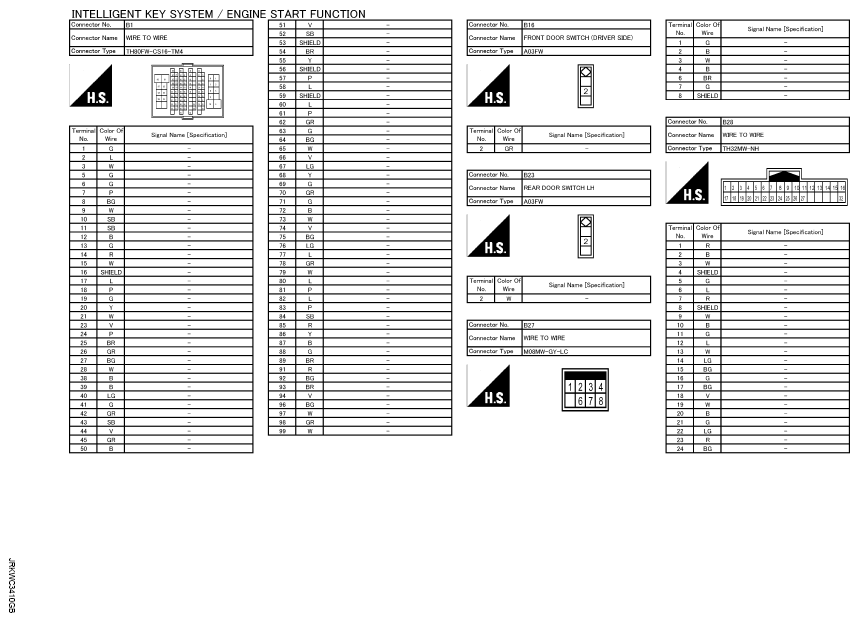

Fig 1: Intelligent Key System/Engine Start Function Connector End Views (1 Of 10)
G09503555Courtesy of NISSAN NORTH AMERICA, INC.

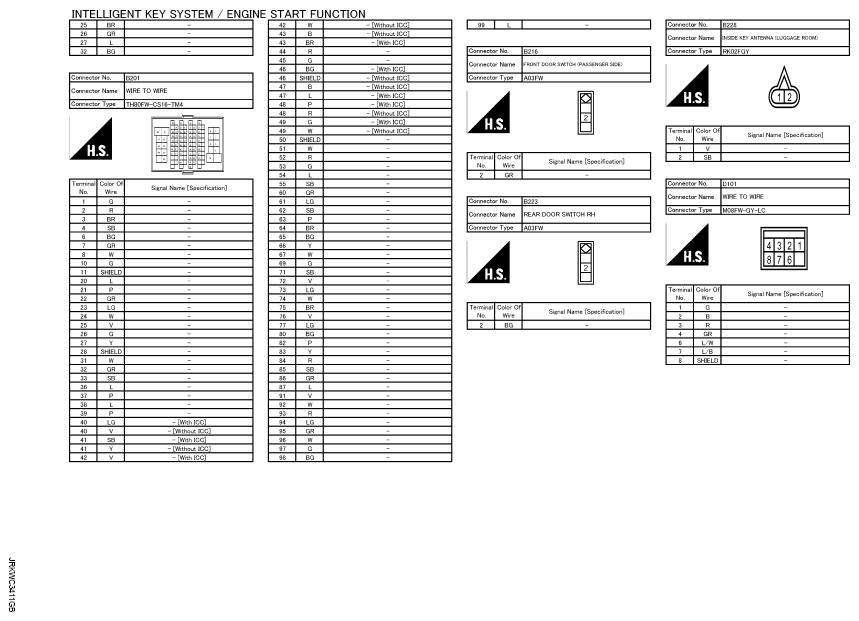

Fig 2: Intelligent Key System/Engine Start Function Connector End Views (2 Of 10)
G09503556Courtesy of NISSAN NORTH AMERICA, INC.

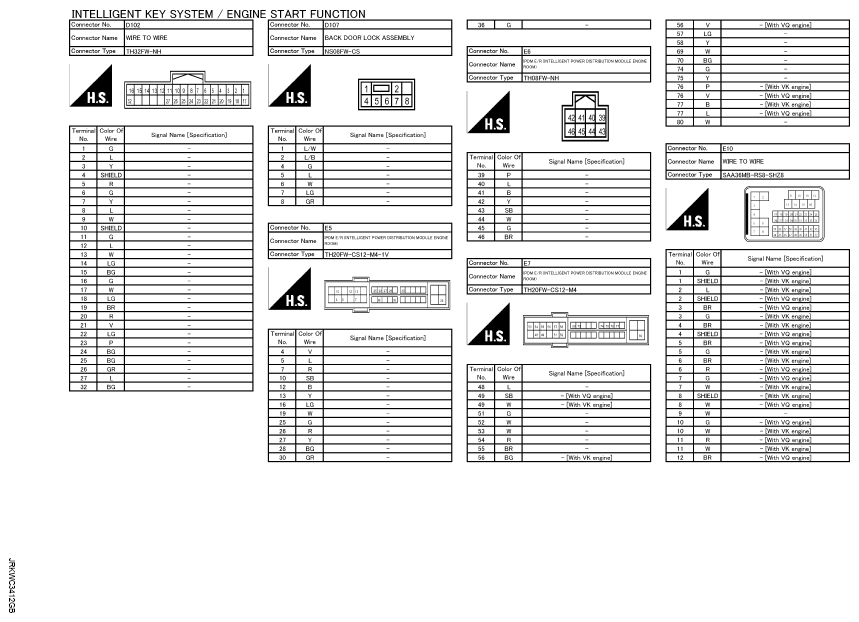

Fig 3: Intelligent Key System/Engine Start Function Connector End Views (3 Of 10)
G09503557Courtesy of NISSAN NORTH AMERICA, INC.

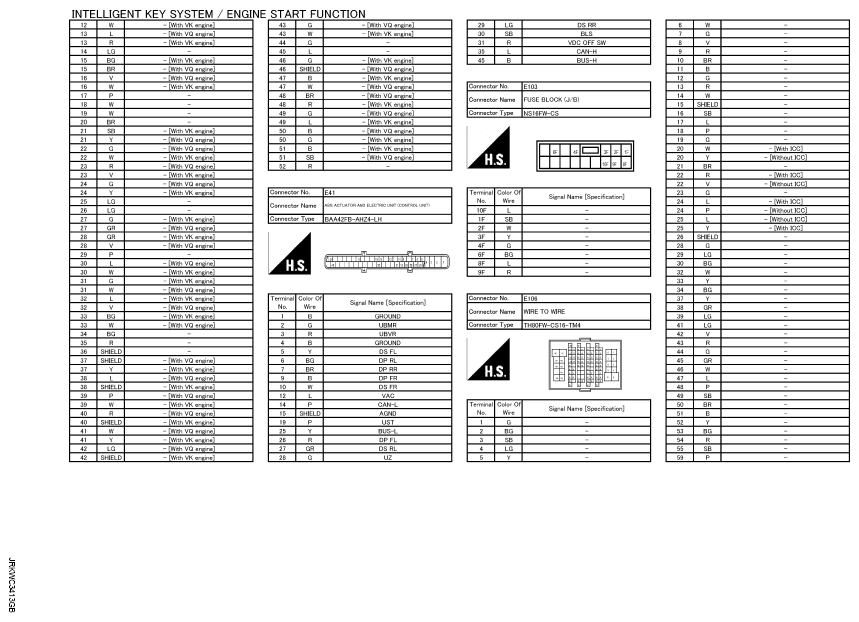

Fig 4: Intelligent Key System/Engine Start Function Connector End Views (4 Of 10)
G09503558Courtesy of NISSAN NORTH AMERICA, INC.

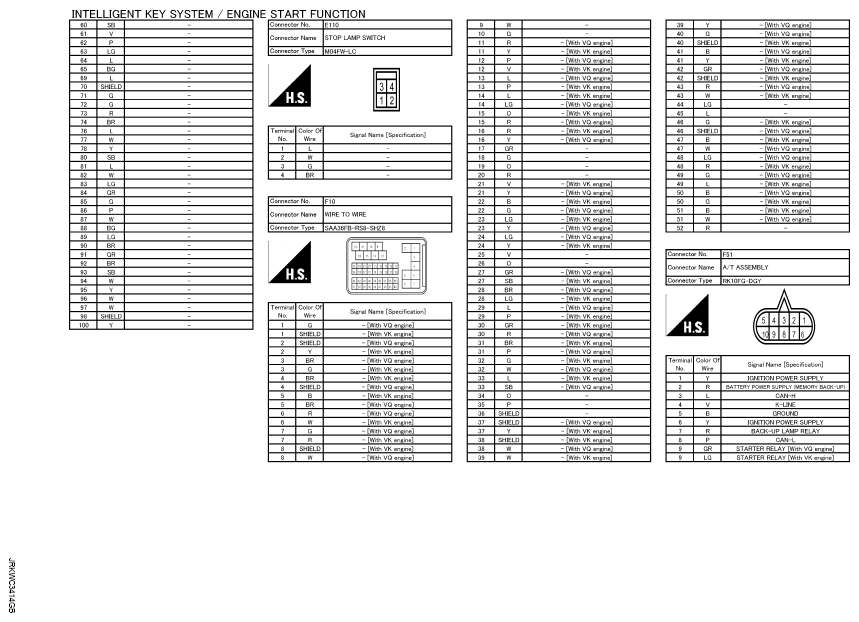

Fig 5: Intelligent Key System/Engine Start Function Connector End Views (5 Of 10)
G09503559Courtesy of NISSAN NORTH AMERICA, INC.

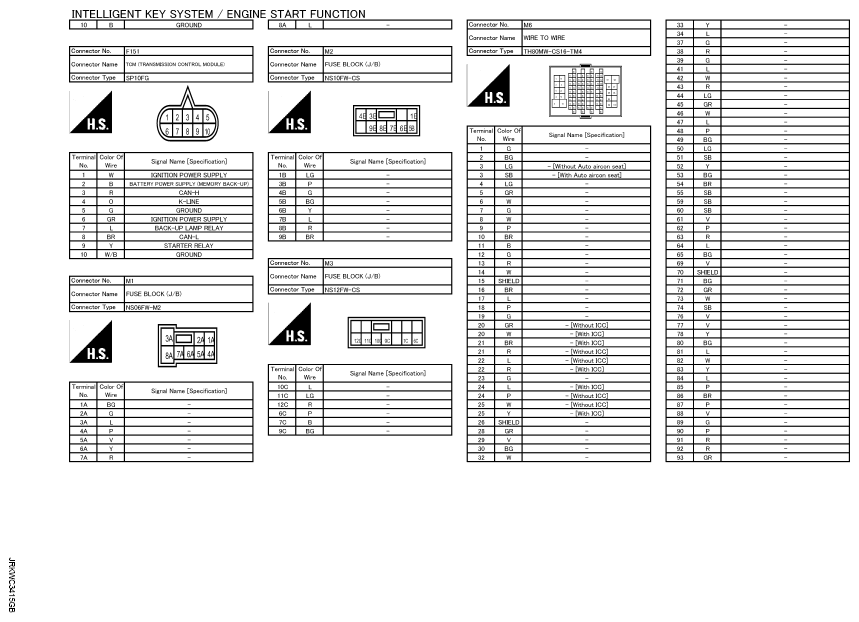

Fig 6: Intelligent Key System/Engine Start Function Connector End Views (6 Of 10)
G09503560Courtesy of NISSAN NORTH AMERICA, INC.

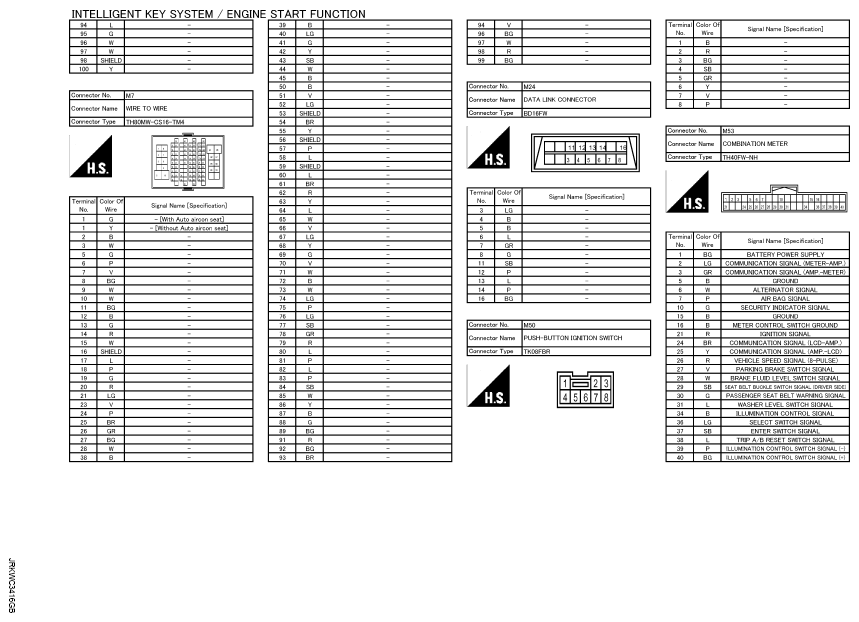

Fig 7: Intelligent Key System/Engine Start Function Connector End Views (7 Of 10)
G09503561Courtesy of NISSAN NORTH AMERICA, INC.

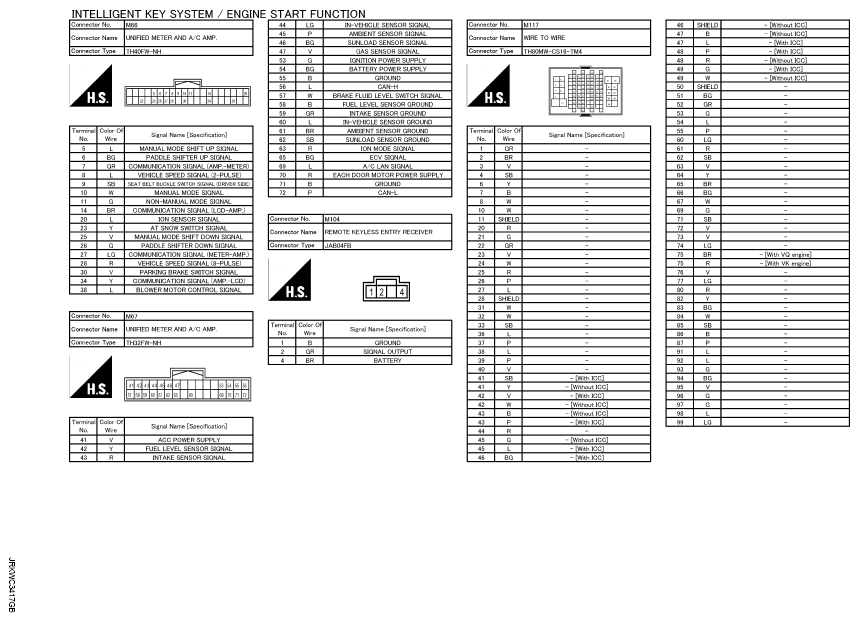

Fig 8: Intelligent Key System/Engine Start Function Connector End Views (8 Of 10)
G09503562Courtesy of NISSAN NORTH AMERICA, INC.

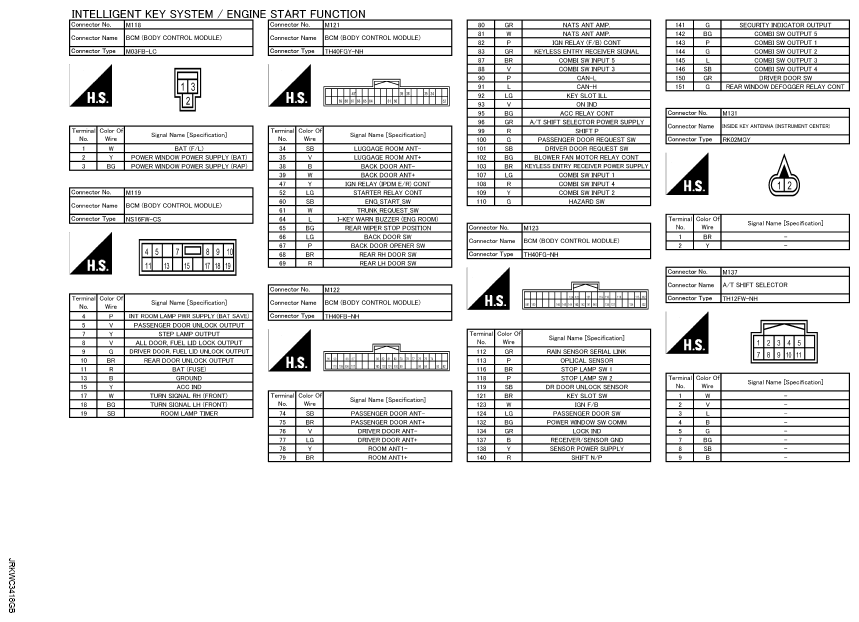

Fig 9: Intelligent Key System/Engine Start Function Connector End Views (9 Of 10)
G09503563Courtesy of NISSAN NORTH AMERICA, INC.

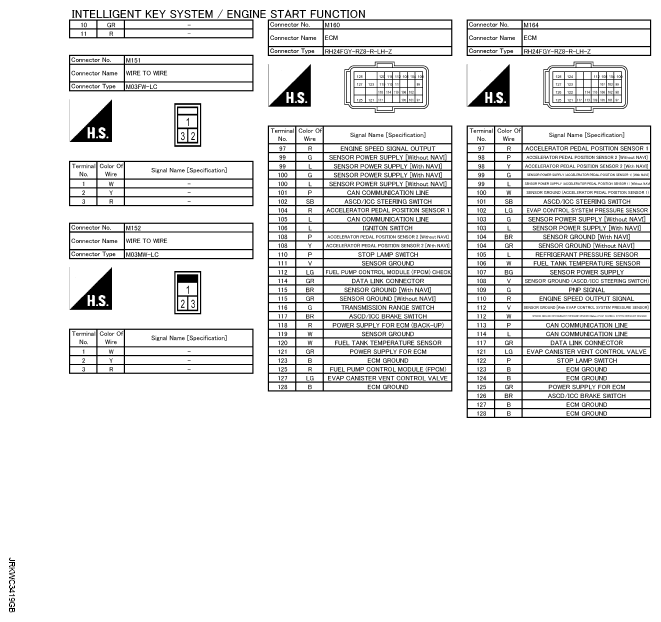

Fig 10: Intelligent Key System/Engine Start Function Connector End Views (10 Of 10)
G09503564Courtesy of NISSAN NORTH AMERICA, INC.
