Home >> Infiniti >> 2014 >> QX60 Base, FWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System (Except Hybrid) >> Disassembly And Assembly >> Fuel Level Sensor Unit >> Disassembly and Assembly >> Notes

Disassembly and Assembly: Notes

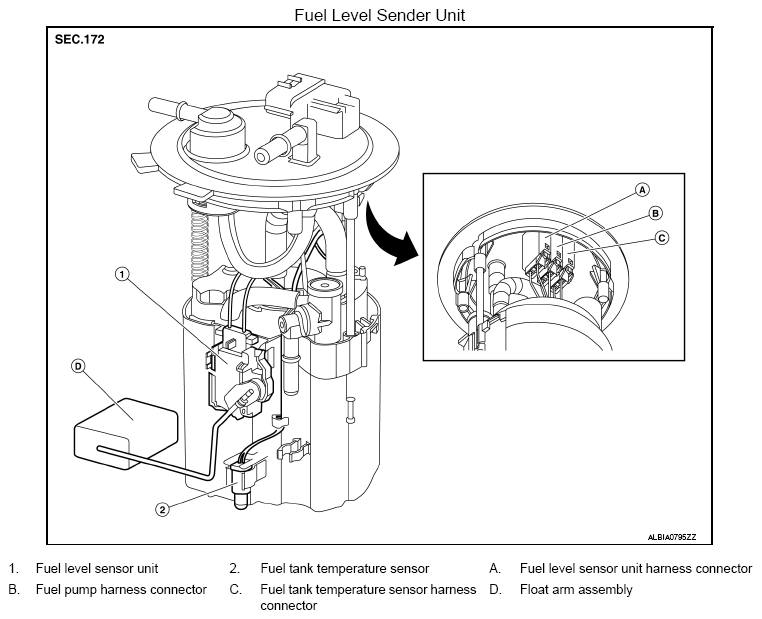

Fig 1: Disassembled View Of Fuel Level Sensor Unit

G09404712

Courtesy of NISSAN NORTH AMERICA, INC.
