Connector End Views

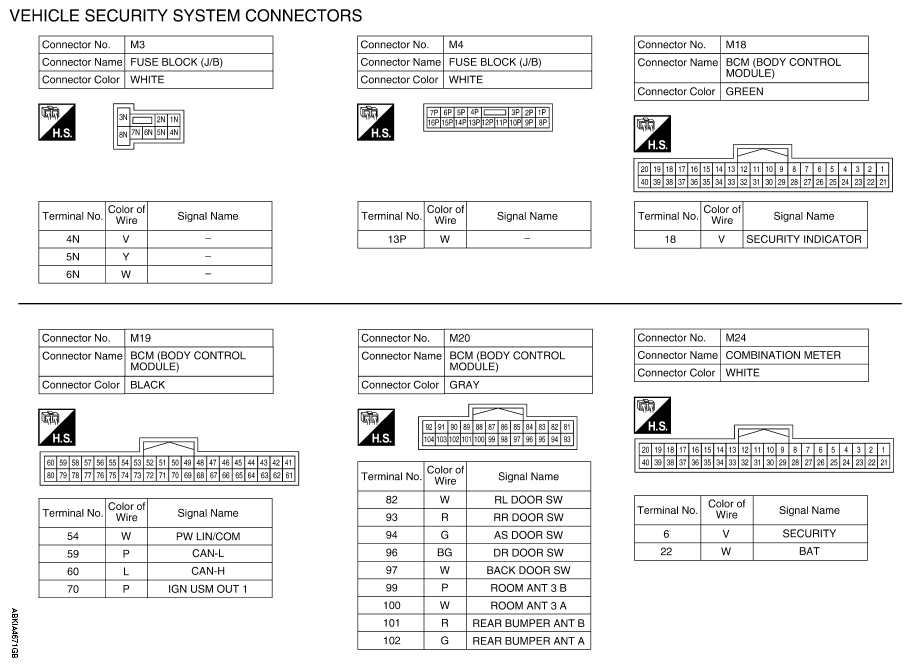

Fig 1: Vehicle Security System Connector End Views (1 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Vehicle Security System Connector End Views (2 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Vehicle Security System Connector End Views (3 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Vehicle Security System Connector End Views (4 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Vehicle Security System Connector End Views (5 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Vehicle Security System Connector End Views (6 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Vehicle Security System Connector End Views (7 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Vehicle Security System Connector End Views (8 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Vehicle Security System Connector End Views (9 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Vehicle Security System Connector End Views (10 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Vehicle Security System Connector End Views (11 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Vehicle Security System Connector End Views (12 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Vehicle Security System Connector End Views (13 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Vehicle Security System Connector End Views (14 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.
