2WD Models

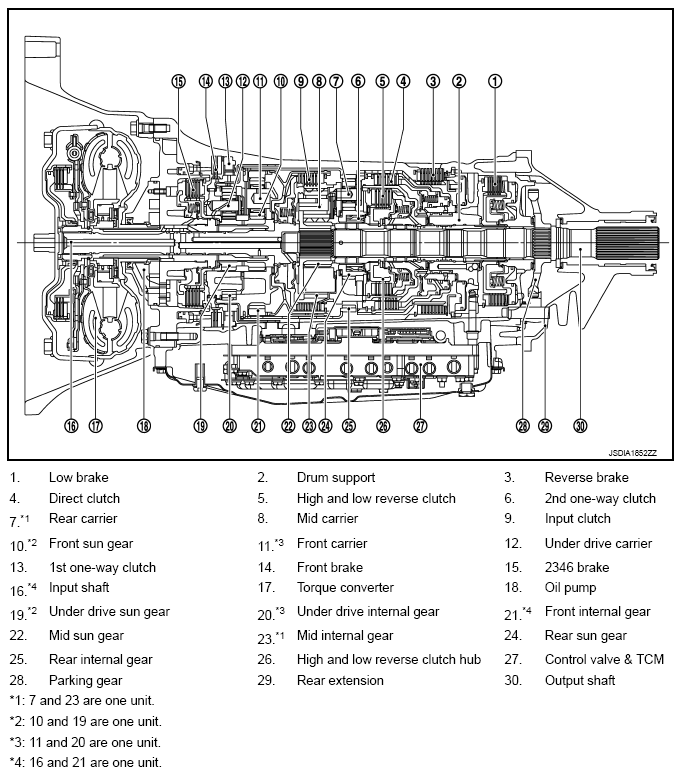

Fig 1: Cross-Sectional View Of Shift Mechanism (2WD Models)

G09172761

Courtesy of NISSAN NORTH AMERICA, INC.
