Exploded View

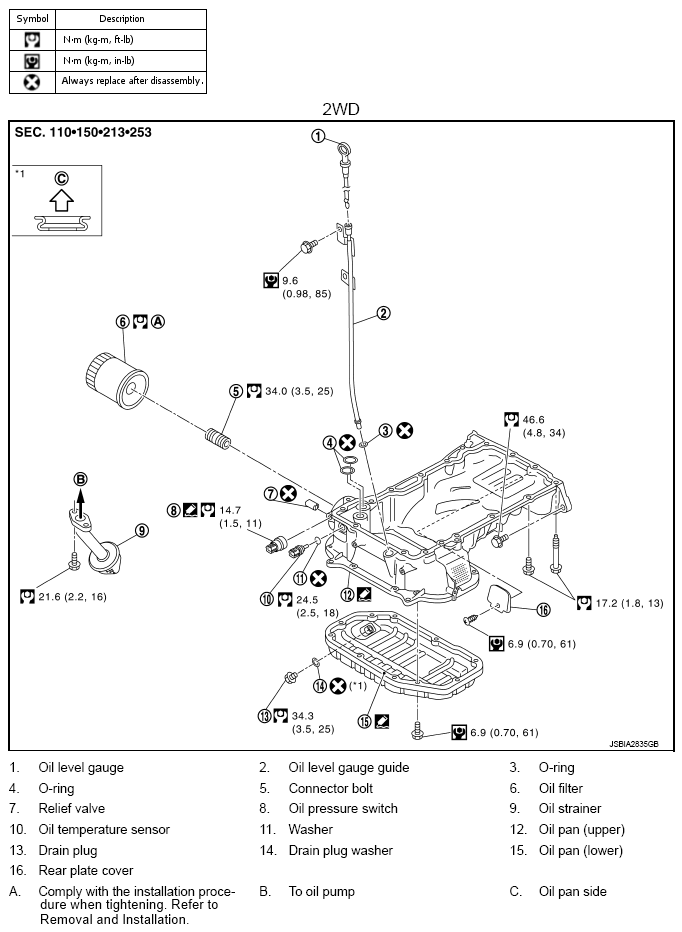

Fig 1: Exploded View Of Oil Pan With Torque Specifications (Lower - 2WD)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

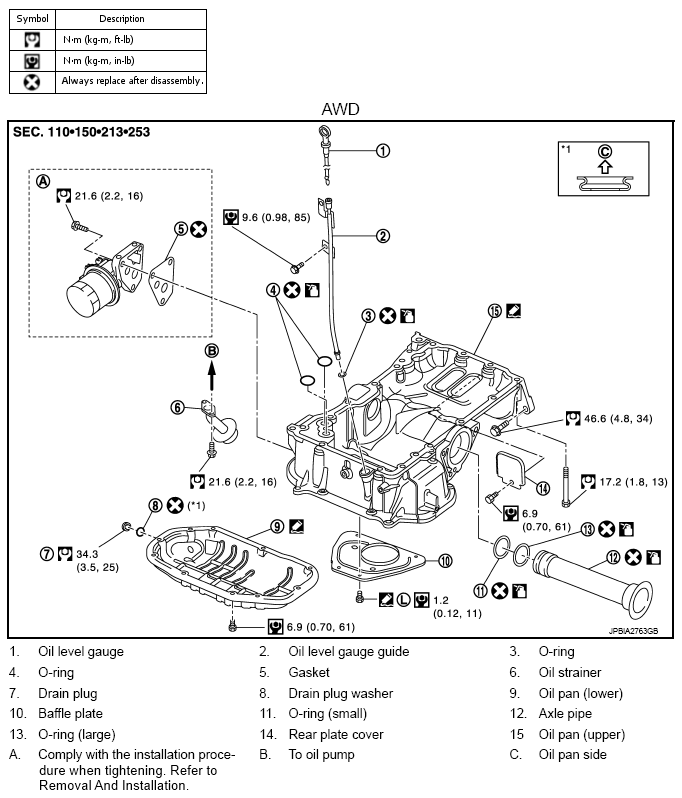

Fig 2: Exploded View Of Oil Pan With Torque Specifications (Lower - AWD)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
