Bulb Check Action And Fail-Safe Indication

Vehicle condition/Driver's operation

BSW indicator

Warning systems ON indicator

Indication on the combination meter

Ignition switch: OFF → ON

Approx. 2 sec. ON

Approx. 5 sec. ON⁽¹⁾

When DTC is detected

OFF

When radar blockage is detected

OFF

⁽¹⁾	If BSW initial state is ON, warning systems ON indicator continues turned ON.

NOTE: The condition is seen regardless BSW system status (ON/OFF).

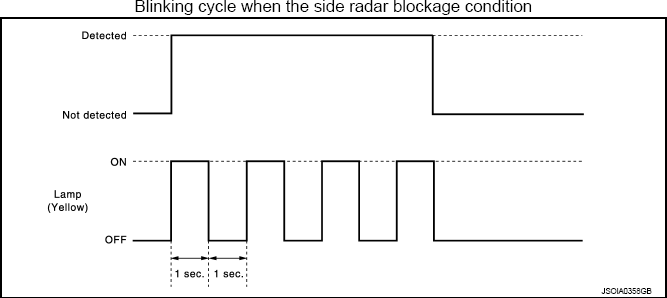

Fig 1: Side Radar Blockage Condition Blinking Cycle

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Time shown in the figure is approximate time.
