Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque.

  Bolt No.	A	B	C	D
  Quantity	4	3	4	2
  Bolt length "L" mm (in)	75 (2.95)	45 (1.77)	40 (1.57)	30 (1.18)

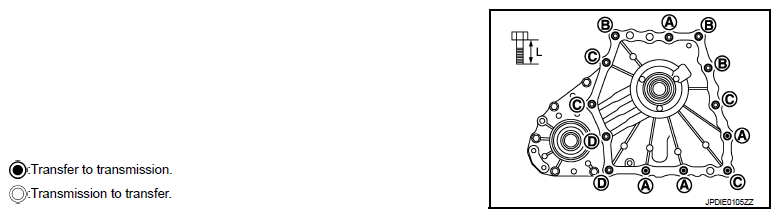

  Fig 1: Identifying Transfer To Transmission And Transmission To Transfer Mounting Bolts

  Courtesy of NISSAN NORTH AMERICA, INC.
• When installing transfer air breather hose, make sure there are no pinched or restricted areas on the transfer air breather hose caused by bending or winding.
  • Be sure to insert until front side end (A) of air breather hose (1) reaches the end and rear side end (B) reaches the tube bent R.
    Fig 2: Identifying Air Breather Hose And Ends

    Courtesy of NISSAN NORTH AMERICA, INC.
• After the installation, check the fluid level, fluid leakage and the A/T positions. Refer to "INSPECTION ".
