Exploded View
Exploded View

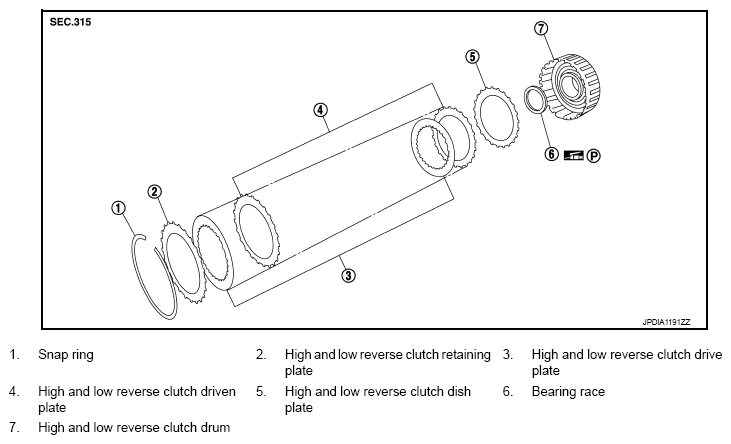

Fig 1: Exploded View Of High And Low Reverse Clutch
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for the symbols in the figure.
