Removal and Installation: Installation
Note the following, and install in the reverse order of removal.
CAUTION:
- Be careful not to damage connector when installing any connector.
- Never reuse joint connector.
- Apply ATF to O-ring of joint connector.
- Never reuse drain plug and drain plug gasket. In addition, install new drain plug and drain plug gasket after adjustment of A/T fluid filling.
- Refer to the following when installing the control valve and TCM to transmission case.CAUTION:
- Make sure that input speed sensor securely installs input speed sensor holes (A).
- Hang down output speed sensor harness toward outside so as not to disturb installation of the control valve and TCM.
- Adjust joint connector of the control valve and TCM to terminal hole of transmission case.

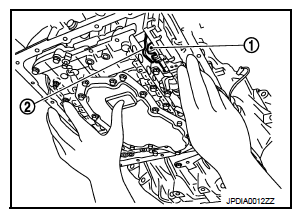

- Assemble it so that manual valve (1) cutout is engaged with manual plate (2) projection.

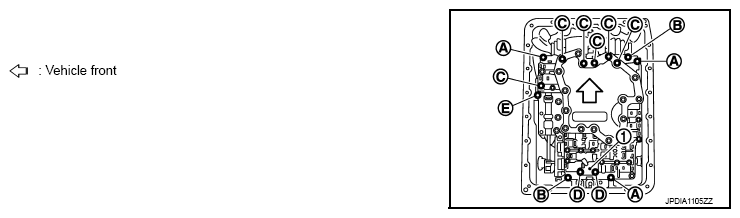

- Install bolts and clip (1) to the control valve and TCM. Tighten bolt (E) to the specified torque before tightening the other than bolts.
Bolt symbol Length mm (in) Number of bolts A 43 (1.69) 3 B 40 (1.57) 2 C 54 (2.13) 6 D 50 (1.97) 2 E(1) 50 (1.97) 1 (1) Reamer bolt - Refer to the following when installing oil pan to transmission case.CAUTION:
- Clean foreign materials (gear wear particles) that clings on the inside of the oil pan and on the magnet, and then assembly.
- Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface of transmission case and oil pan.
- Never reuse oil pan gasket and oil pan mounting bolts.
- Install oil pan gasket in the direction to align hole position.

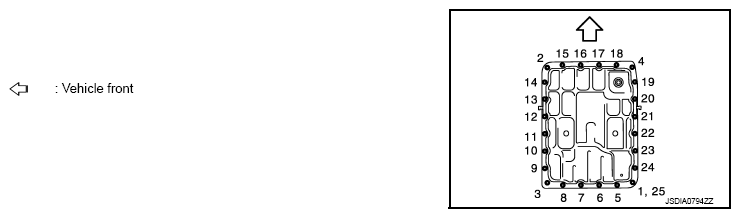

- Tighten the oil pan mounting bolts to the specified torque in the numerical order as shown in the figure below after temporarily tightening them.
- Fill ATF after installation. Refer to "CHANGING ".
