Engine Oil Level

NOTE: Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop it and allow 10 minutes before checking.

Pull out oil level gauge and wipe it clean.
Insert oil level gauge and check the engine oil level is within the range (A) shown in the figure below.
If it is out of range, adjust it.

Fig 1: Identifying Engine Oil Level Range

Courtesy of NISSAN NORTH AMERICA, INC.

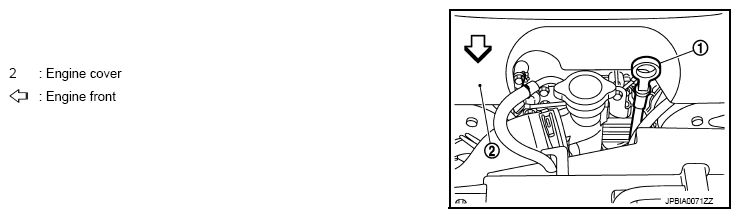

NOTE: When checking the engine oil level, insert oil level gauge (1) with its tip aligned with oil level gauge guide.

Fig 2: Checking Engine Oil Level

Courtesy of NISSAN NORTH AMERICA, INC.
