Infiniti
>>
2014
>>
QX50 Base, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
DTC/Circuit Diagnosis
>>
Charging System
>>
Connector Terminal Identification
Connector Terminal Identification

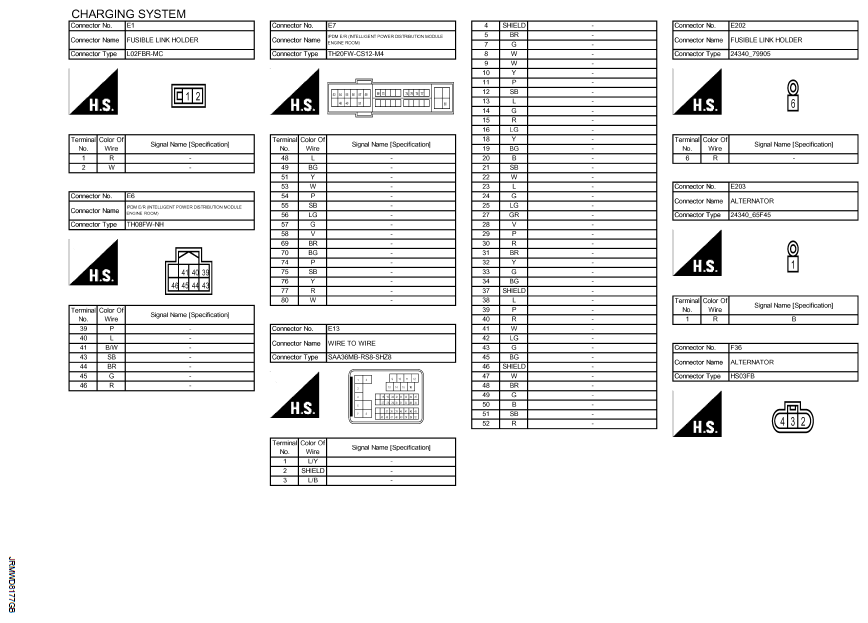

Fig 1: Charging System Connector End View (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

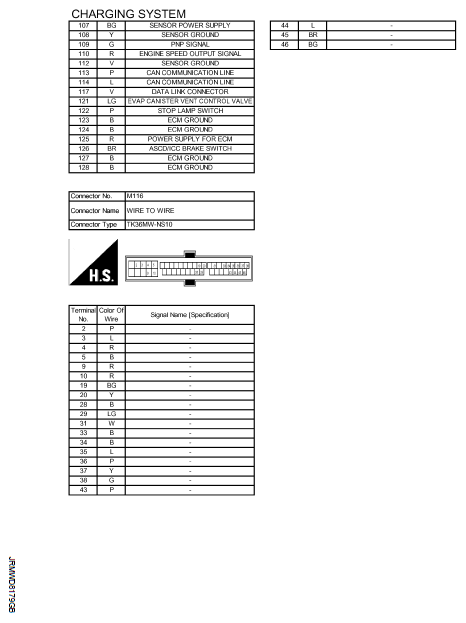

Fig 2: Charging System Connector End View (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

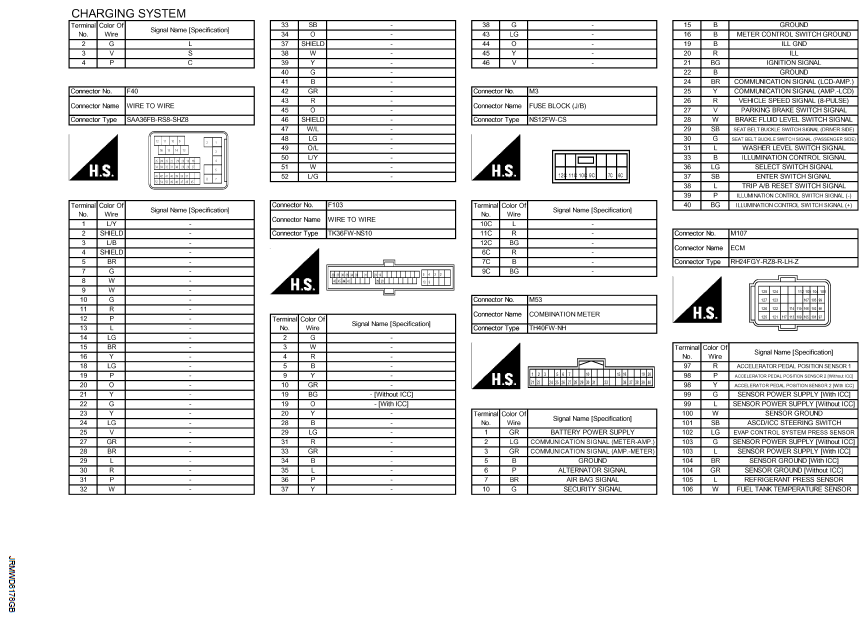

Fig 3: Charging System Connector End View (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
