Side Shaft: Disassembly

  1. Hold extension tube retainer with puller, then press out side shaft using a press.

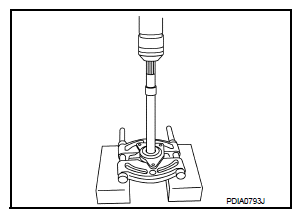

    Fig 1: Pressing Out Side Shaft Using Press
    G07016662Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove side shaft oil seal (1) from extension tube retainer with a suitable tool.
    CAUTION: Never damage extension tube retainer.
    Fig 2: Removing Side Shaft Oil Seal From Extension Tube Retainer Using Tool
    G06637251Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove side shaft bearing from extension tube retainer.
  4. Remove O-ring from extension tube retainer.
  5. Remove dust seal from side shaft.
