Differential Assembly: Adjustment: Backlash

Before inspection and adjustment, drain gear oil.

1. Remove carrier cover. Refer to "DISASSEMBLY ".
2. Fit a dial indicator to the drive gear face to measure the backlash.

   Backlash: Refer to  "BACKLASH ".

   • If the backlash is outside of the specified value, change the thickness of side bearing adjusting washer.

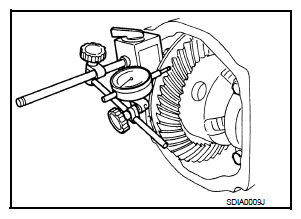

     Fig 1: Measuring Drive Gear Backlash

     Courtesy of NISSAN NORTH AMERICA, INC.

     When the backlash is large:

     Decrease side bearing adjusting washer thickness.

     For selecting adjusting washer, refer to the latest parts information.

     When the backlash is small:

     Increase side bearing adjusting washer thickness. For selecting adjusting washer, refer to the latest parts information.
