System Description
>>
Power Window System
>>
Component Parts Location
Component Parts Location

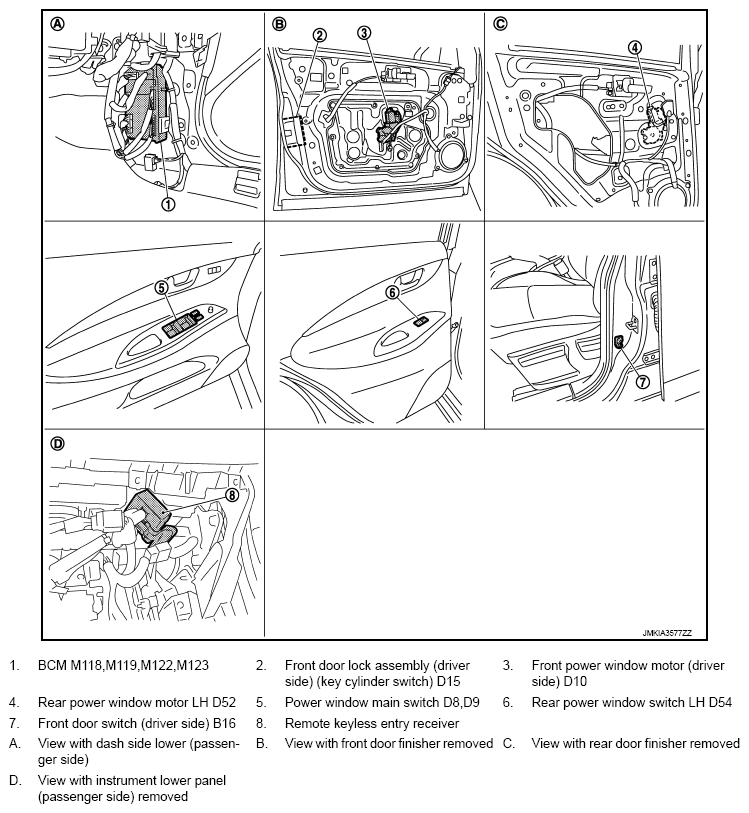

Fig 1: Power Window System Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
