MEMORY FUNCTION: Component Parts Location

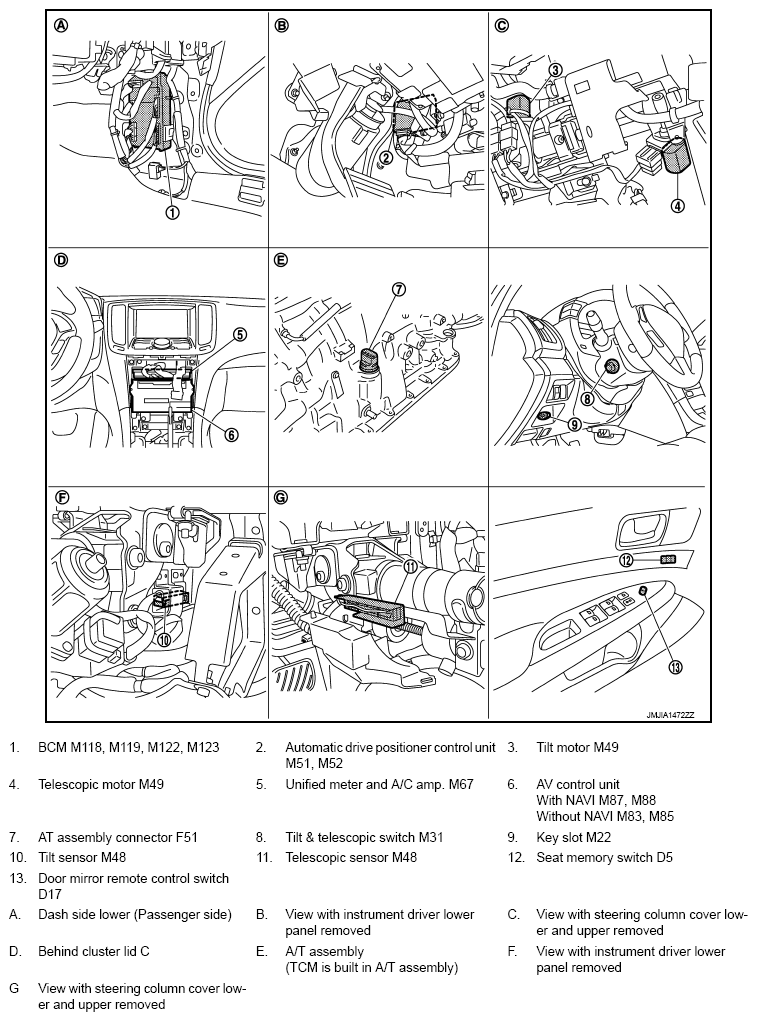

Fig 1: Automatic Drive Positioner System Components Location (Memory Function - 1 Of 2)
G09174027Courtesy of NISSAN NORTH AMERICA, INC.

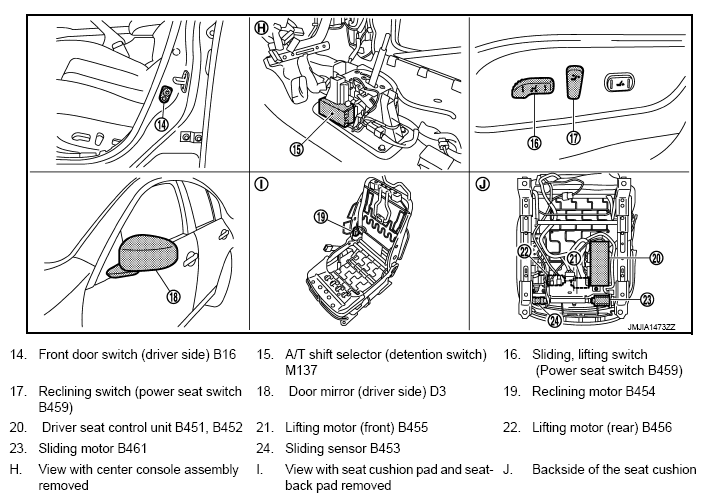

Fig 2: Automatic Drive Positioner System Components Location (Memory Function - 2 Of 2)
G09174019Courtesy of NISSAN NORTH AMERICA, INC.
