Overall Sequence

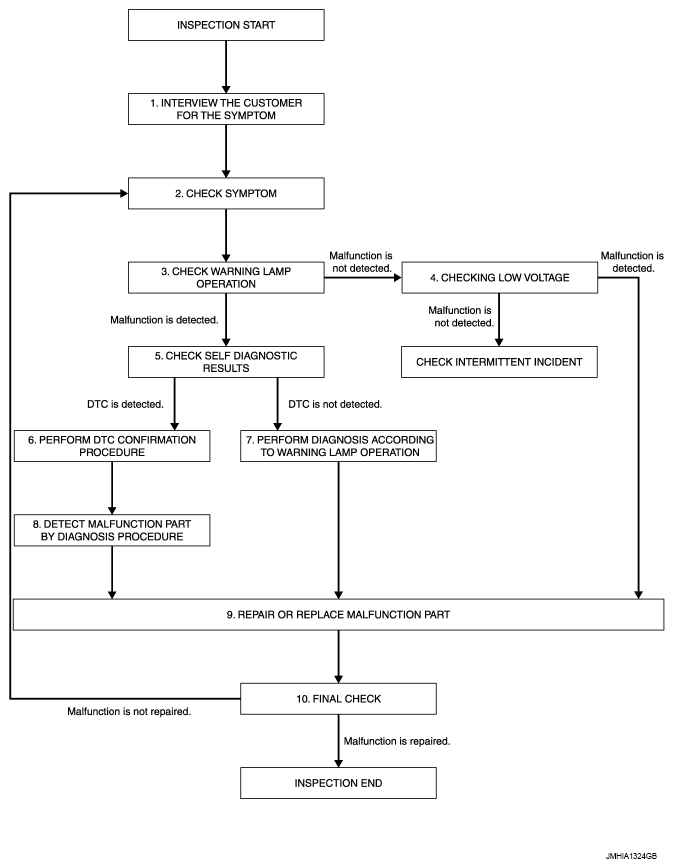

Fig 1: Diagnosis And Repair Work Flow Chart

G09418409

Courtesy of NISSAN NORTH AMERICA, INC.
