Connector End Views

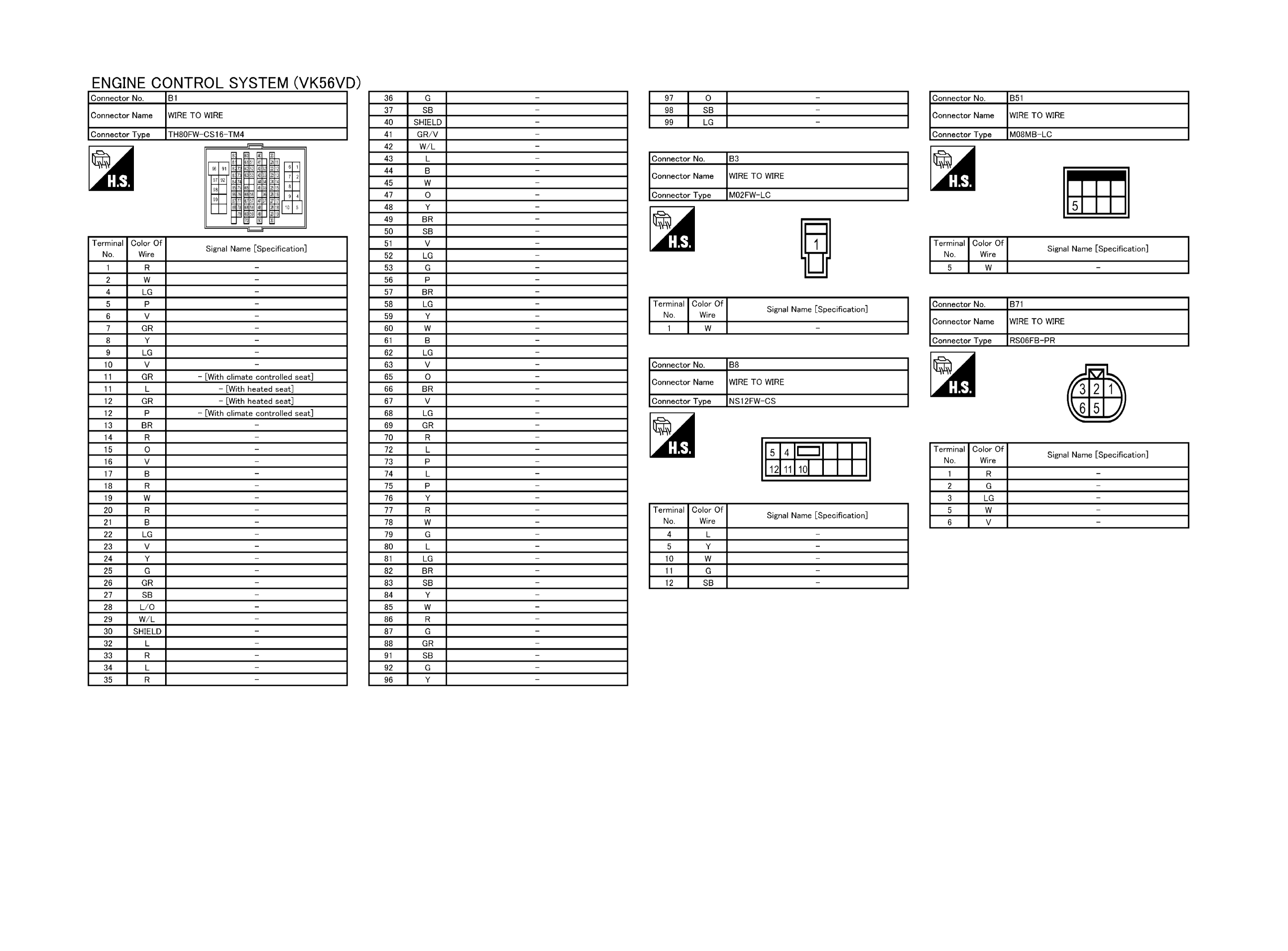

Fig 1: Engine Control System Connector End Views (1 Of 21)
G09493779Courtesy of NISSAN NORTH AMERICA, INC.

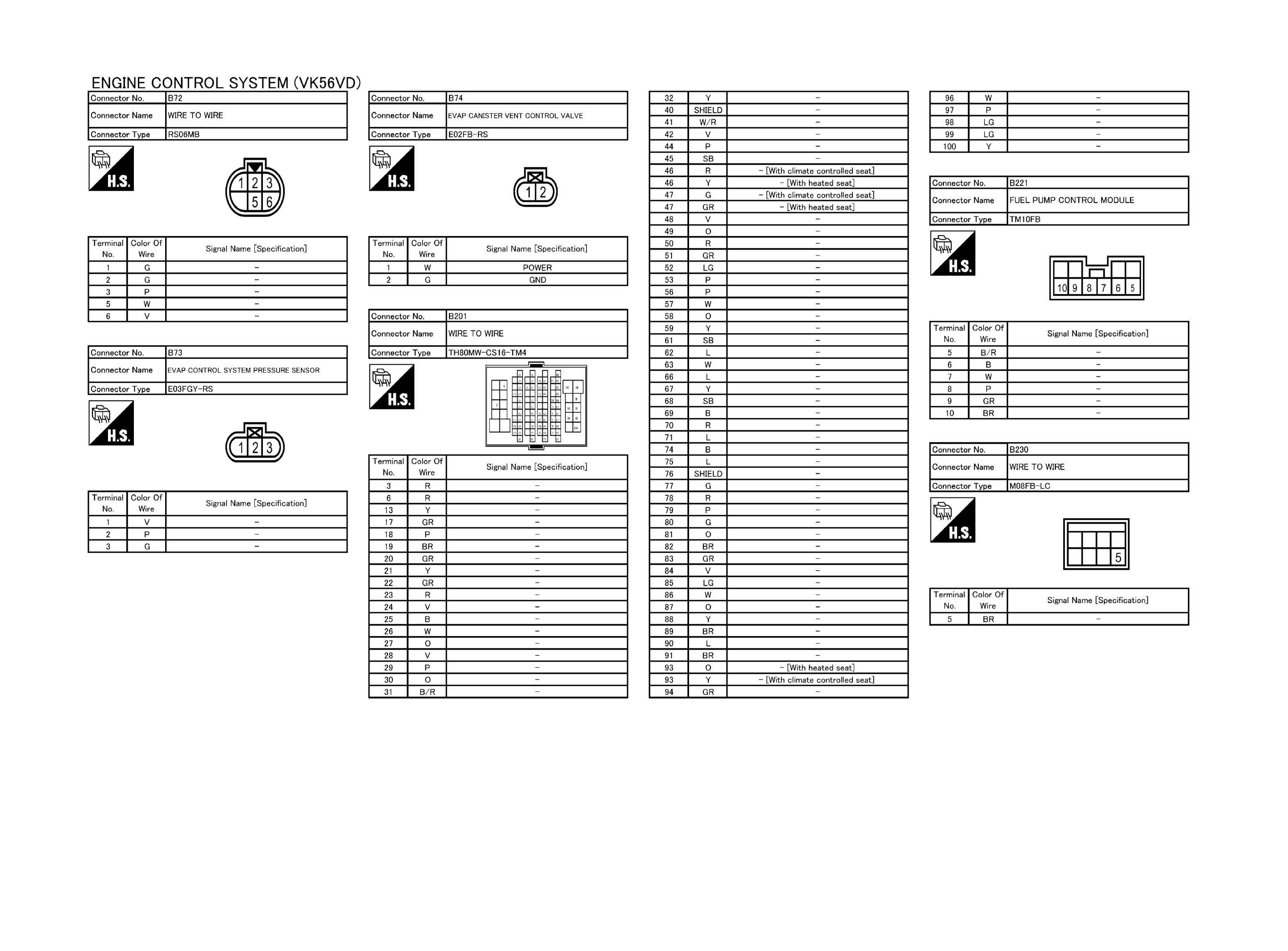

Fig 2: Engine Control System Connector End Views (2 Of 21)
G09493780Courtesy of NISSAN NORTH AMERICA, INC.

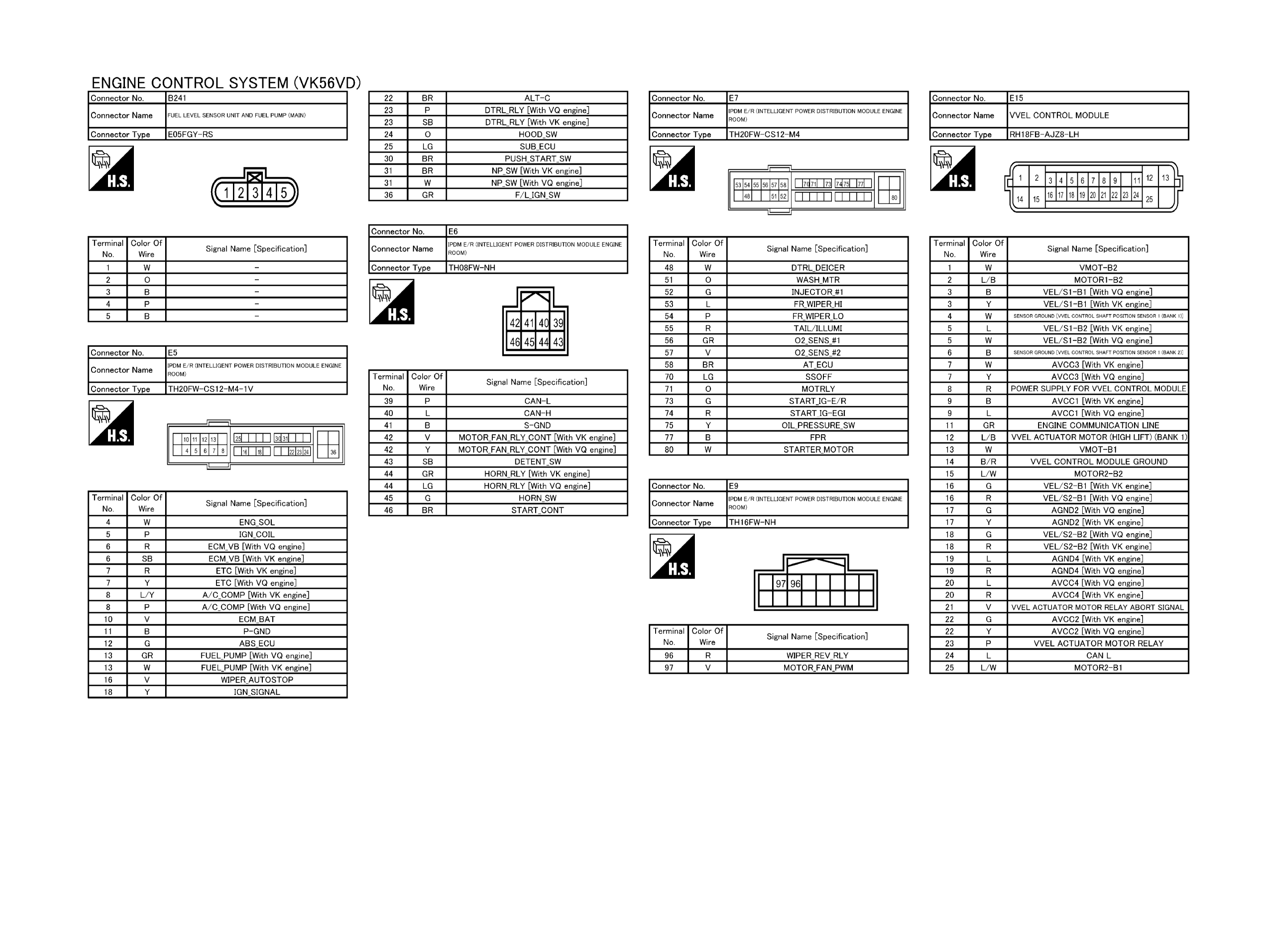

Fig 3: Engine Control System Connector End Views (3 Of 21)
G09493781Courtesy of NISSAN NORTH AMERICA, INC.

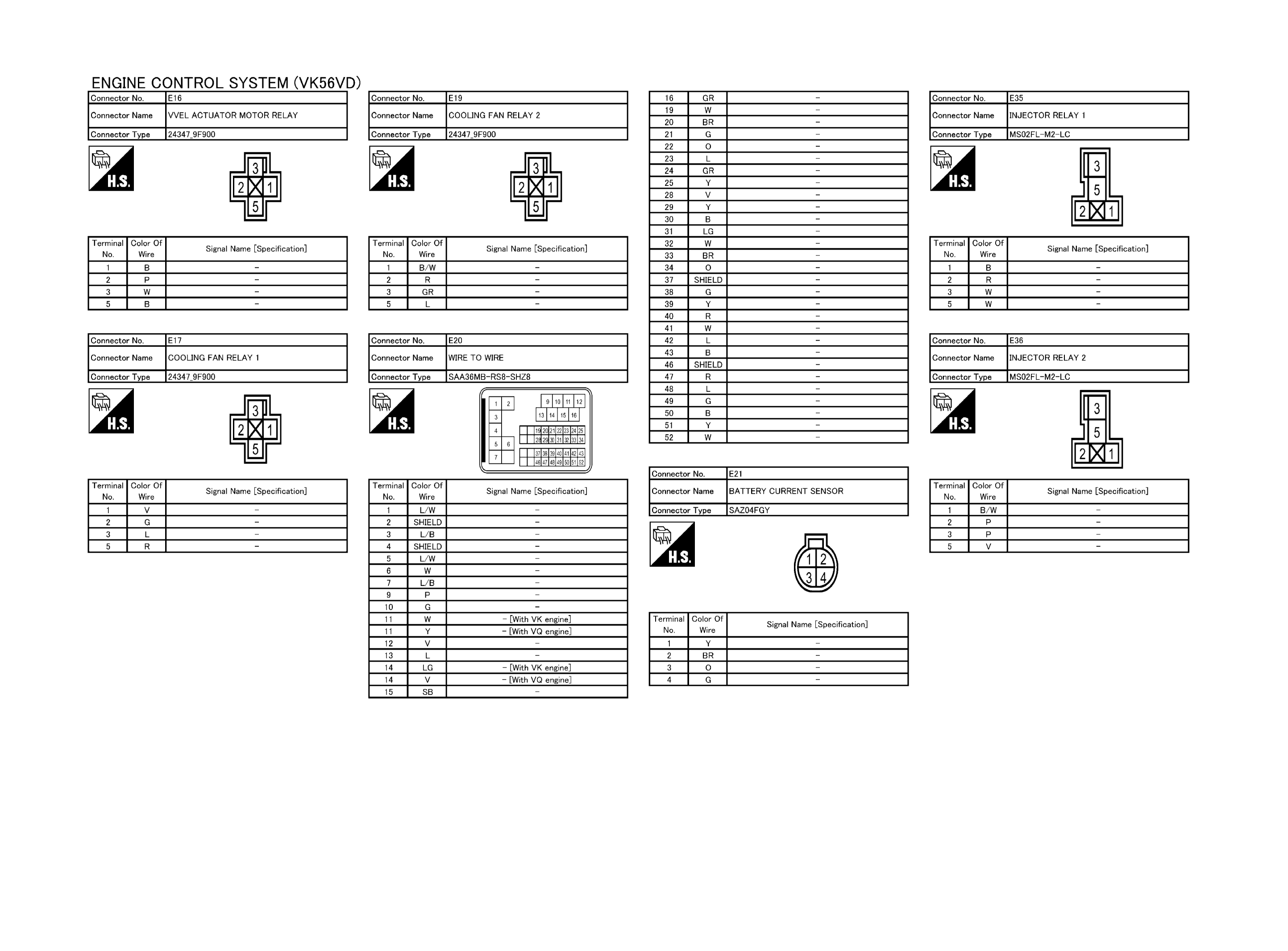

Fig 4: Engine Control System Connector End Views (4 Of 21)
G09493782Courtesy of NISSAN NORTH AMERICA, INC.

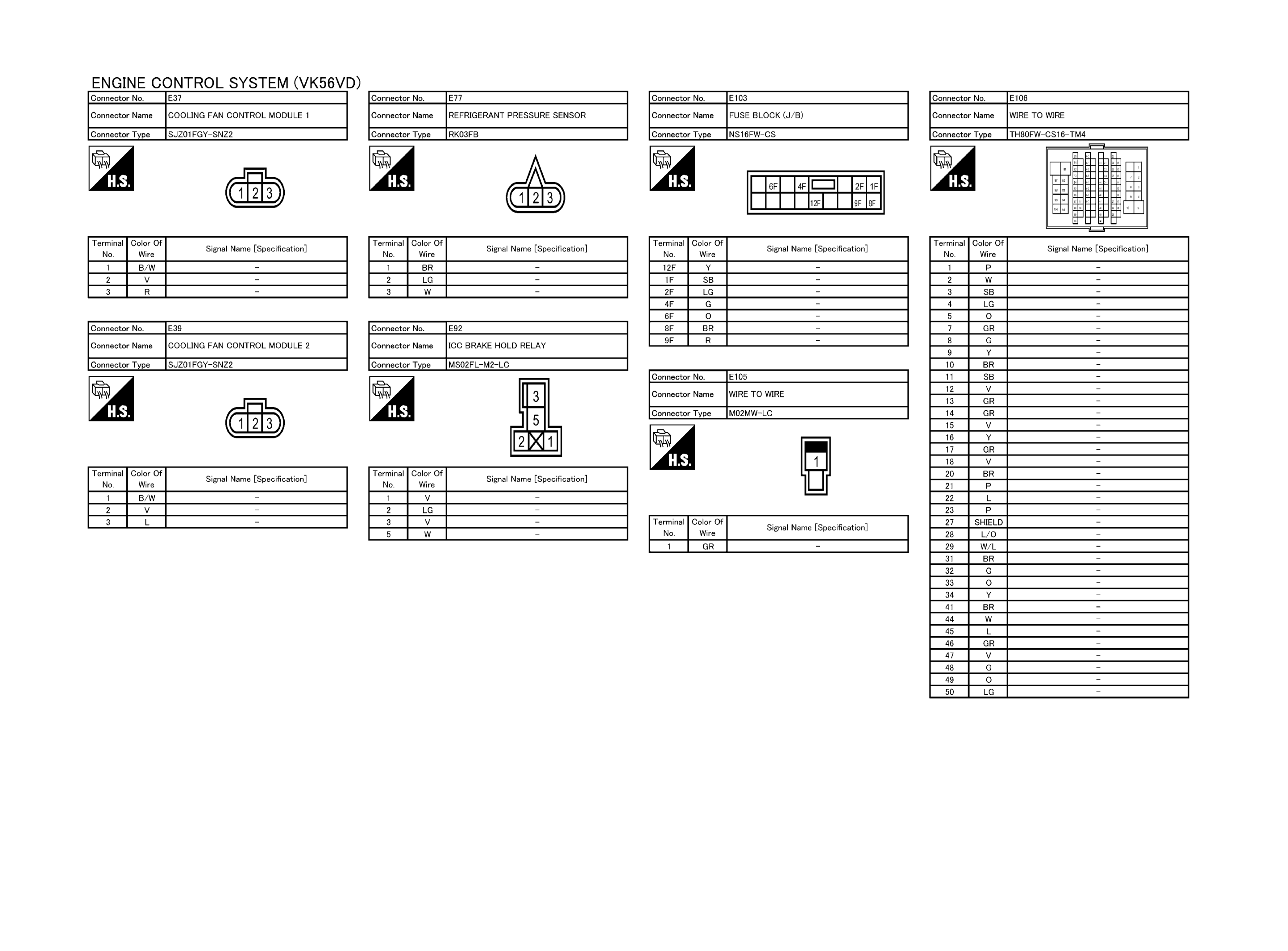

Fig 5: Engine Control System Connector End Views (5 Of 21)
G09493783Courtesy of NISSAN NORTH AMERICA, INC.

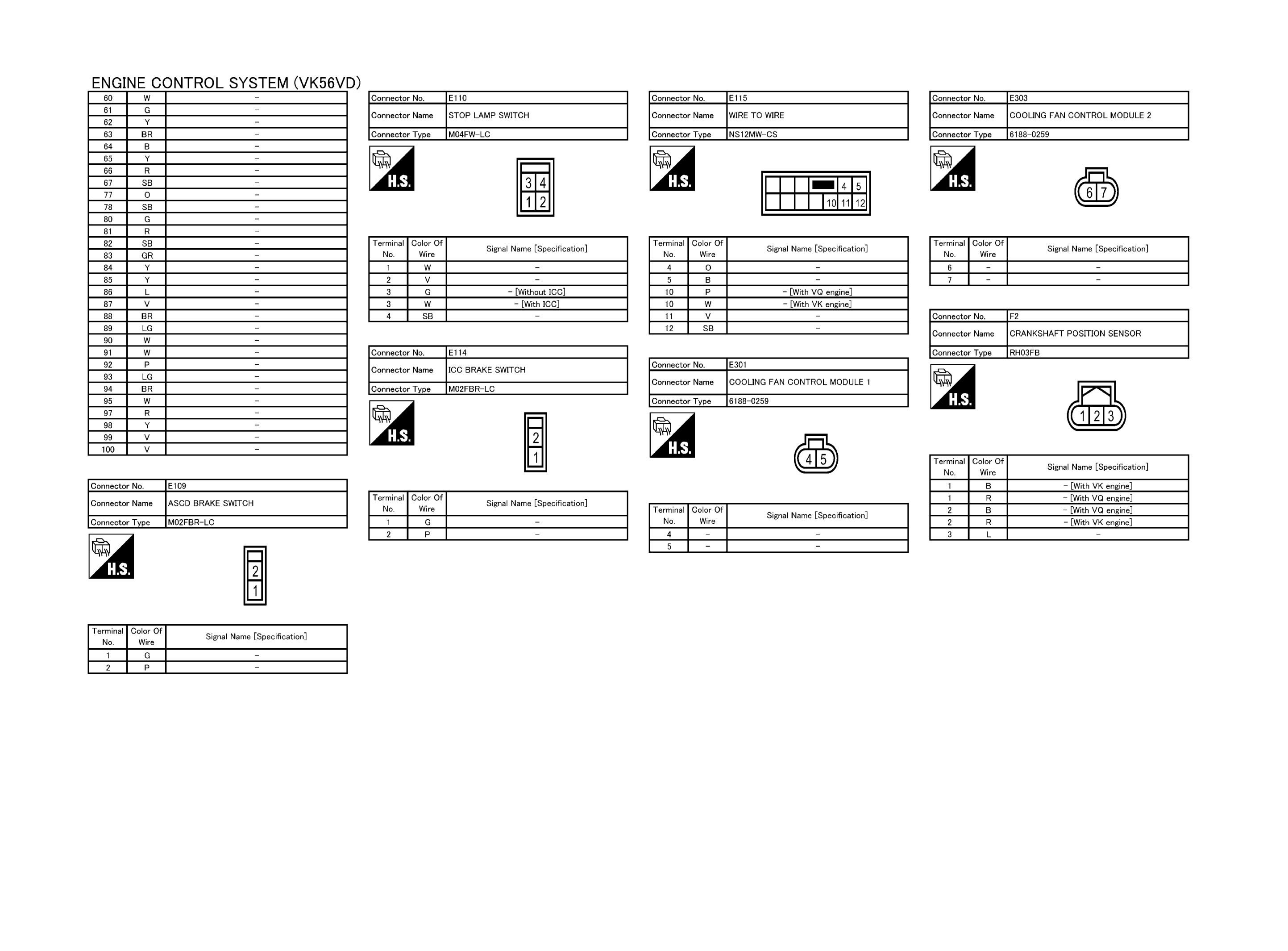

Fig 6: Engine Control System Connector End Views (6 Of 21)
G09493784Courtesy of NISSAN NORTH AMERICA, INC.

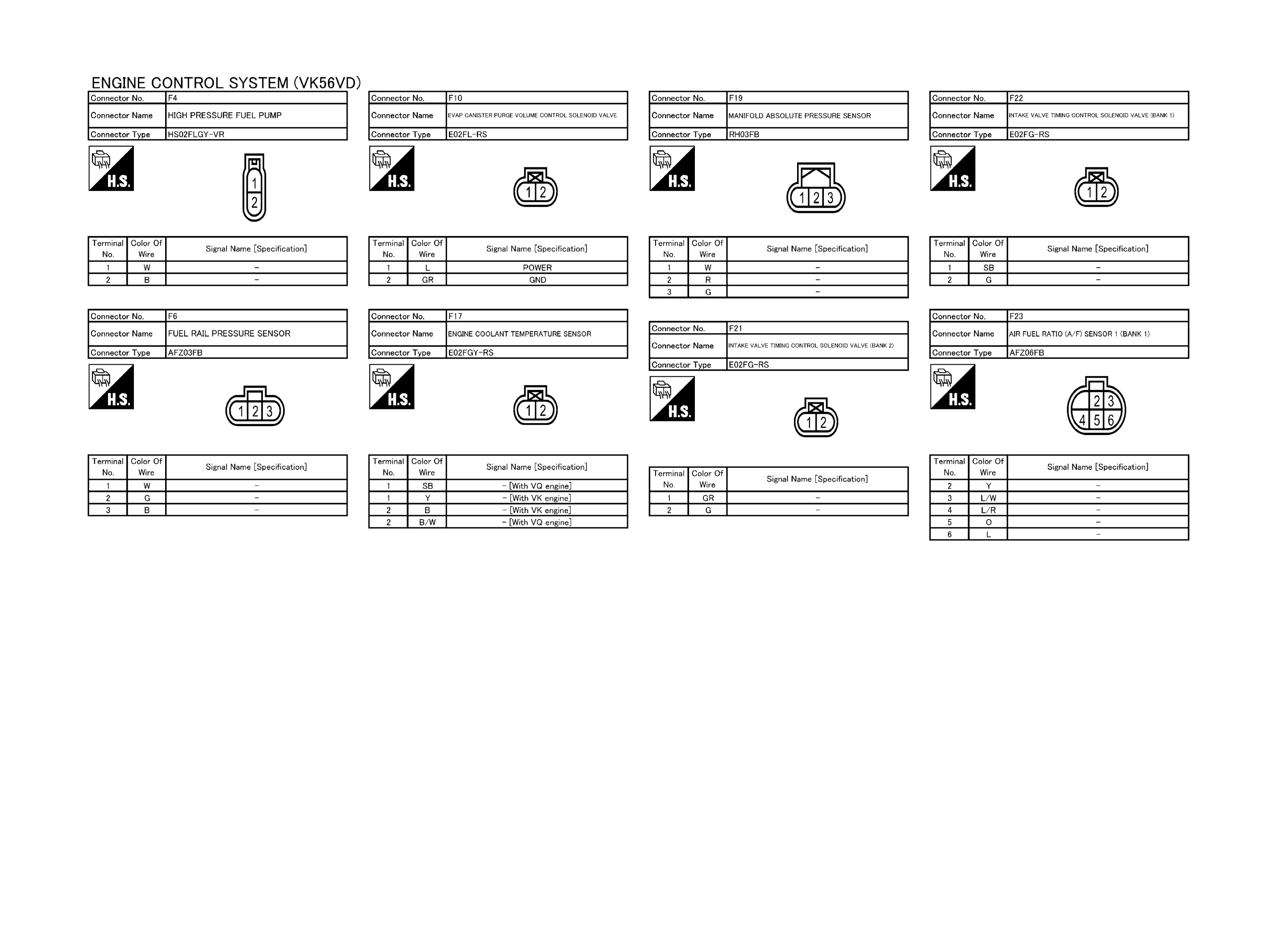

Fig 7: Engine Control System Connector End Views (7 Of 21)
G09493785Courtesy of NISSAN NORTH AMERICA, INC.

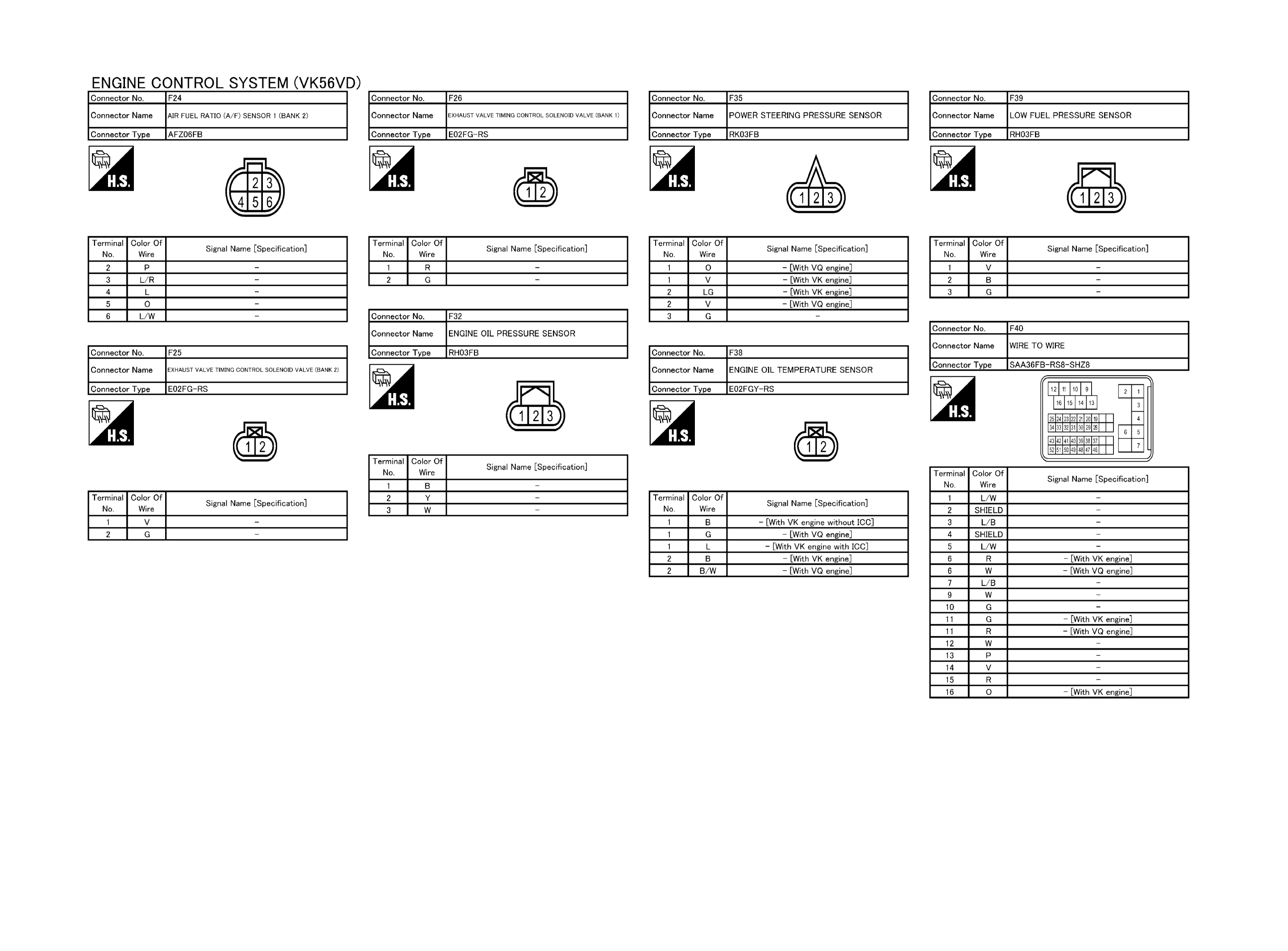

Fig 8: Engine Control System Connector End Views (8 Of 21)
G09493786Courtesy of NISSAN NORTH AMERICA, INC.

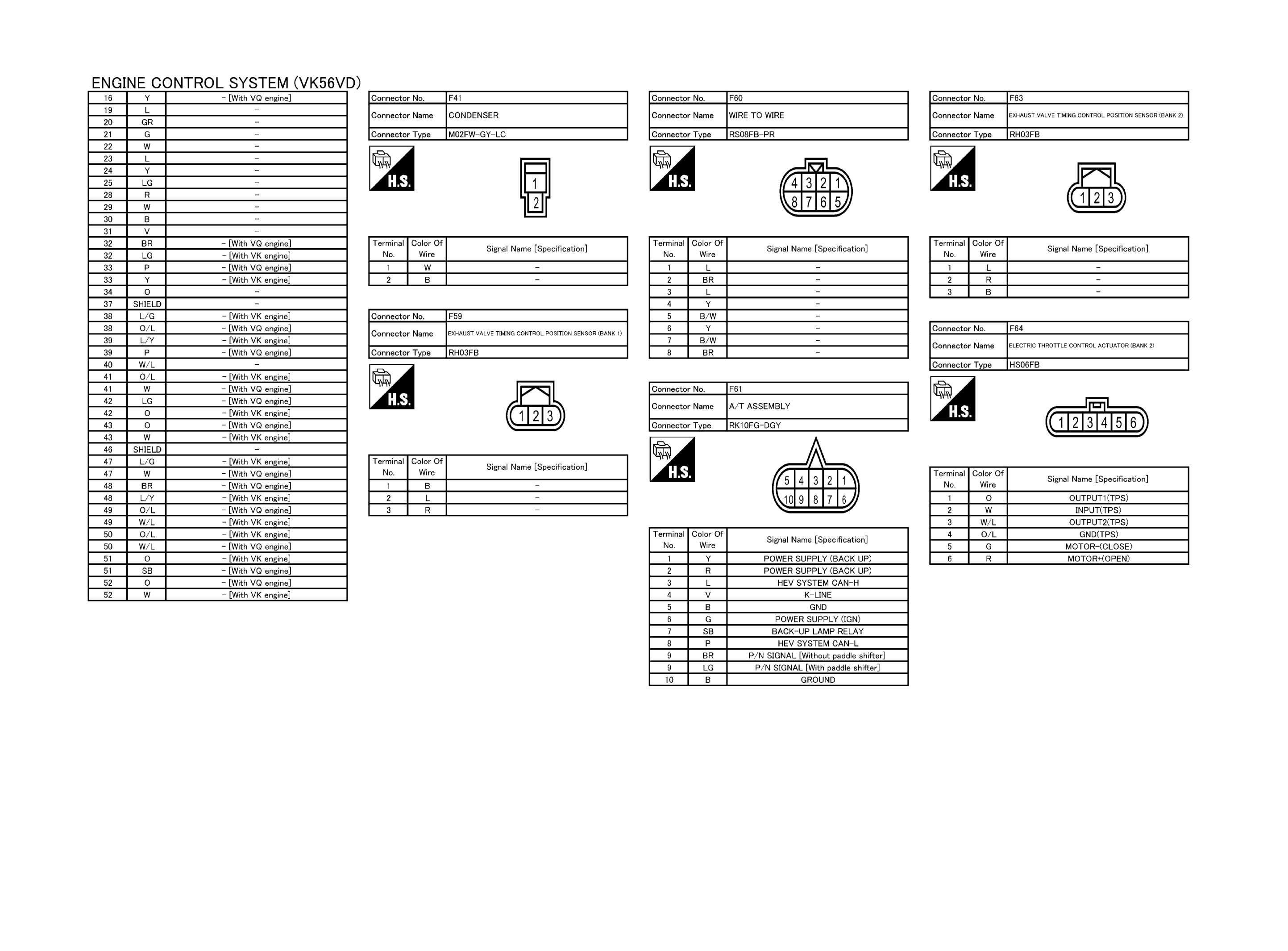

Fig 9: Engine Control System Connector End Views (9 Of 21)
G09493787Courtesy of NISSAN NORTH AMERICA, INC.

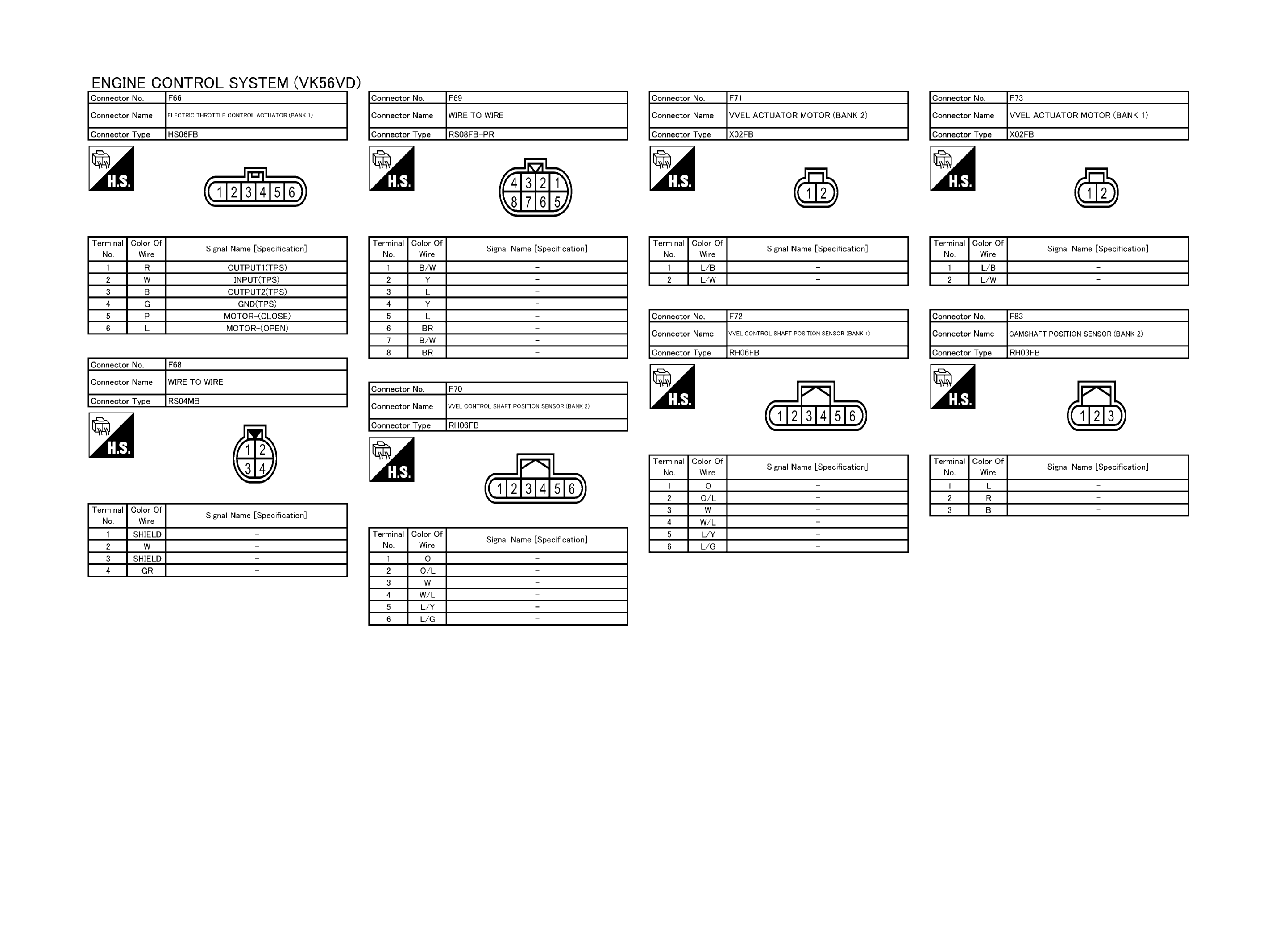

Fig 10: Engine Control System Connector End Views (10 Of 21)
G09493788Courtesy of NISSAN NORTH AMERICA, INC.

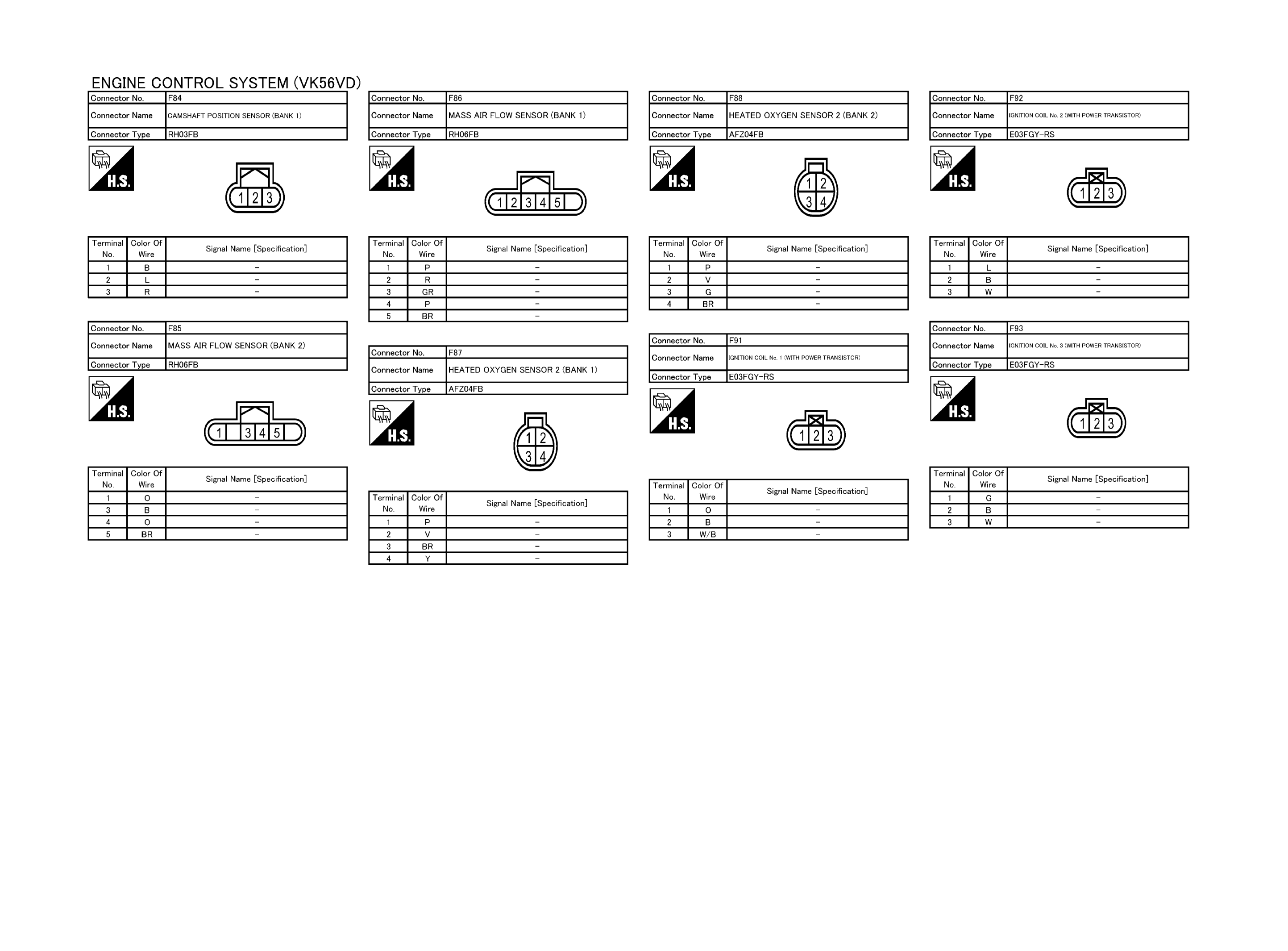

Fig 11: Engine Control System Connector End Views (11 Of 21)
G09493789Courtesy of NISSAN NORTH AMERICA, INC.

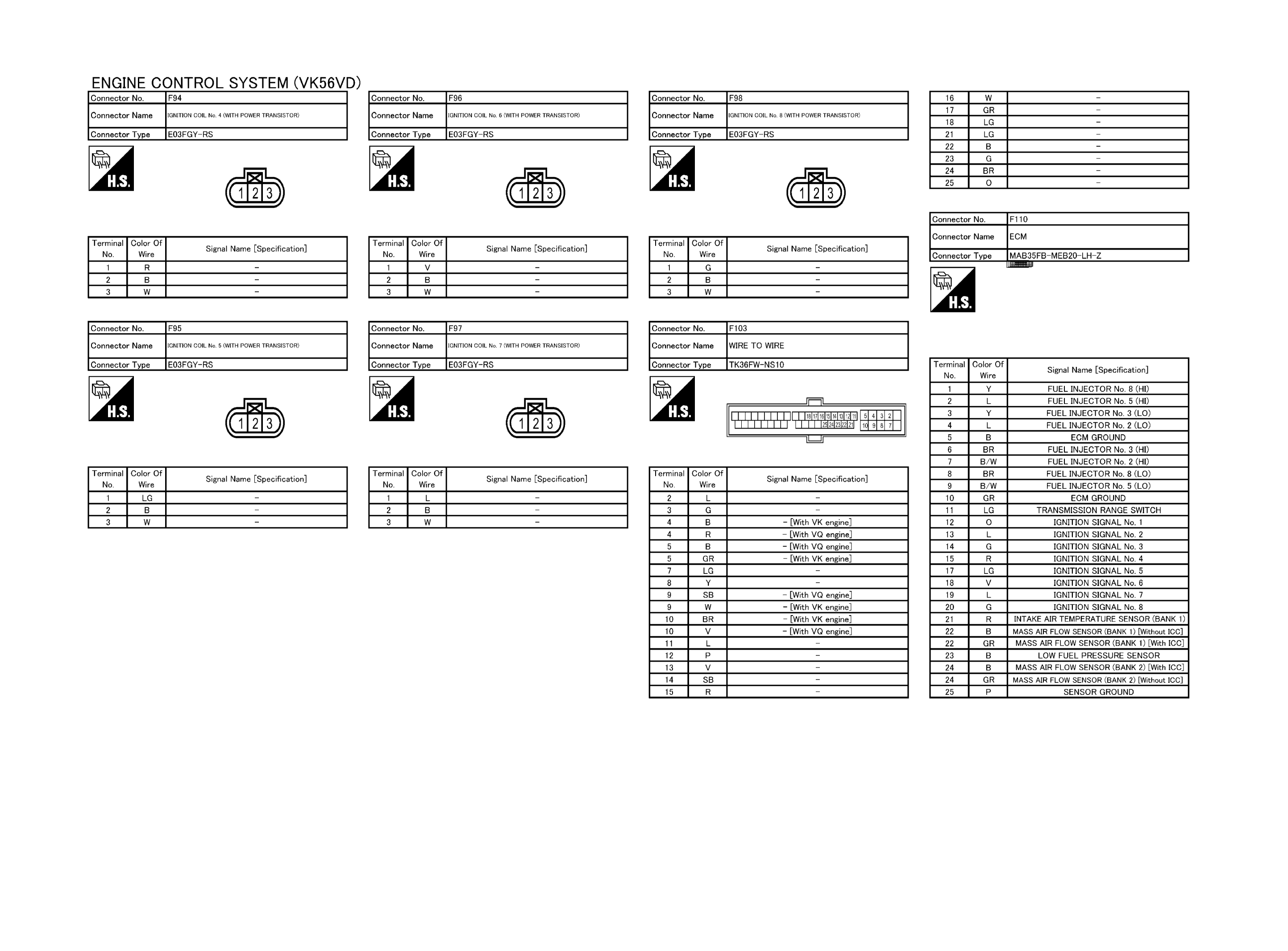

Fig 12: Engine Control System Connector End Views (12 Of 21)
G09493790Courtesy of NISSAN NORTH AMERICA, INC.

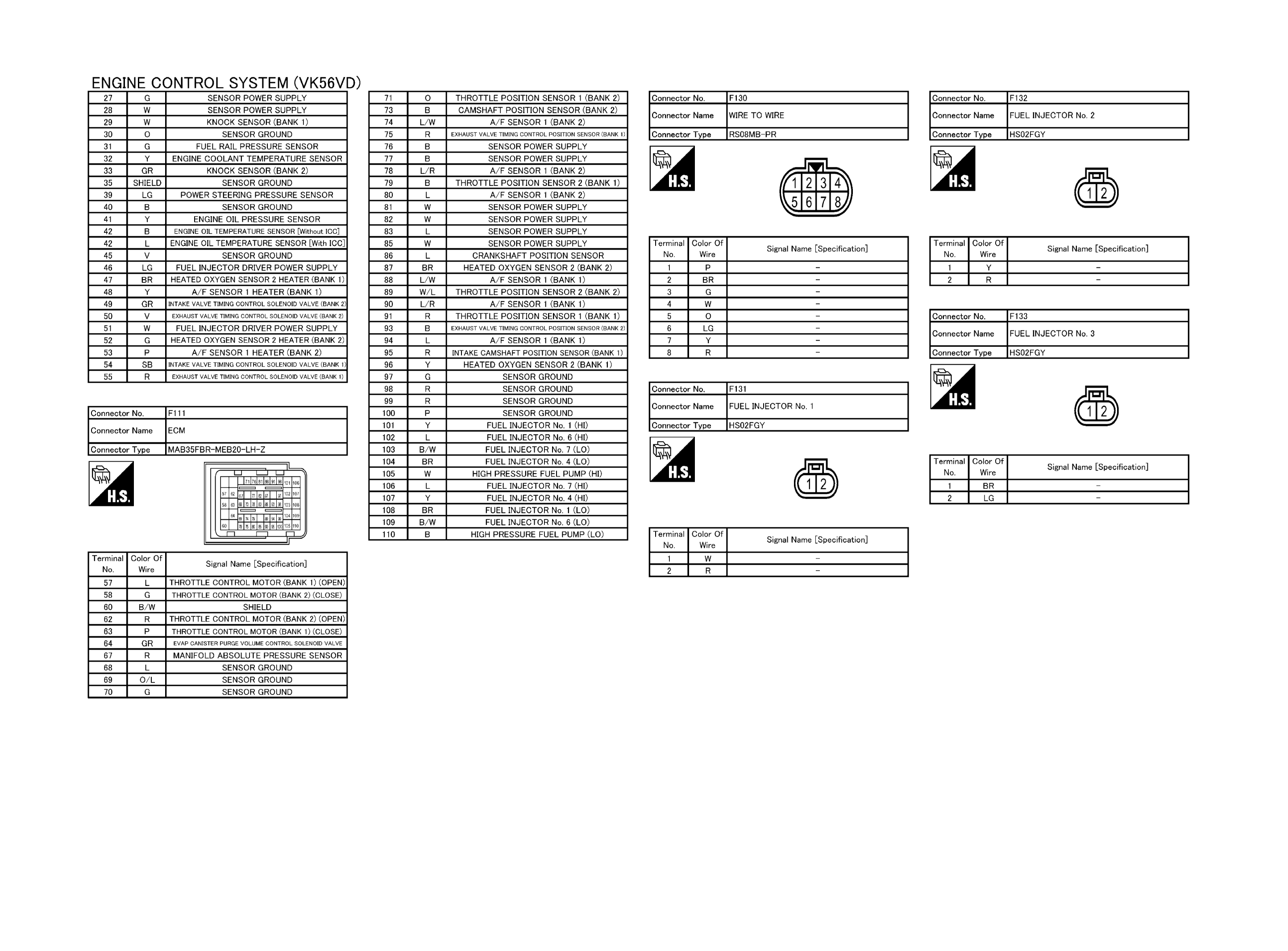

Fig 13: Engine Control System Connector End Views (13 Of 21)
G09493791Courtesy of NISSAN NORTH AMERICA, INC.

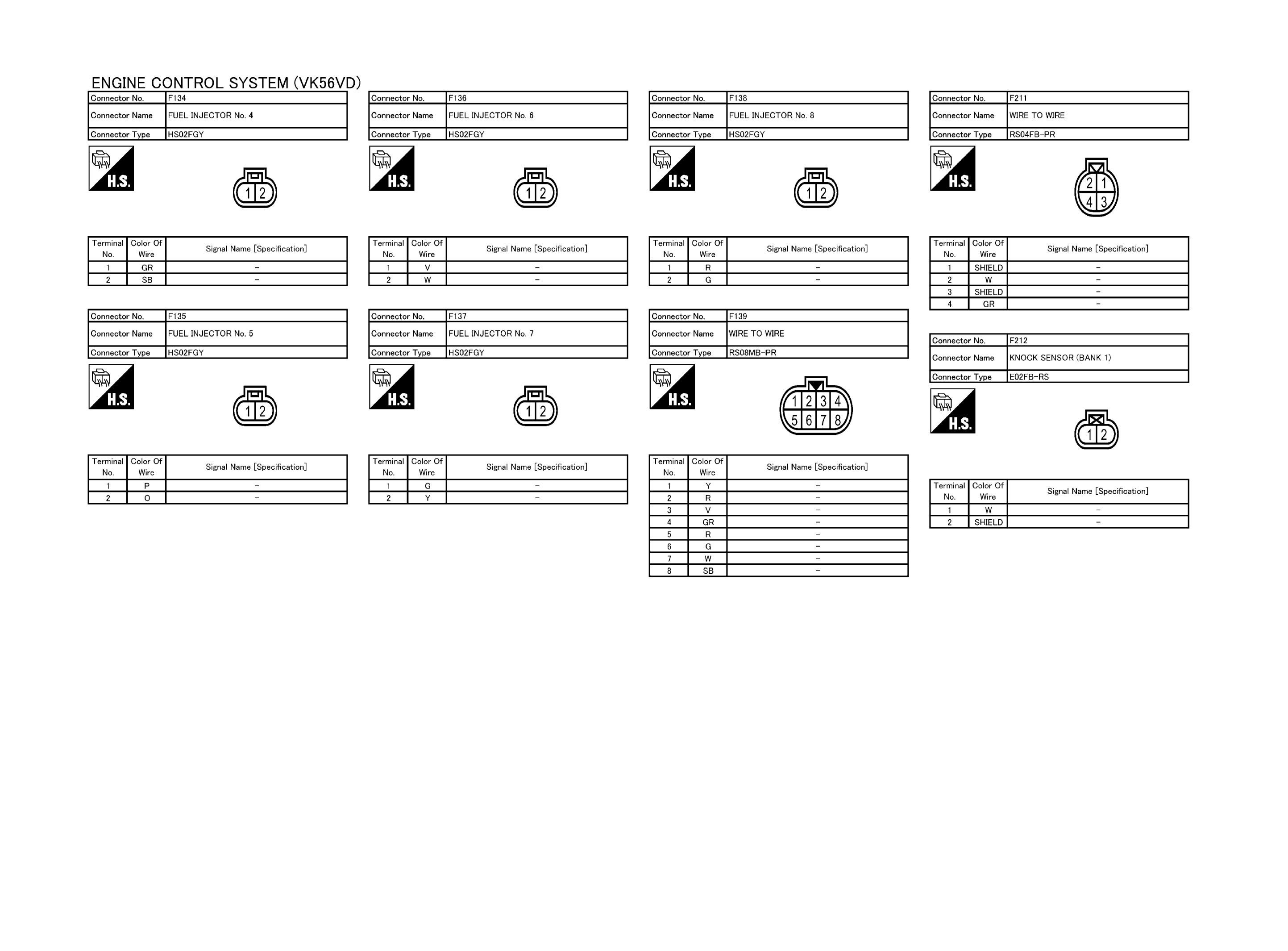

Fig 14: Engine Control System Connector End Views (14 Of 21)
G09493792Courtesy of NISSAN NORTH AMERICA, INC.

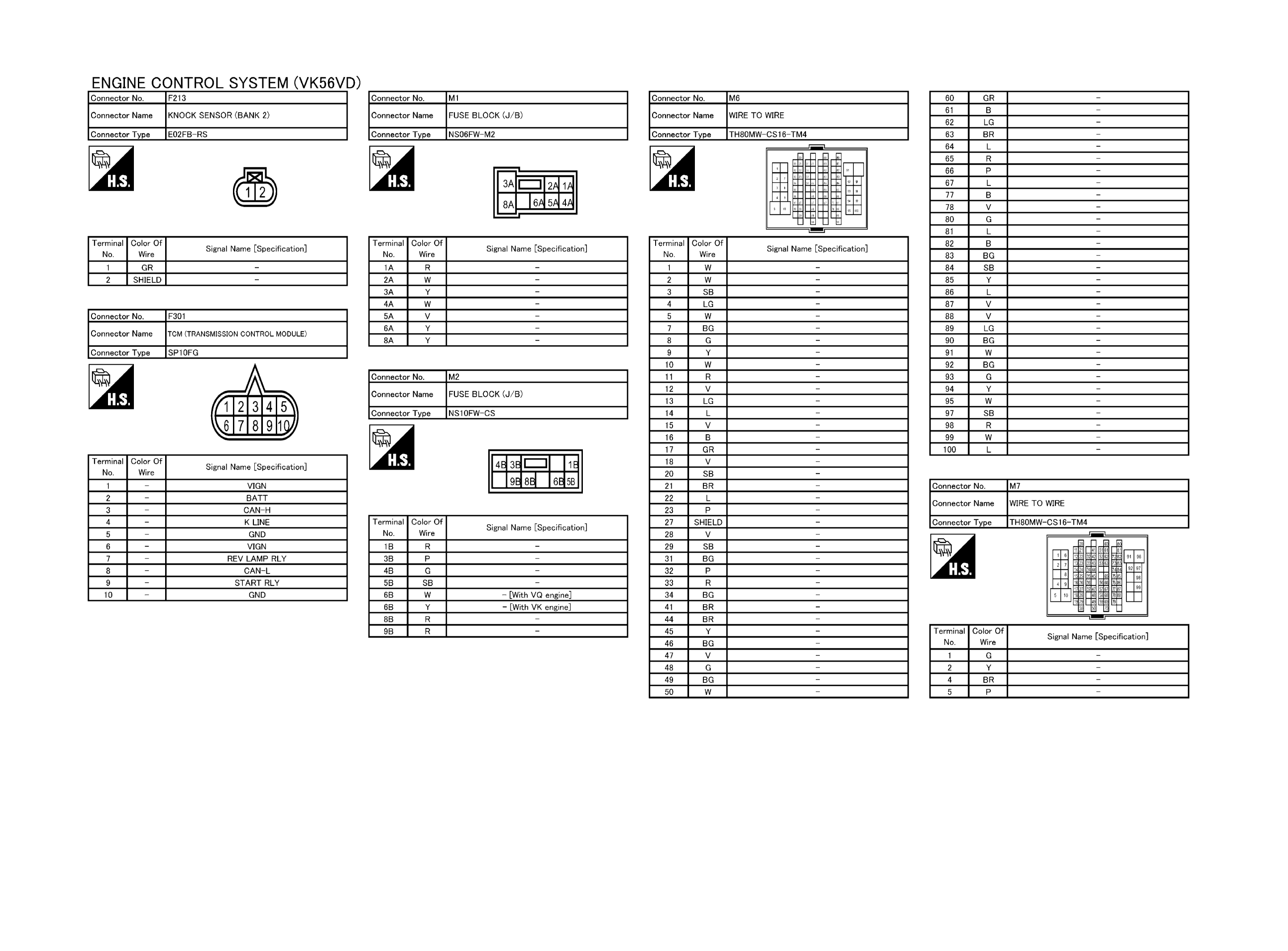

Fig 15: Engine Control System Connector End Views (15 Of 21)
G09493793Courtesy of NISSAN NORTH AMERICA, INC.

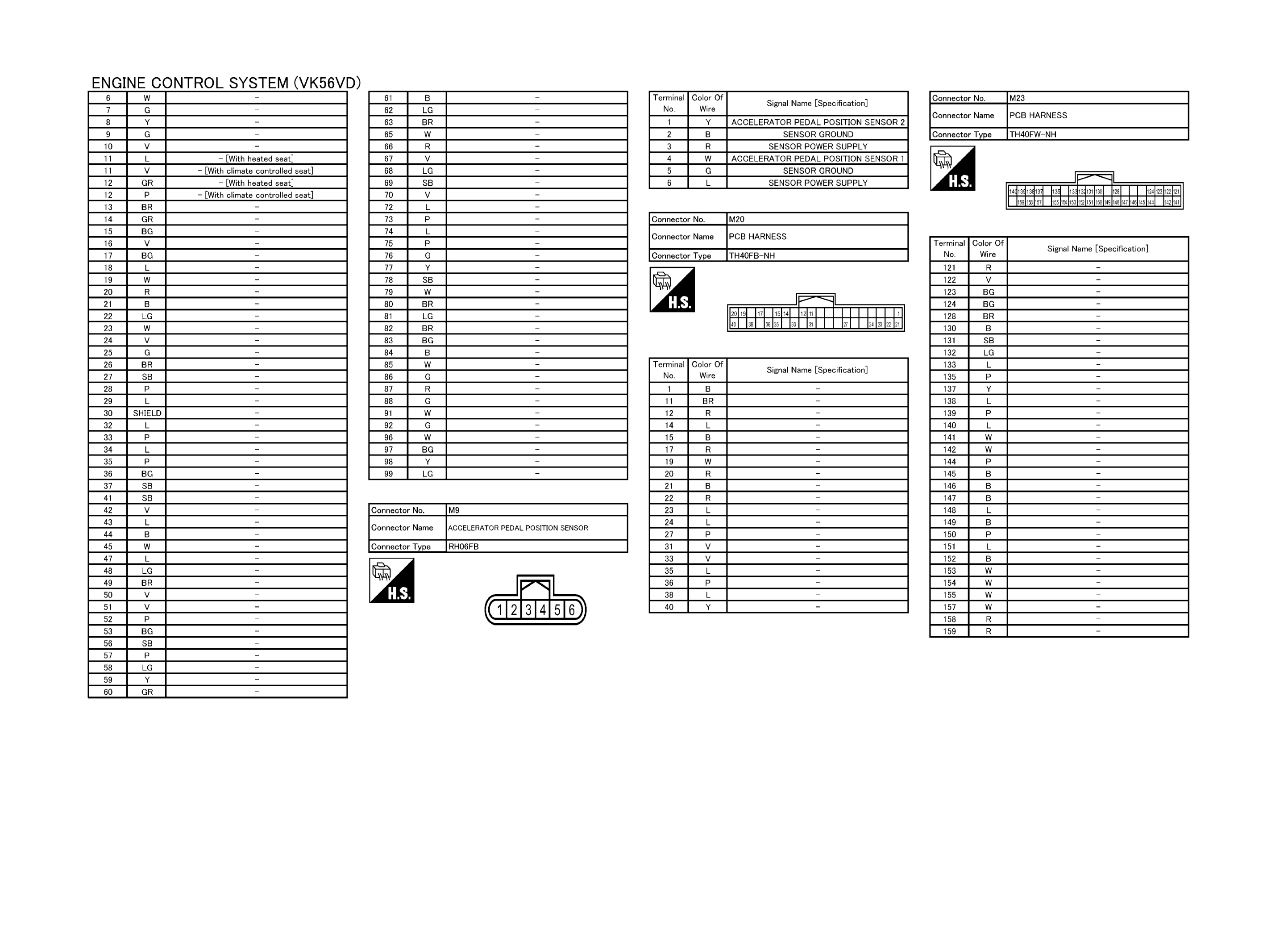

Fig 16: Engine Control System Connector End Views (16 Of 21)
G09493794Courtesy of NISSAN NORTH AMERICA, INC.

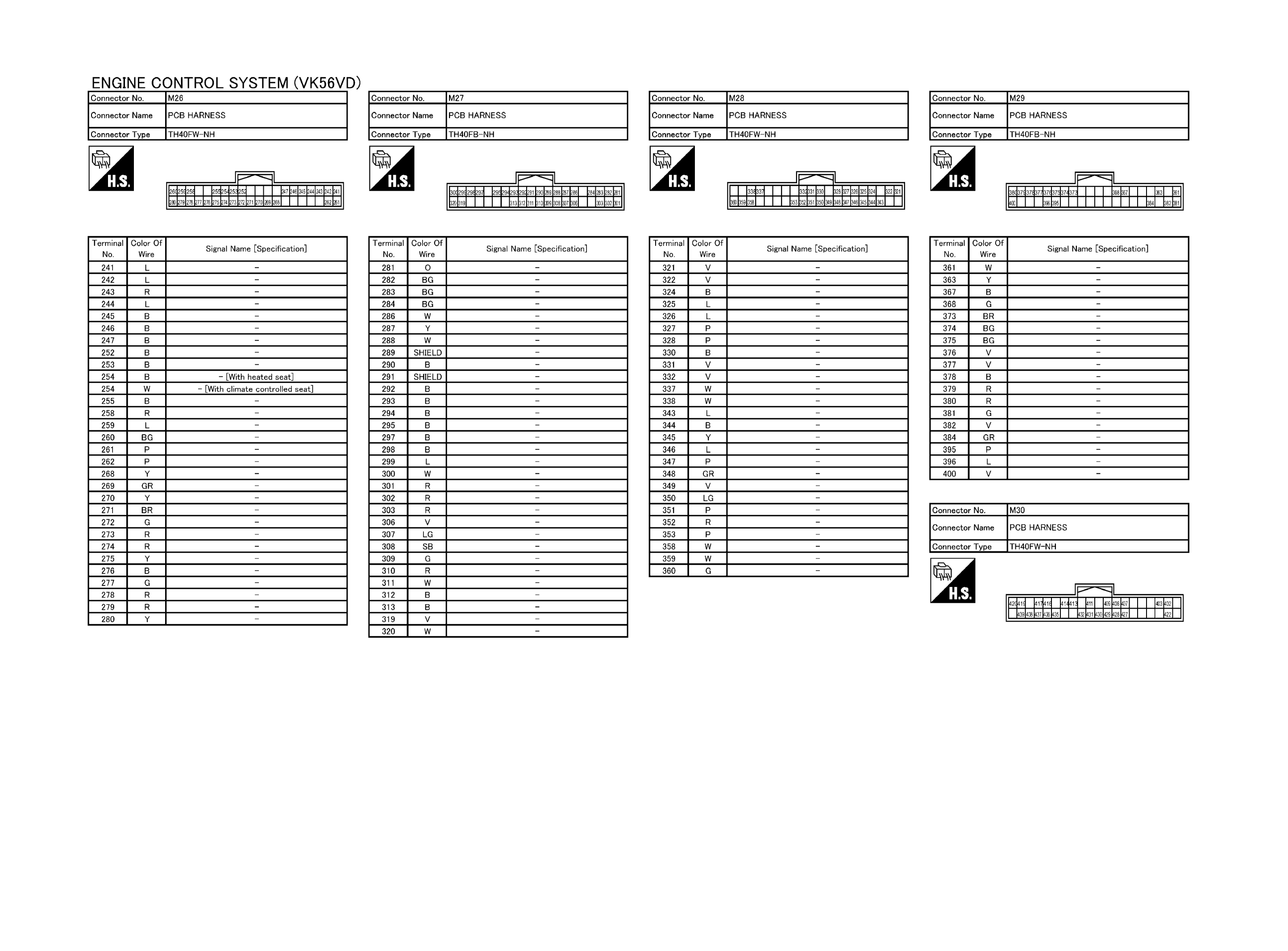

Fig 17: Engine Control System Connector End Views (17 Of 21)
G09493795Courtesy of NISSAN NORTH AMERICA, INC.

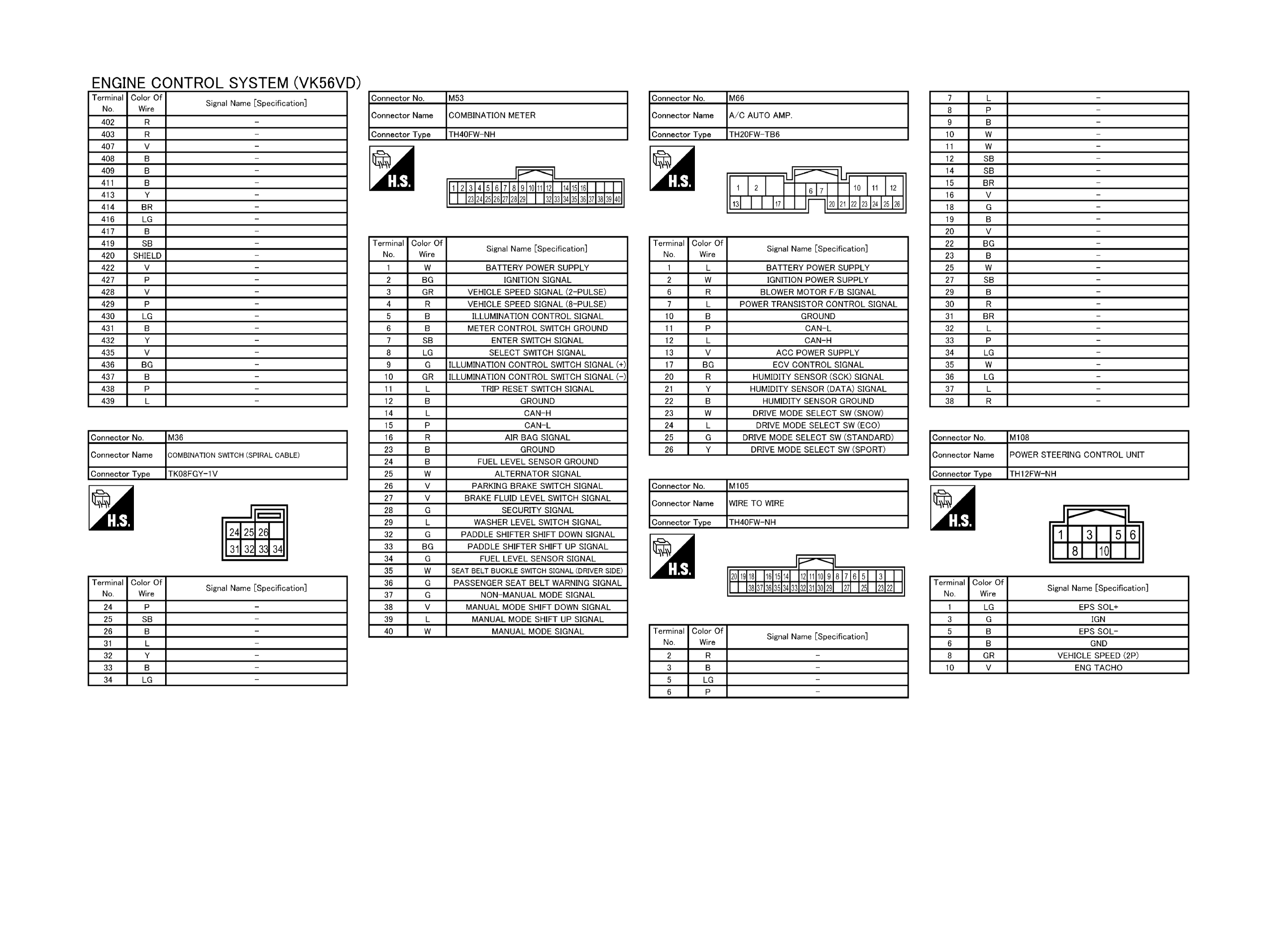

Fig 18: Engine Control System Connector End Views (18 Of 21)
G09493796Courtesy of NISSAN NORTH AMERICA, INC.

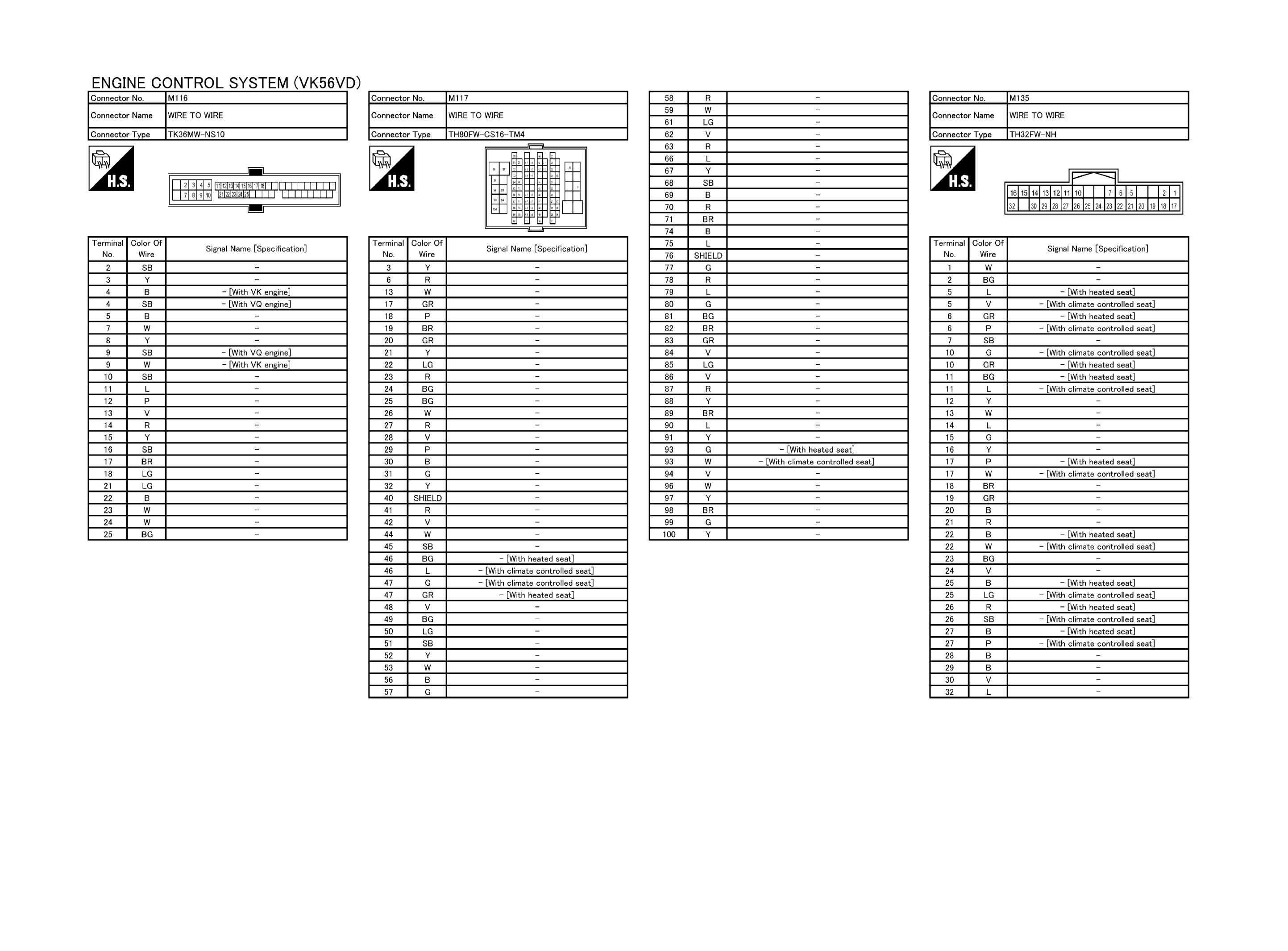

Fig 19: Engine Control System Connector End Views (19 Of 21)
G09493797Courtesy of NISSAN NORTH AMERICA, INC.

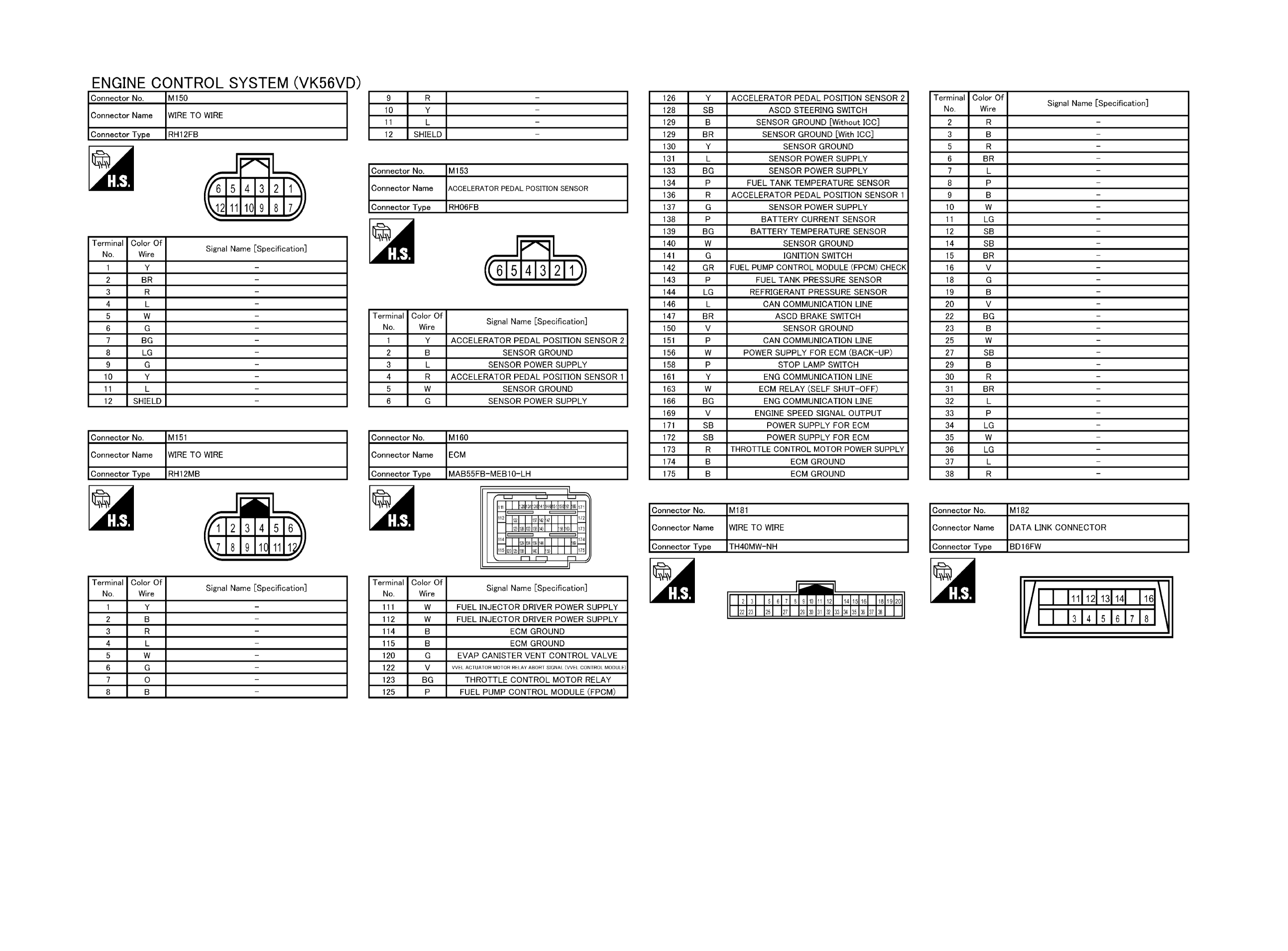

Fig 20: Engine Control System Connector End Views (20 Of 21)
G09493798Courtesy of NISSAN NORTH AMERICA, INC.

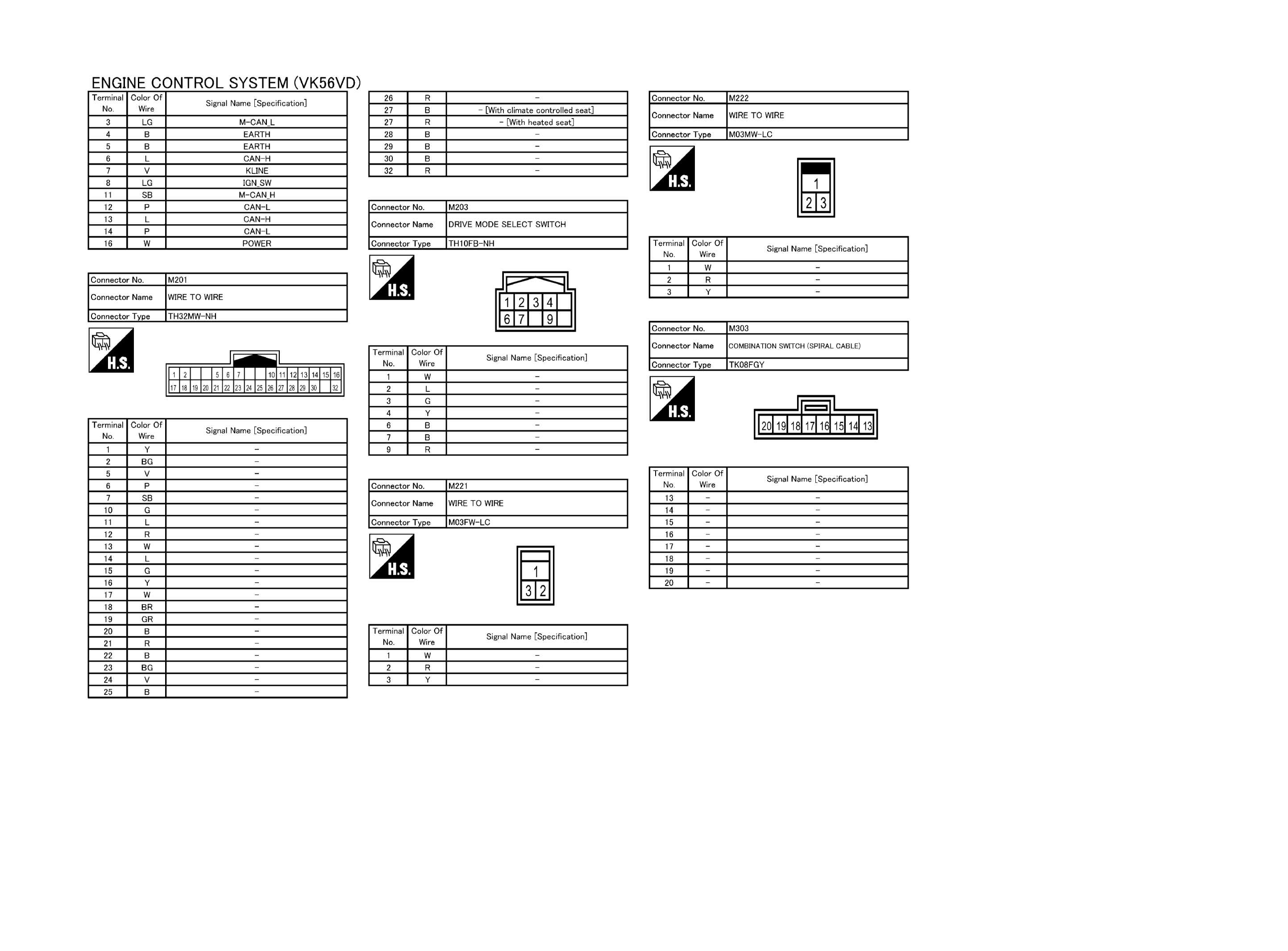

Fig 21: Engine Control System Connector End Views (21 Of 21)
G09493799Courtesy of NISSAN NORTH AMERICA, INC.
