Section 44 (Body Control System (Hybrid))
>>
System Description
>>
System
>>
Signal Buffer System
>>
SIGNAL BUFFER SYSTEM: System Diagram
SIGNAL BUFFER SYSTEM: System Diagram
WARNING:
This page is about a different variant/trim than selected.

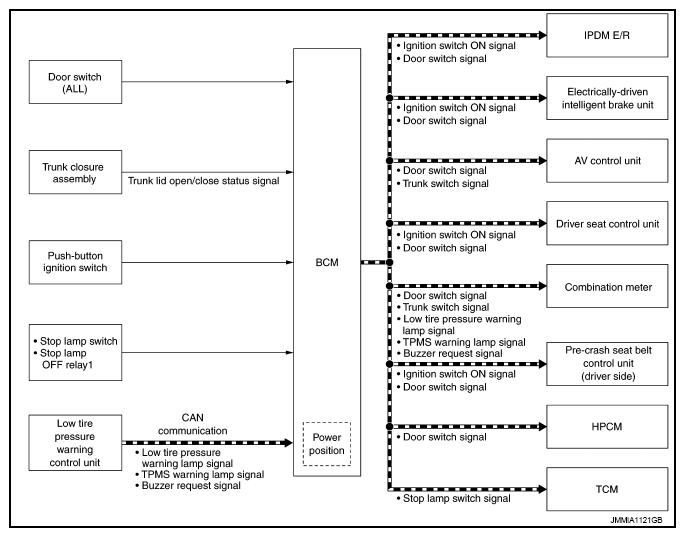

Fig 1: Signal Buffer - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
