Section 44 (Body Control System (Hybrid))
>>
System Description
>>
System
>>
Combination Switch Reading System
>>
COMBINATION SWITCH READING SYSTEM: System Diagram
COMBINATION SWITCH READING SYSTEM: System Diagram
WARNING:
This page is about a different variant/trim than selected.

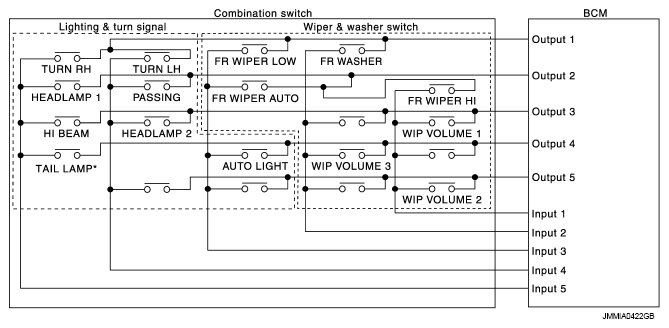

Fig 1: Combination Switch Reading - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
*: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
