ENGINE CONTROL SYSTEM: System Description
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

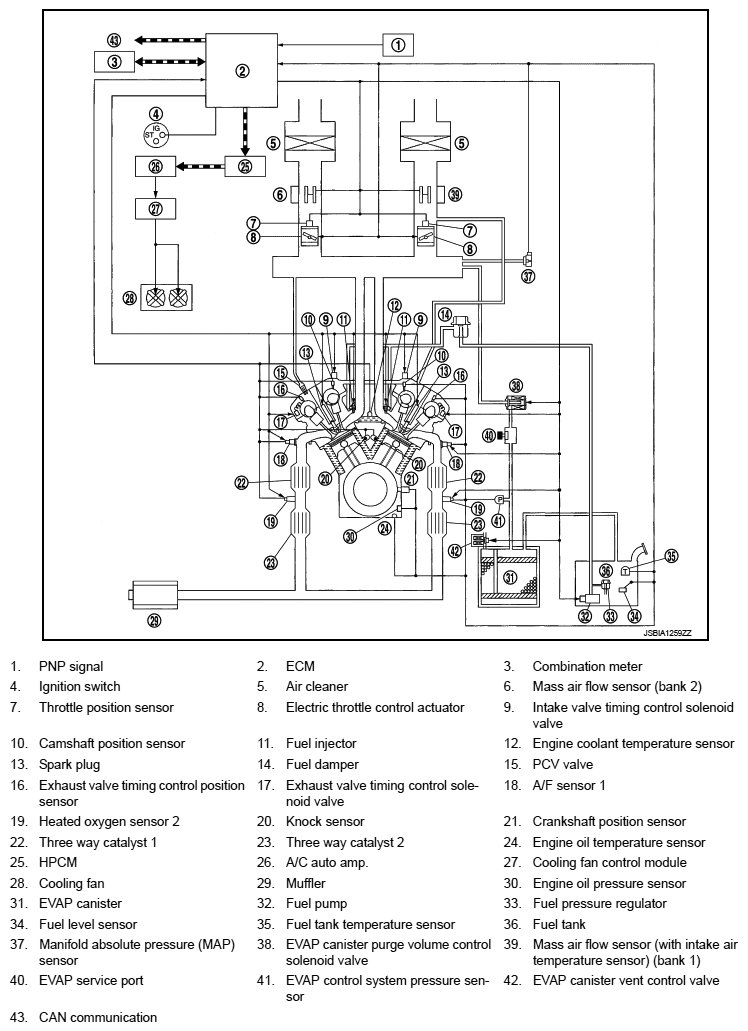

Fig 1: Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
