Exploded View

WARNING: This page is about a different variant/trim than selected.

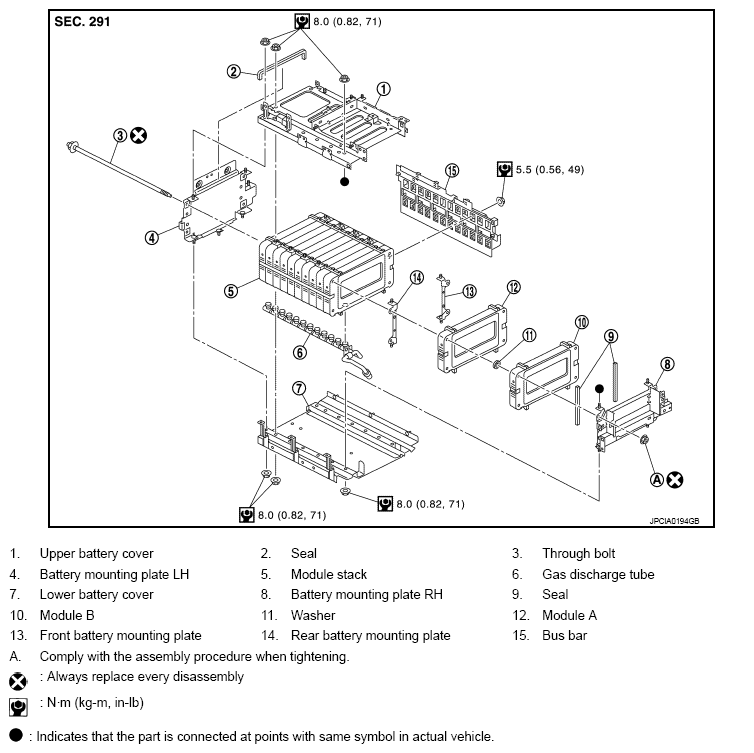

Fig 1: Exploded View Of Li-ion Battery With Torque Specifications (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

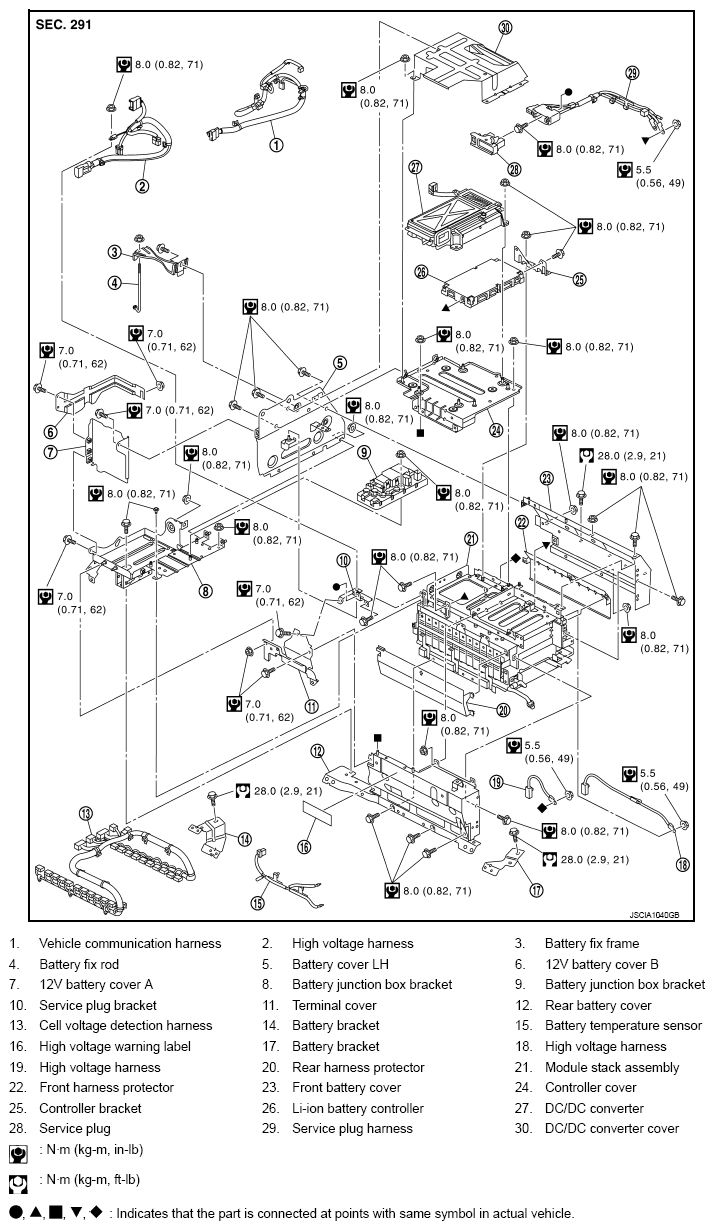

Fig 2: Exploded View Of Li-ion Battery With Torque Specifications (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

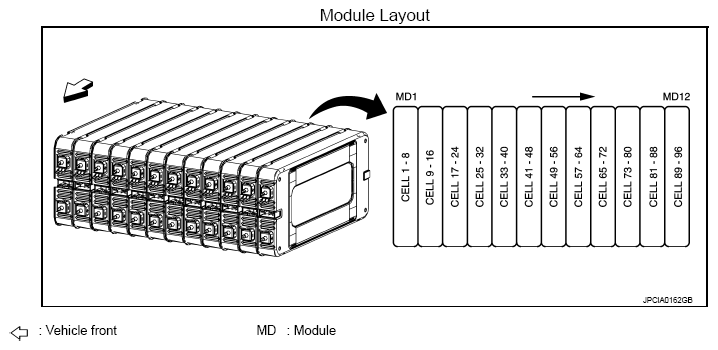

Fig 3: Li-ion Battery Controller Module Layout

Courtesy of NISSAN NORTH AMERICA, INC.
