Engine, Motor

WARNING: This page is about a different variant/trim than selected.

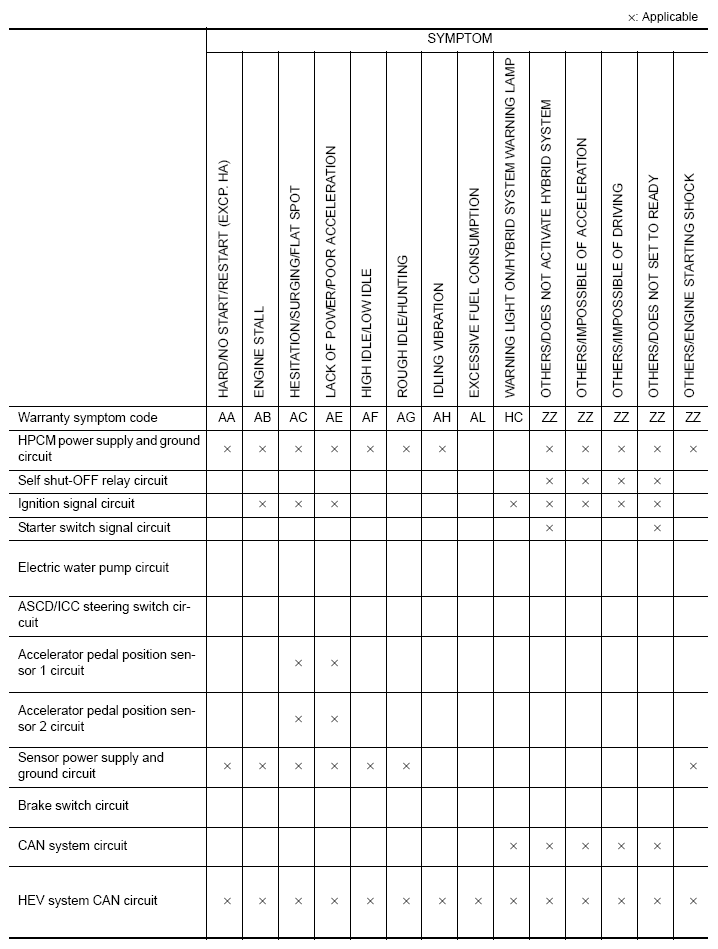

Fig 1: Hybrid Control System Symptom Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

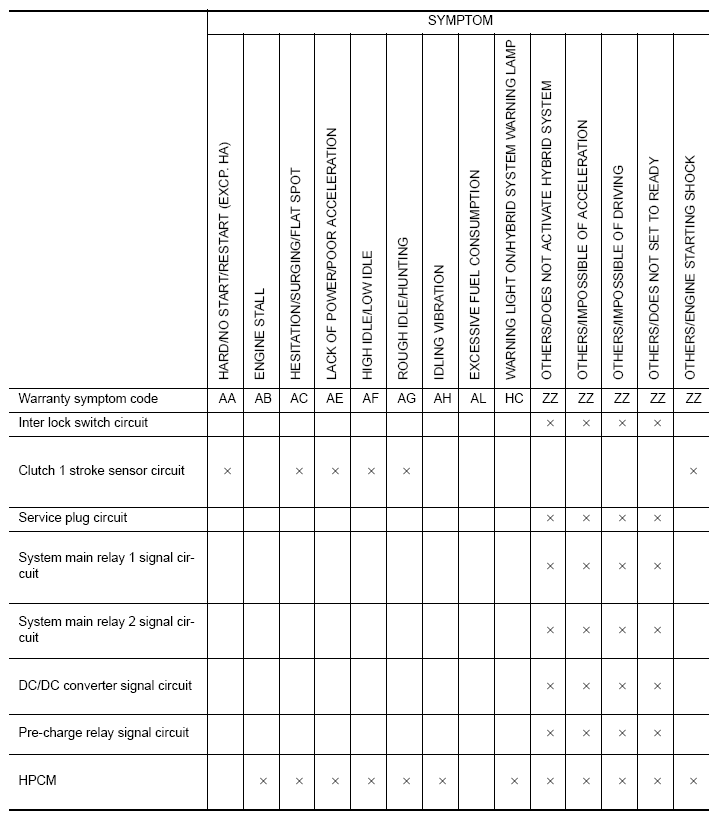

Fig 2: Hybrid Control System Symptom Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

TM/CLUTCH, CHASSIS/BRAKE/STEERING, AIR CONDITIONING, ELECTRICAL

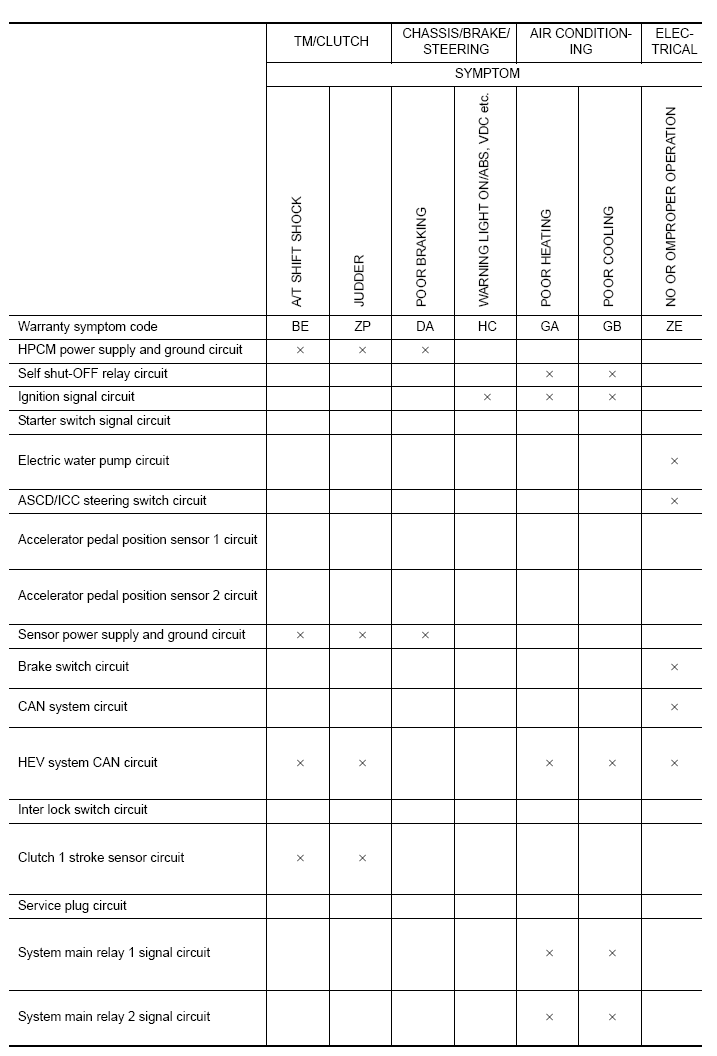

Fig 3: TM/Clutch, Chassis/Brake/Steering, Air Conditioning, Electrical Symptom Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

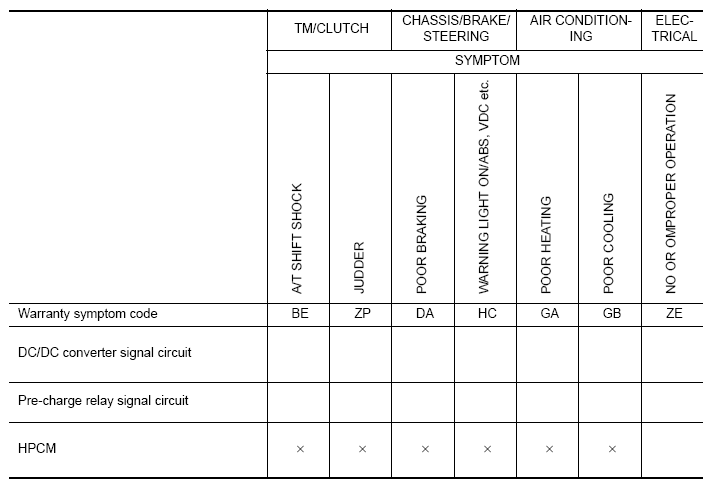

Fig 4: TM/Clutch, Chassis/Brake/Steering, Air Conditioning, Electrical Symptom Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
