Component Parts Location

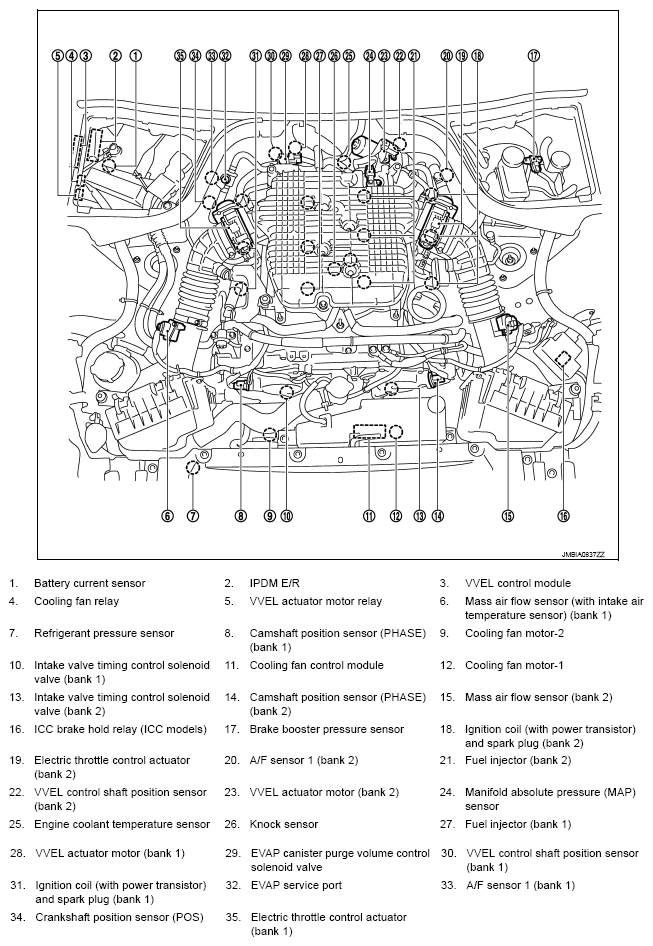

Fig 1: Fuel Filler Cap Warning System Component Parts Location (1 Of 21)

G09470869

Courtesy of NISSAN NORTH AMERICA, INC.

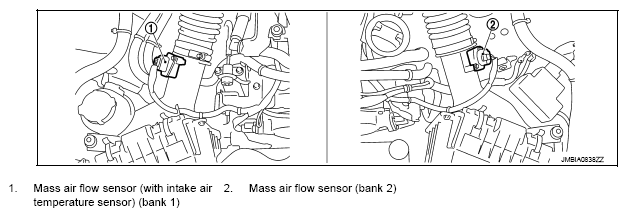

Fig 2: Fuel Filler Cap Warning System Component Parts Location (2 Of 21)

G09470870

Courtesy of NISSAN NORTH AMERICA, INC.

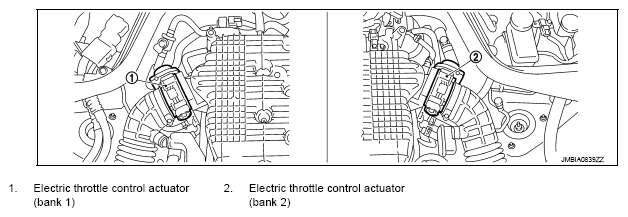

Fig 3: Fuel Filler Cap Warning System Component Parts Location (3 Of 21)

G09470871

Courtesy of NISSAN NORTH AMERICA, INC.

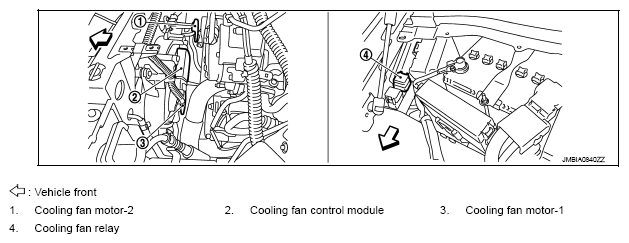

Fig 4: Fuel Filler Cap Warning System Component Parts Location (4 Of 21)

G09470872

Courtesy of NISSAN NORTH AMERICA, INC.

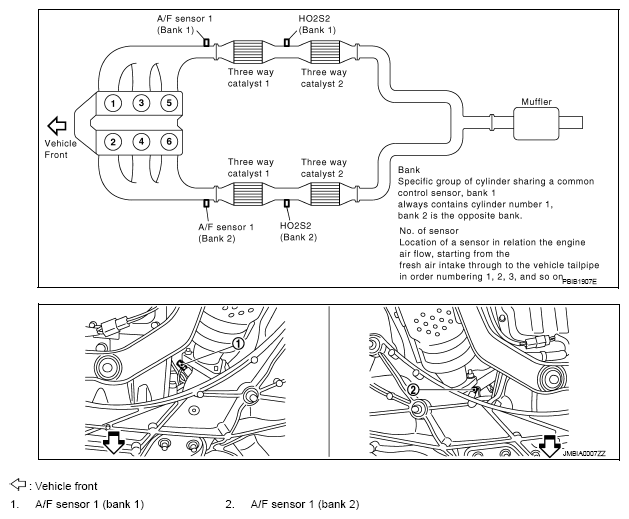

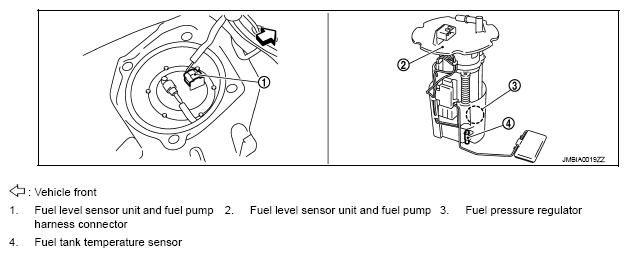

Fig 5: Fuel Filler Cap Warning System Component Parts Location (5 Of 21)

G09470873

Courtesy of NISSAN NORTH AMERICA, INC.

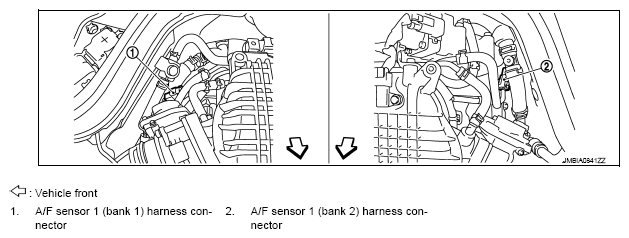

Fig 6: Fuel Filler Cap Warning System Component Parts Location (6 Of 21)

G09470874

Courtesy of NISSAN NORTH AMERICA, INC.

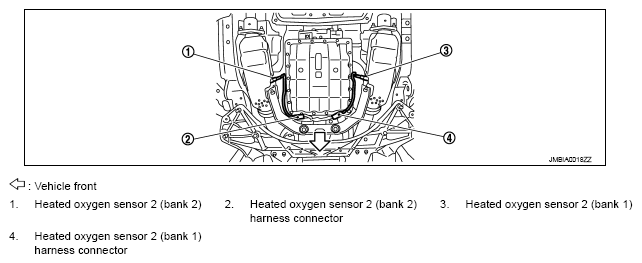

Fig 7: Fuel Filler Cap Warning System Component Parts Location (7 Of 21)

G09470875

Courtesy of NISSAN NORTH AMERICA, INC.

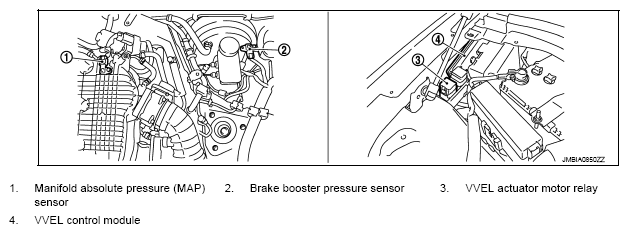

Fig 8: Fuel Filler Cap Warning System Component Parts Location (8 Of 21)

G09470876

Courtesy of NISSAN NORTH AMERICA, INC.

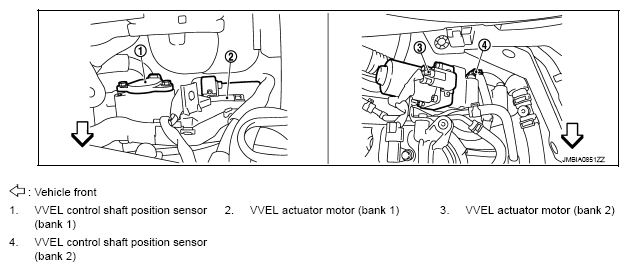

Fig 9: Fuel Filler Cap Warning System Component Parts Location (9 Of 21)

G09470877

Courtesy of NISSAN NORTH AMERICA, INC.

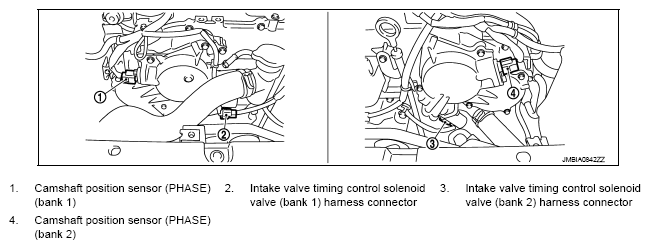

Fig 10: Fuel Filler Cap Warning System Component Parts Location (10 Of 21)

G09470878

Courtesy of NISSAN NORTH AMERICA, INC.

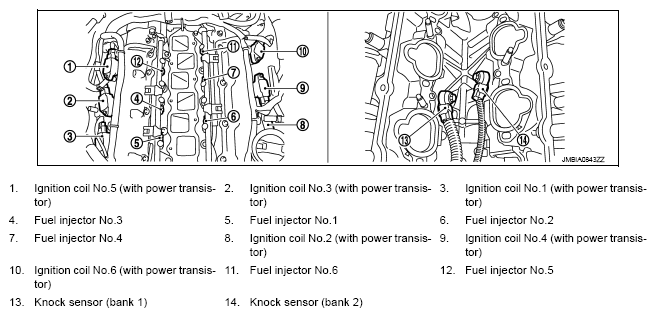

Fig 11: Fuel Filler Cap Warning System Component Parts Location (11 Of 21)

G09470879

Courtesy of NISSAN NORTH AMERICA, INC.

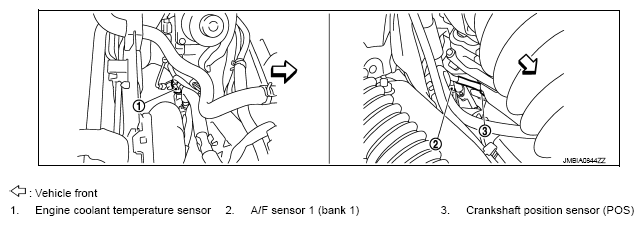

Fig 12: Fuel Filler Cap Warning System Component Parts Location (12 Of 21)

G09470880

Courtesy of NISSAN NORTH AMERICA, INC.

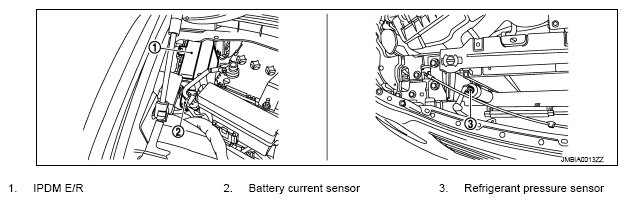

Fig 13: Fuel Filler Cap Warning System Component Parts Location (13 Of 21)

G09470881

Courtesy of NISSAN NORTH AMERICA, INC.

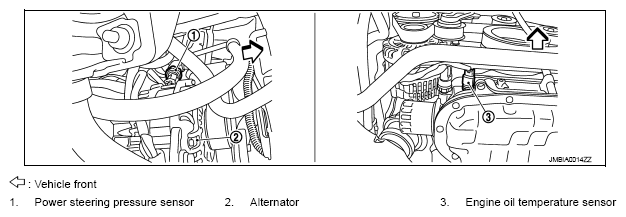

Fig 14: Fuel Filler Cap Warning System Component Parts Location (14 Of 21)

G09470882

Courtesy of NISSAN NORTH AMERICA, INC.

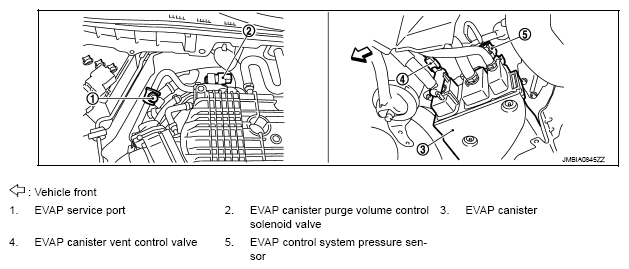

Fig 15: Fuel Filler Cap Warning System Component Parts Location (15 Of 21)

G09470883

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Fuel Filler Cap Warning System Component Parts Location (16 Of 21)

G09470884

Courtesy of NISSAN NORTH AMERICA, INC.

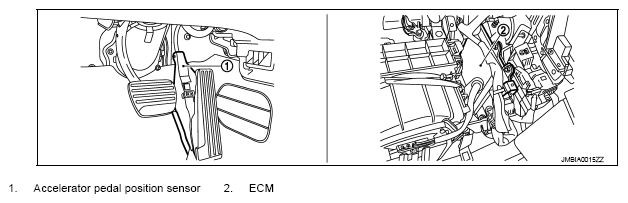

Fig 17: Fuel Filler Cap Warning System Component Parts Location (17 Of 21)

G09470885

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Fuel Filler Cap Warning System Component Parts Location (18 Of 21)

G09470886

Courtesy of NISSAN NORTH AMERICA, INC.

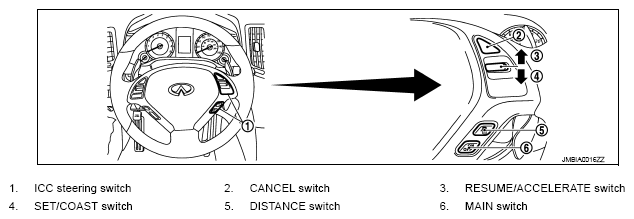

Fig 19: Fuel Filler Cap Warning System Component Parts Location (19 Of 21)

G09470887

Courtesy of NISSAN NORTH AMERICA, INC.

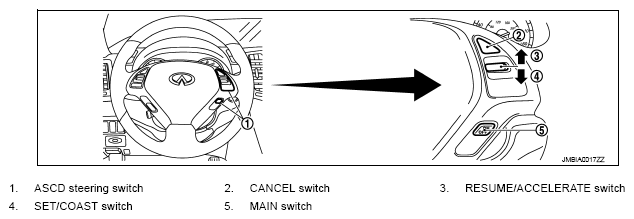

Fig 20: Fuel Filler Cap Warning System Component Parts Location (20 Of 21)

G09470888

Courtesy of NISSAN NORTH AMERICA, INC.

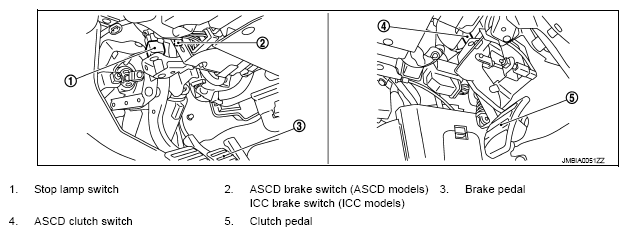

Fig 21: Fuel Filler Cap Warning System Component Parts Location (21 Of 21)

G09470889

Courtesy of NISSAN NORTH AMERICA, INC.
