Exploded View

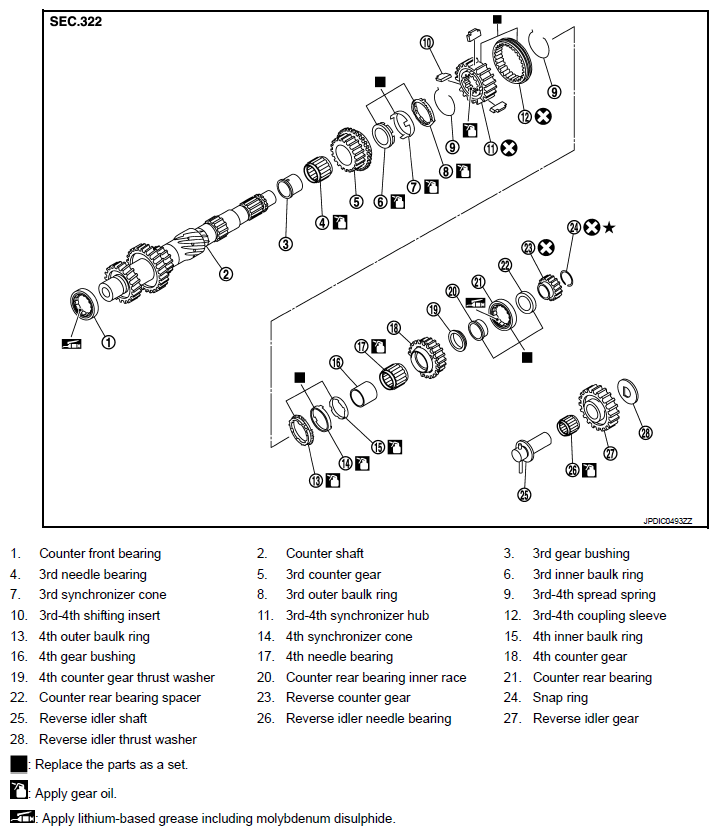

Fig 1: Exploded View Of Counter Shaft And Gear

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

• Apply gear oil to gears, shafts, synchronizers, and bearings when assembling.
