Home
>>
Infiniti
>>
2014
>>
Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System (Convertible)
>>
Removal And Installation
>>
Lower Shaft
>>
Exploded View
Exploded View

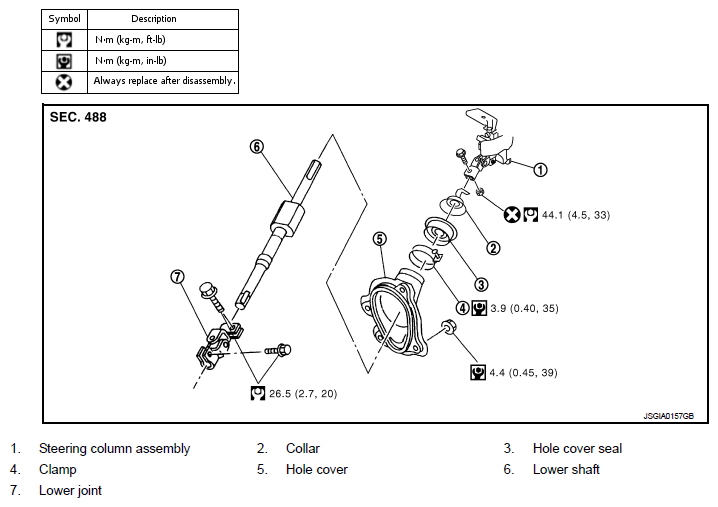

Fig 1: Exploded View Of Lower Shaft With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
