Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Panel (Convertible)
>>
Removal And Installation
>>
Instrument Panel Assembly
>>
M/T Models
>>
M/T MODELS: Exploded View
M/T MODELS: Exploded View

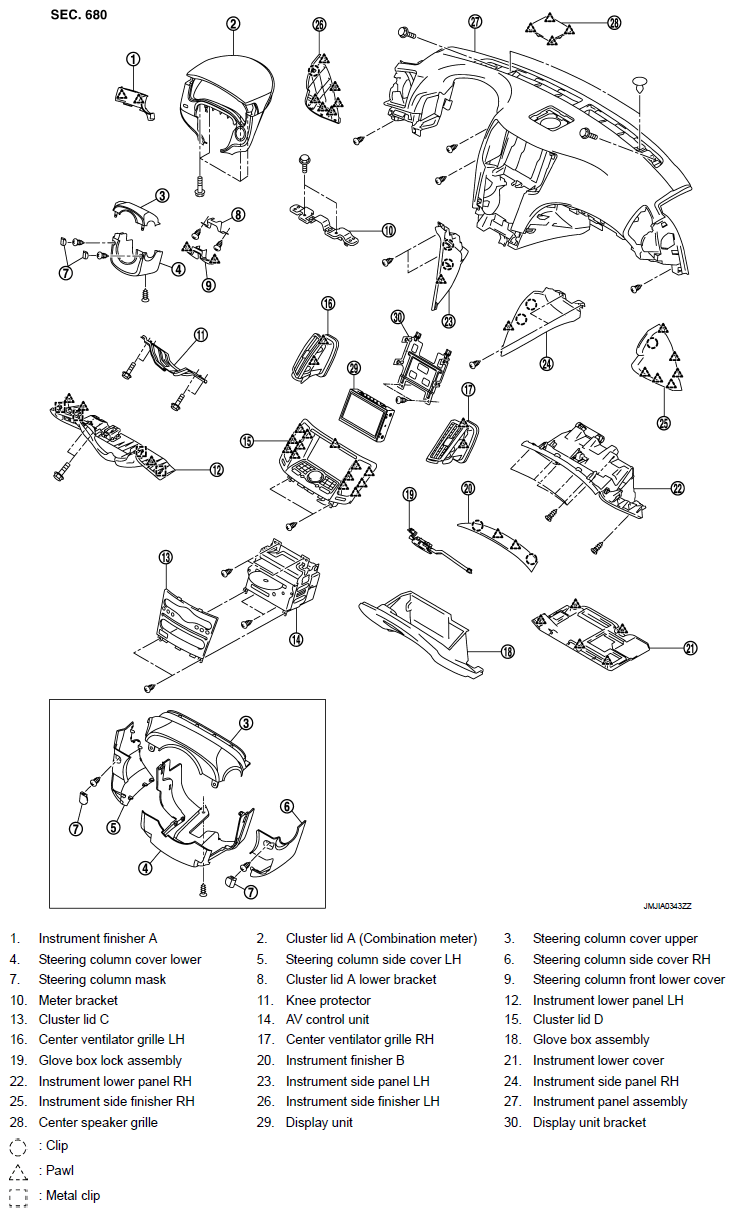

Fig 1: Exploded View Of Instrument Panel Assembly (M/T Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
