Exploded View
>>
Disassembly
Exploded View: Disassembly

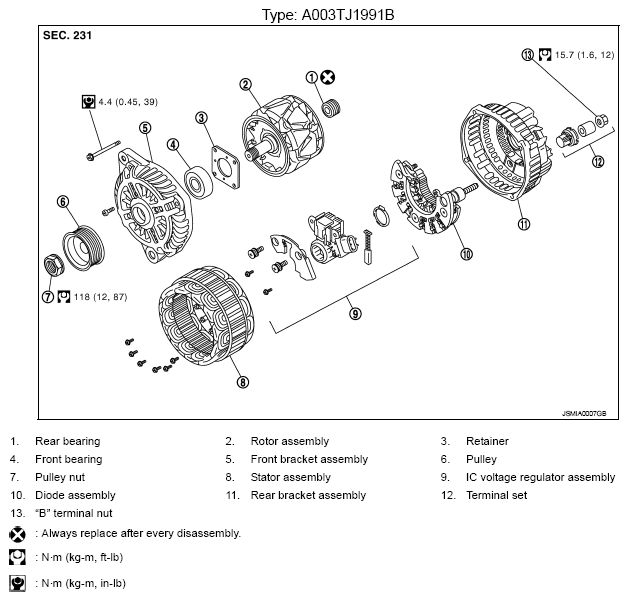

Fig 1: Exploded View Of Alternator (Type A003Tj1991B) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
