LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2014
>>
Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System (Convertible)
>>
Removal And Installation
>>
Rear Window Glass
>>

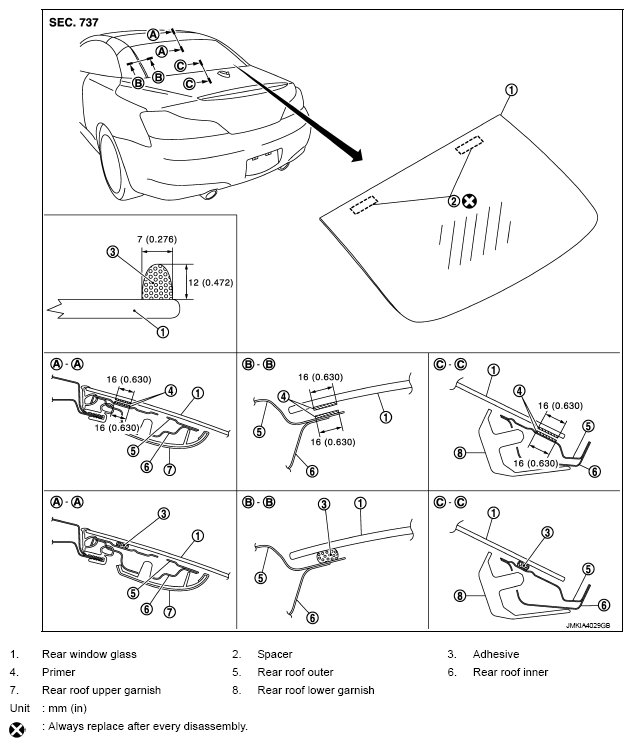

Exploded View
Exploded View
Fig 1: Identifying Rear Window Glass Adjustment Sections
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
