Infiniti
>>
2014
>>
Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System (Convertible)
>>
Removal And Installation
>>
Door Regulator
>>
Exploded View
Exploded View

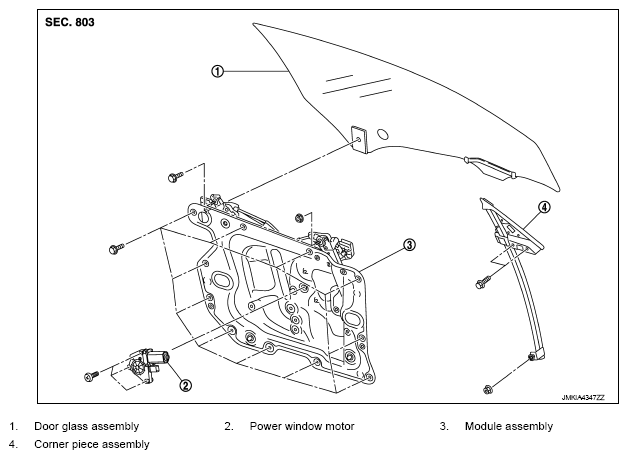

Fig 1: Exploded View Of Door Regulator
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
