Engine Control System: Wiring Diagram

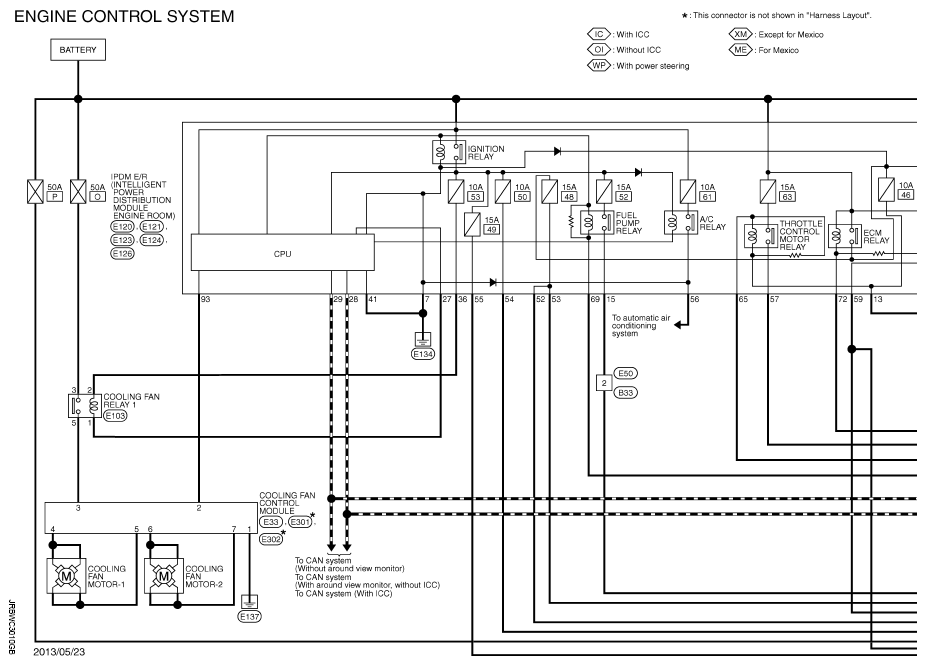

Fig 1: Engine Control System Wiring Diagram (1 Of 6)
G09160027Courtesy of NISSAN NORTH AMERICA, INC.

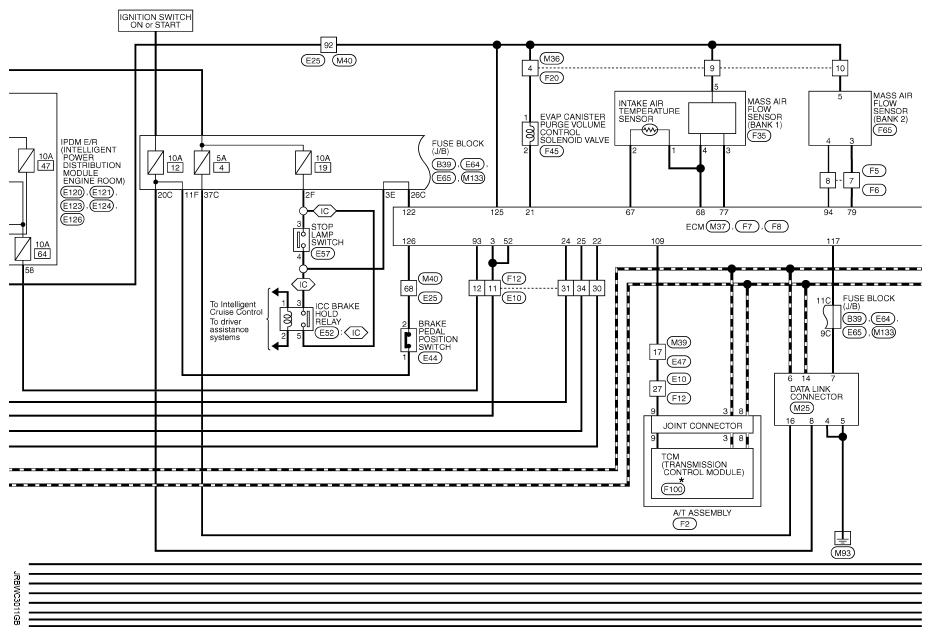

Fig 2: Engine Control System Wiring Diagram (2 Of 6)
G09160028Courtesy of NISSAN NORTH AMERICA, INC.

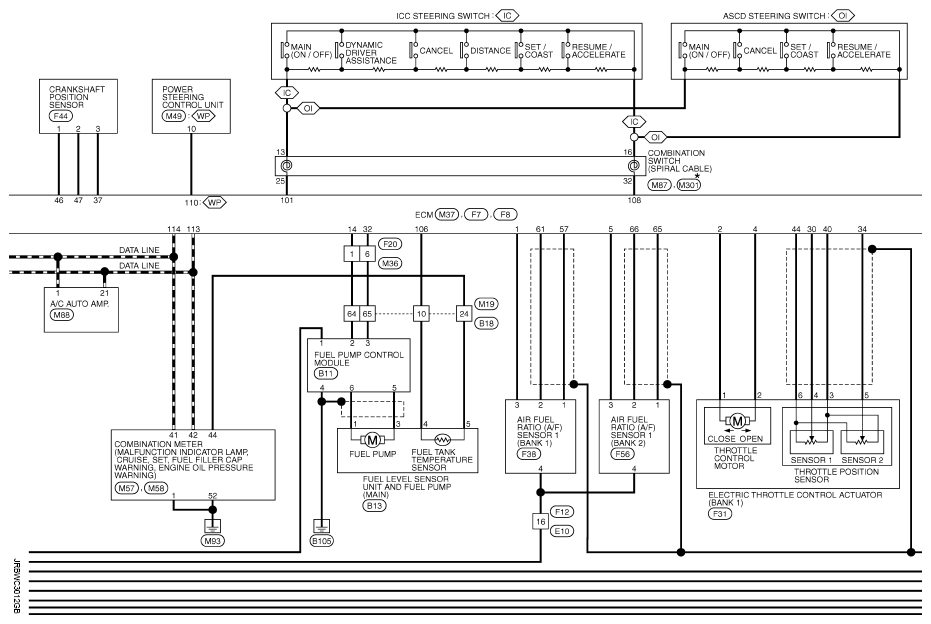

Fig 3: Engine Control System Wiring Diagram (3 Of 6)
G09160029Courtesy of NISSAN NORTH AMERICA, INC.

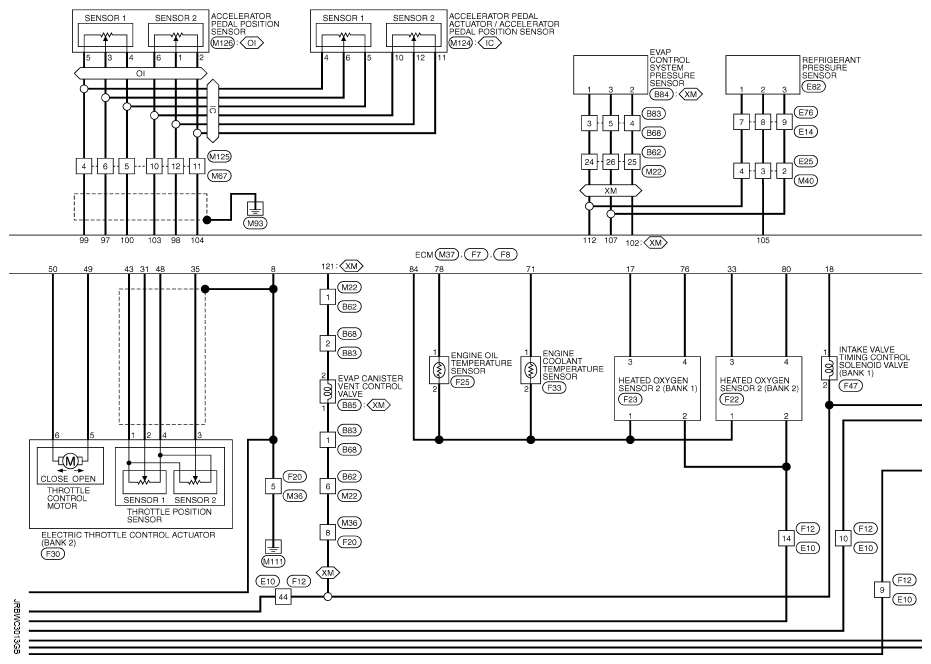

Fig 4: Engine Control System Wiring Diagram (4 Of 6)
G09160030Courtesy of NISSAN NORTH AMERICA, INC.

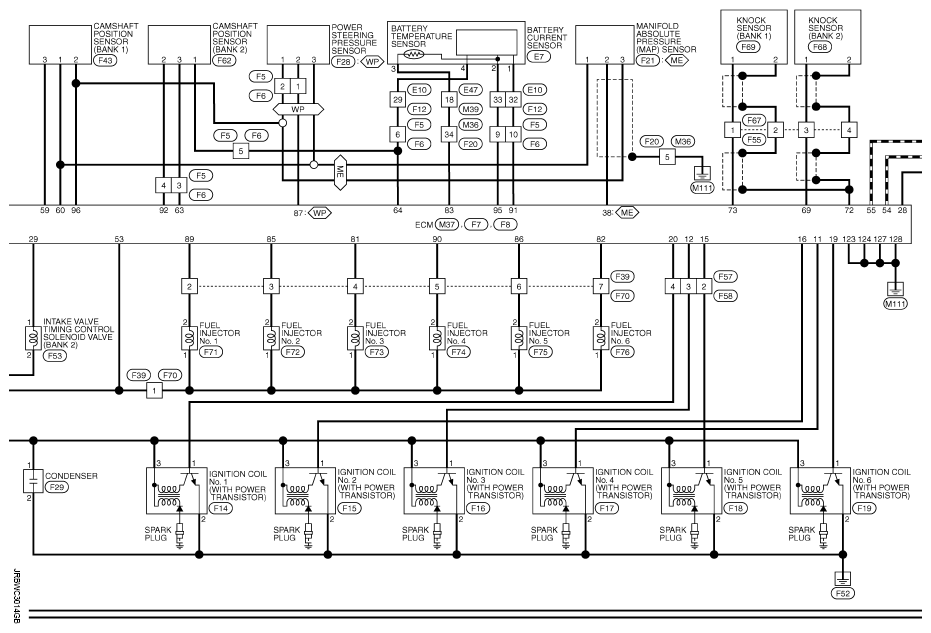

Fig 5: Engine Control System Wiring Diagram (5 Of 6)
G09160031Courtesy of NISSAN NORTH AMERICA, INC.

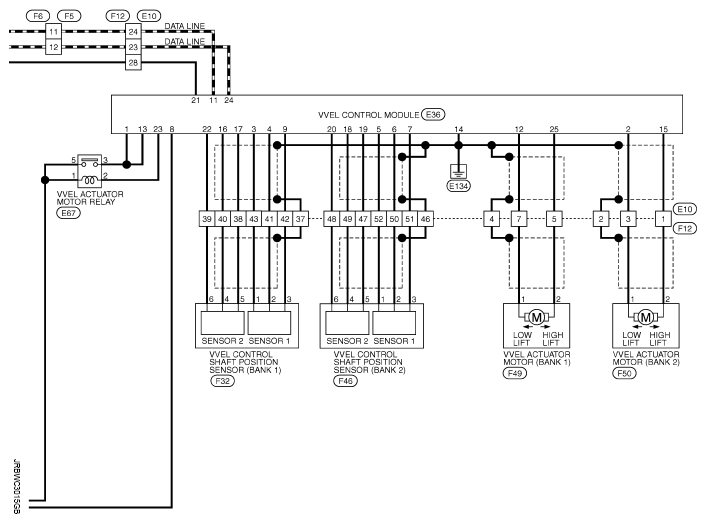

Fig 6: Engine Control System Wiring Diagram (6 Of 6)
G09160032Courtesy of NISSAN NORTH AMERICA, INC.

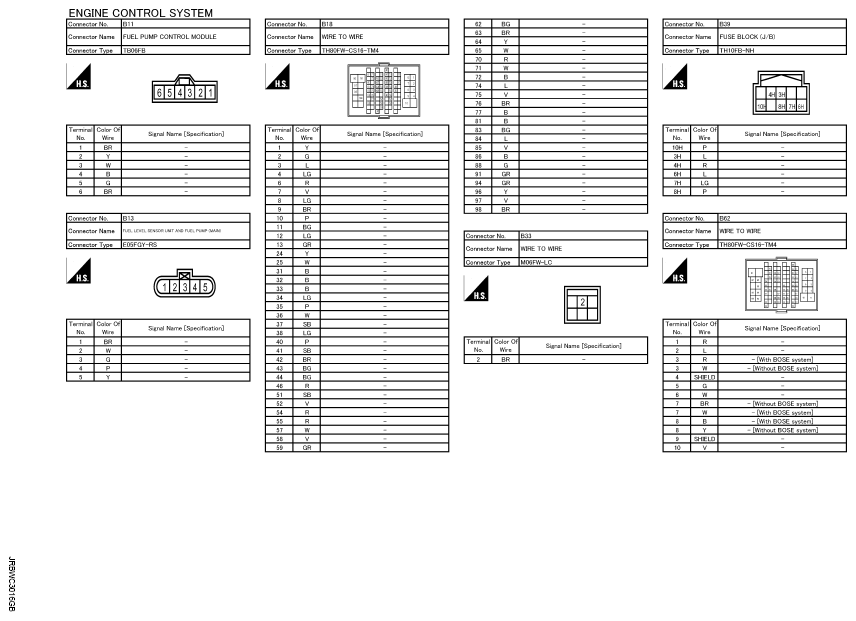

Fig 7: Engine Control System Connector End Views (1 Of 17)
G09160033Courtesy of NISSAN NORTH AMERICA, INC.

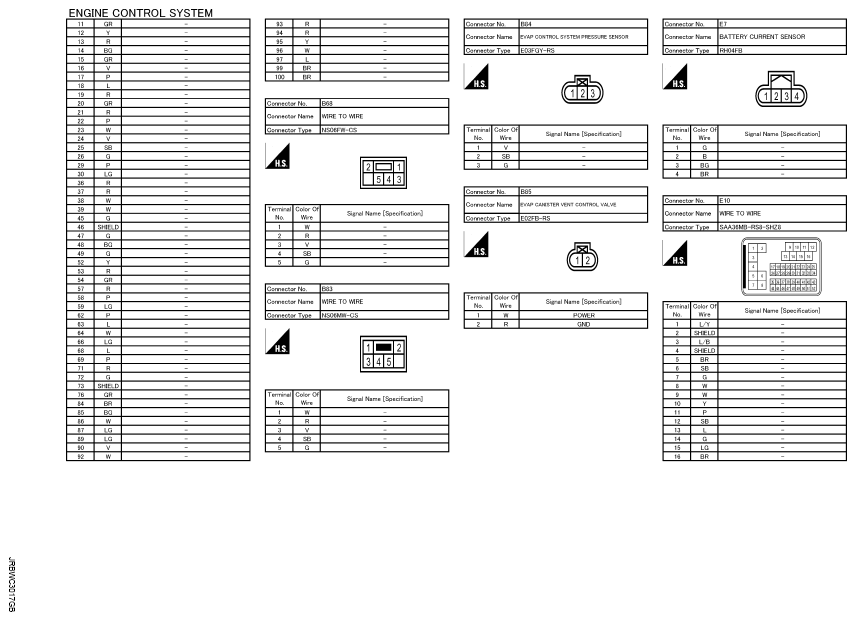

Fig 8: Engine Control System Connector End Views (2 Of 17)
G09160034Courtesy of NISSAN NORTH AMERICA, INC.

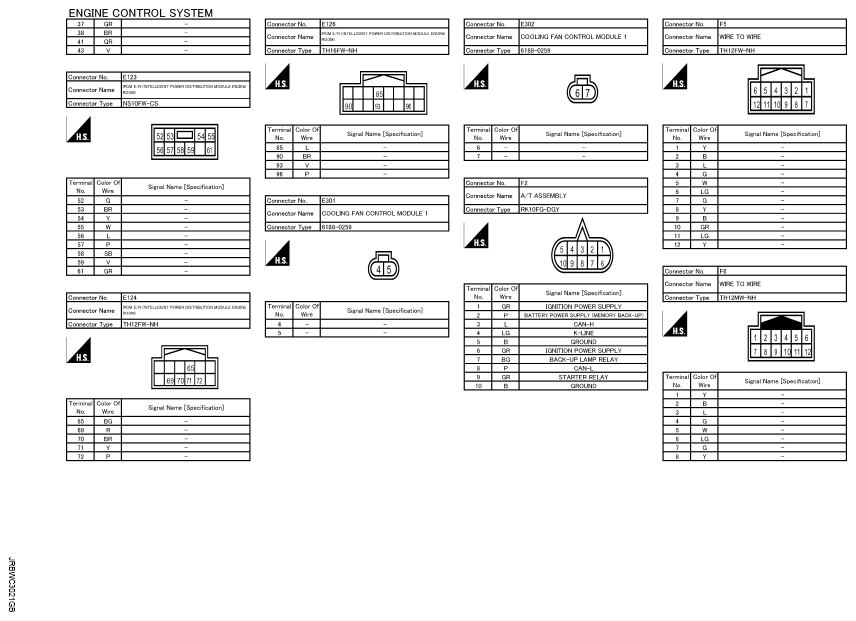

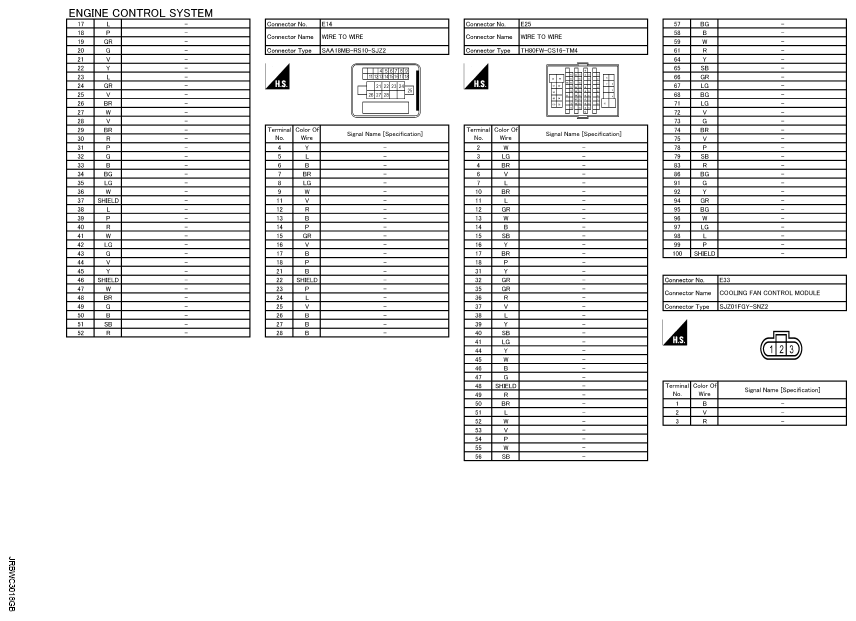

Fig 9: Engine Control System Connector End Views (3 Of 17)
G09160035Courtesy of NISSAN NORTH AMERICA, INC.

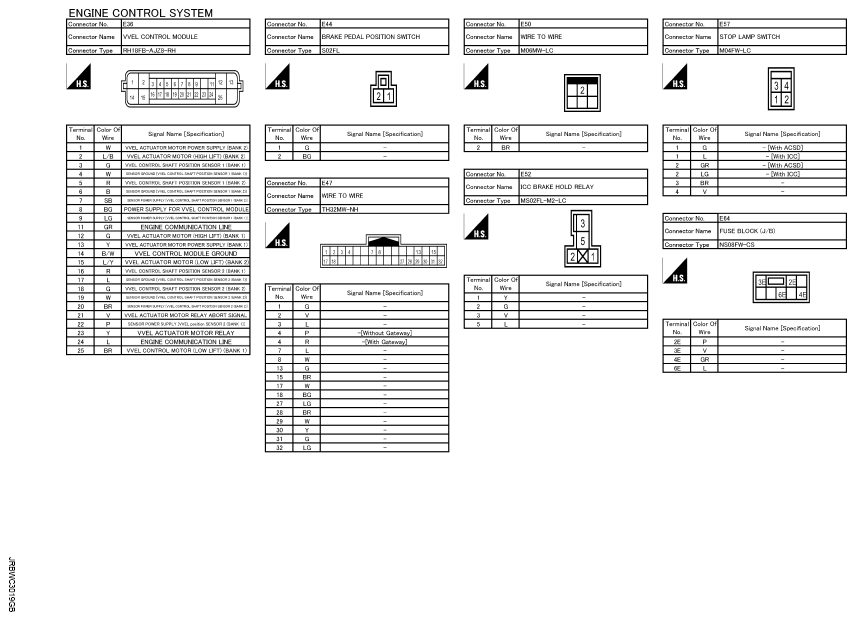

Fig 10: Engine Control System Connector End Views (4 Of 17)
G09160036Courtesy of NISSAN NORTH AMERICA, INC.

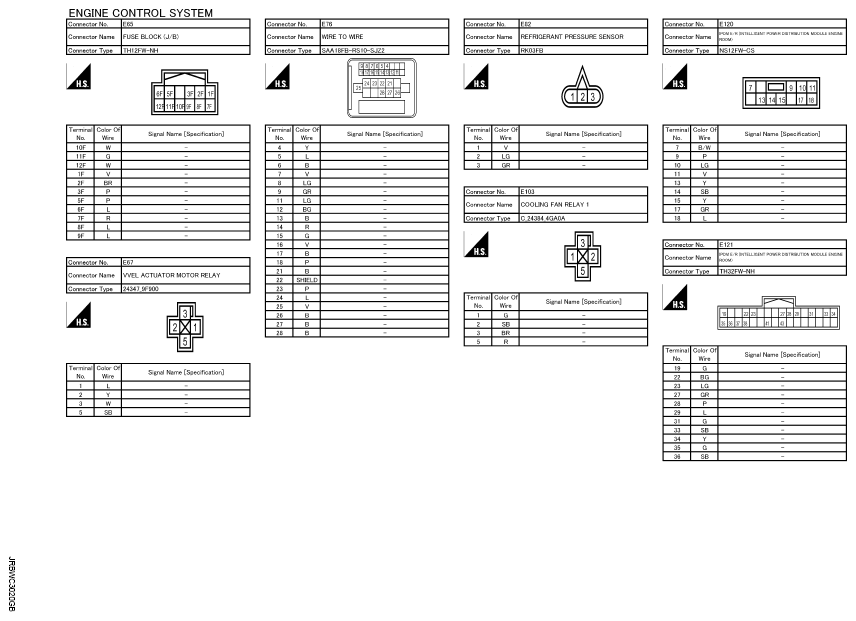

Fig 11: Engine Control System Connector End Views (5 Of 17)
G09160037Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Engine Control System Connector End Views (6 Of 17)
G09160038Courtesy of NISSAN NORTH AMERICA, INC.

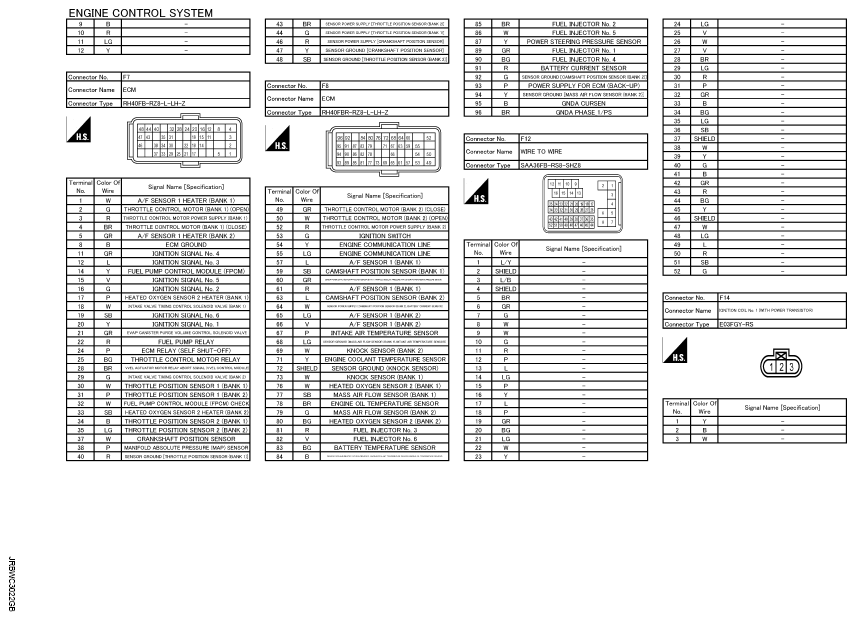

Fig 13: Engine Control System Connector End Views (7 Of 17)
G09160039Courtesy of NISSAN NORTH AMERICA, INC.

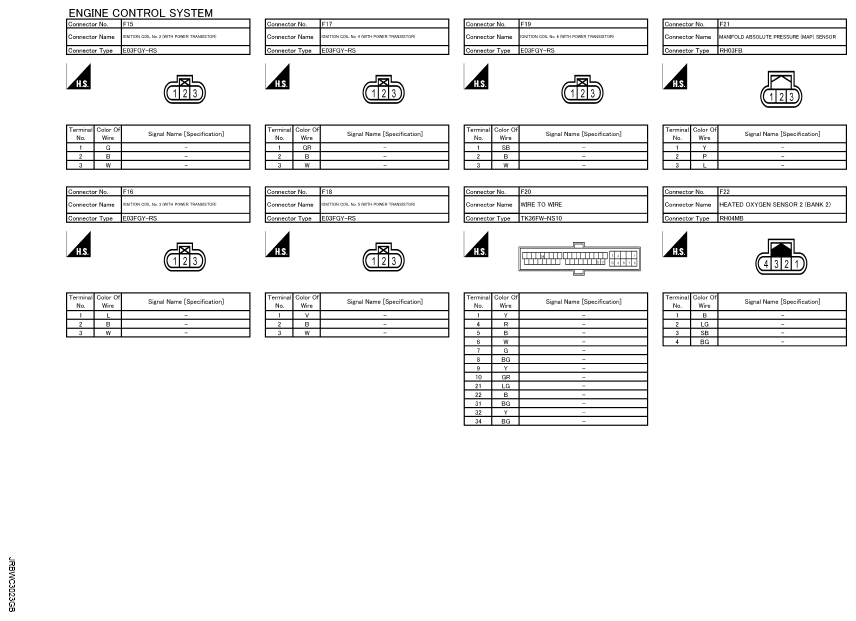

Fig 14: Engine Control System Connector End Views (8 Of 17)
G09160040Courtesy of NISSAN NORTH AMERICA, INC.

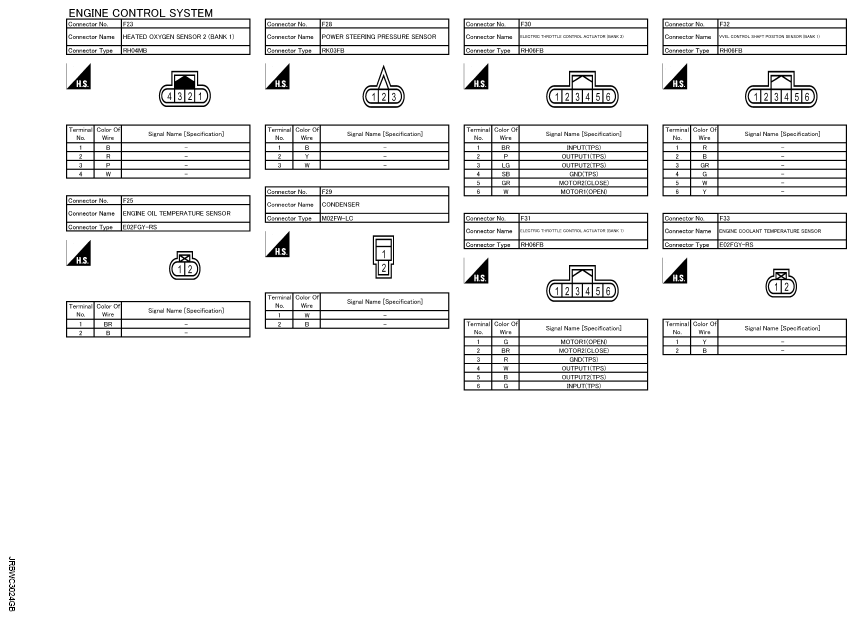

Fig 15: Engine Control System Connector End Views (9 Of 17)
G09160041Courtesy of NISSAN NORTH AMERICA, INC.

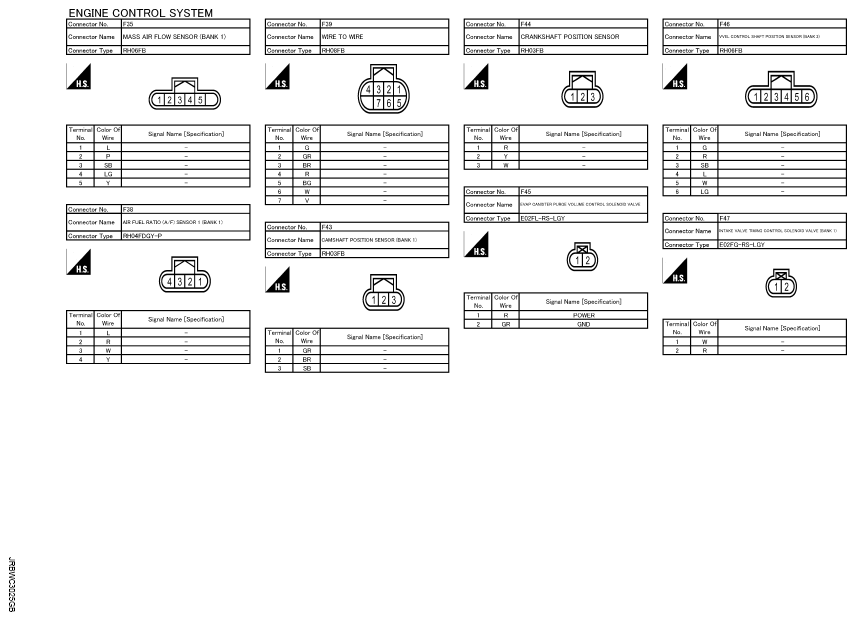

Fig 16: Engine Control System Connector End Views (10 Of 17)
G09160042Courtesy of NISSAN NORTH AMERICA, INC.

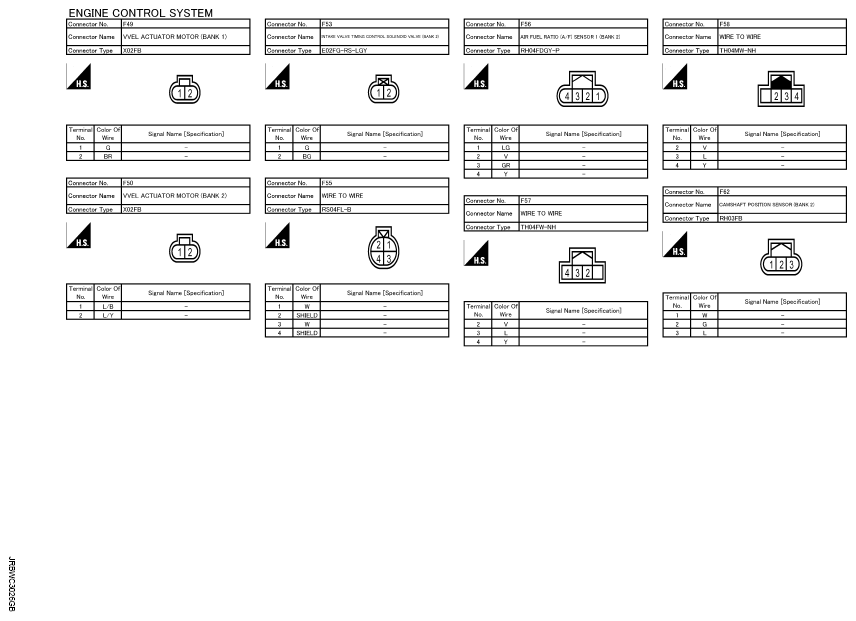

Fig 17: Engine Control System Connector End Views (11 Of 17)
G09160043Courtesy of NISSAN NORTH AMERICA, INC.

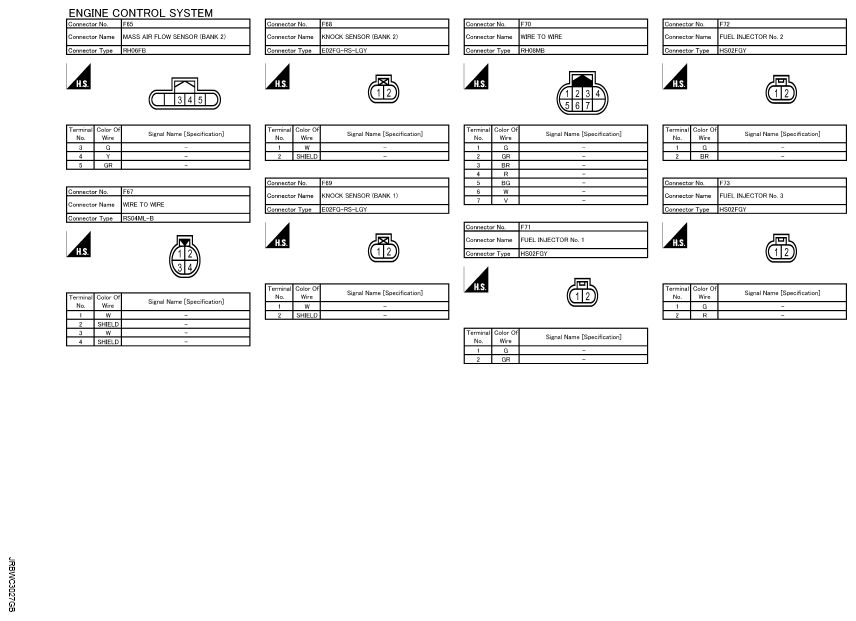

Fig 18: Engine Control System Connector End Views (12 Of 17)
G09160044Courtesy of NISSAN NORTH AMERICA, INC.
Fig 19: Engine Control System Connector End Views (13 Of 17)
G09160045Courtesy of NISSAN NORTH AMERICA, INC.

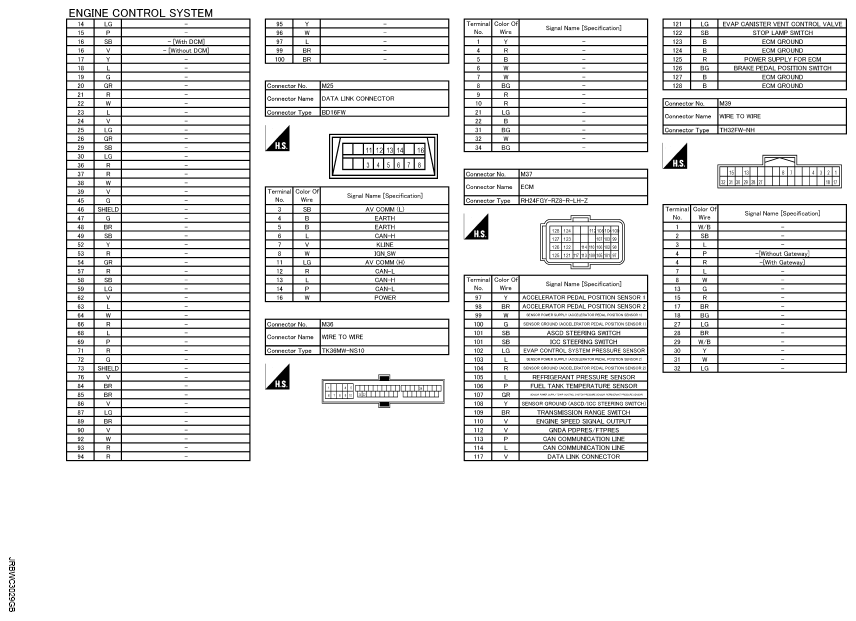

Fig 20: Engine Control System Connector End Views (14 Of 17)
G09160046Courtesy of NISSAN NORTH AMERICA, INC.

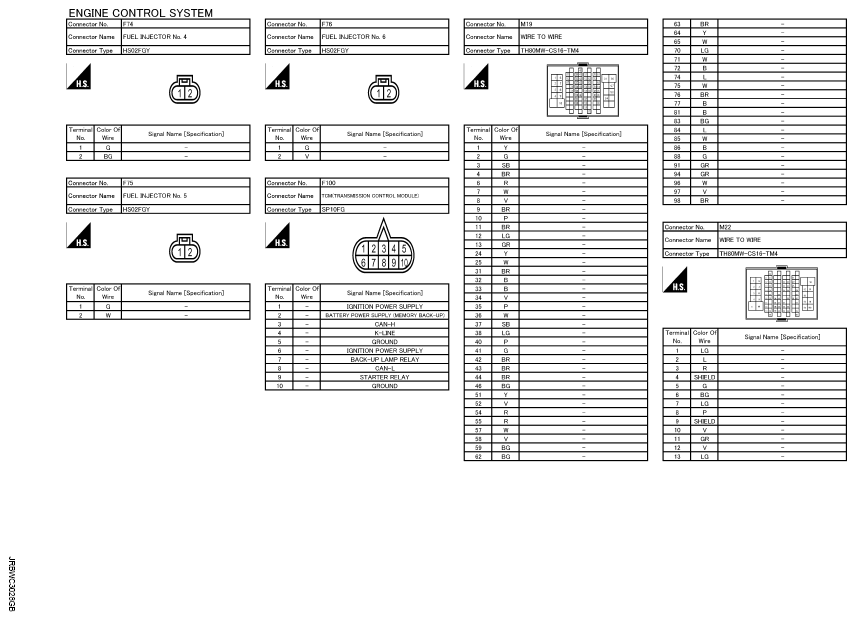

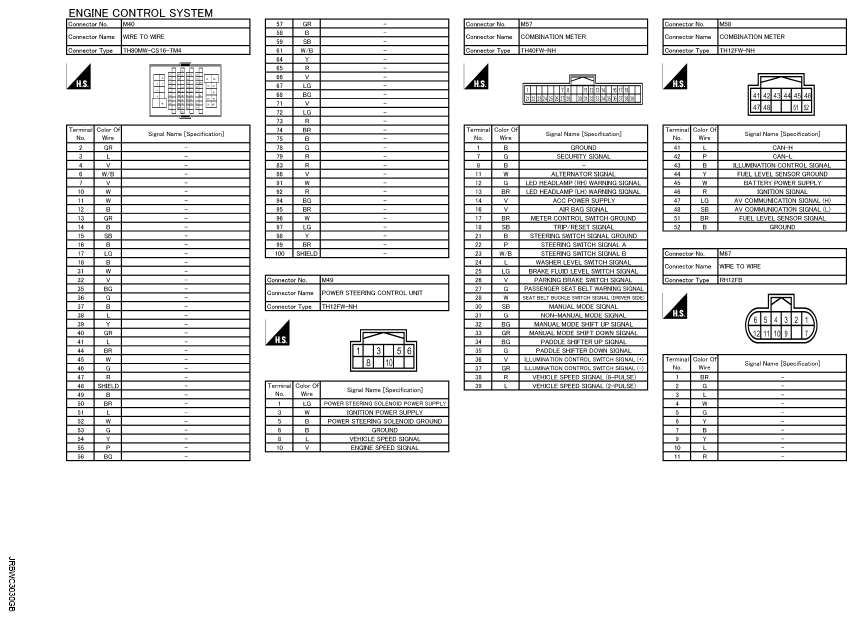

Fig 21: Engine Control System Connector End Views (15 Of 17)
G09160047Courtesy of NISSAN NORTH AMERICA, INC.

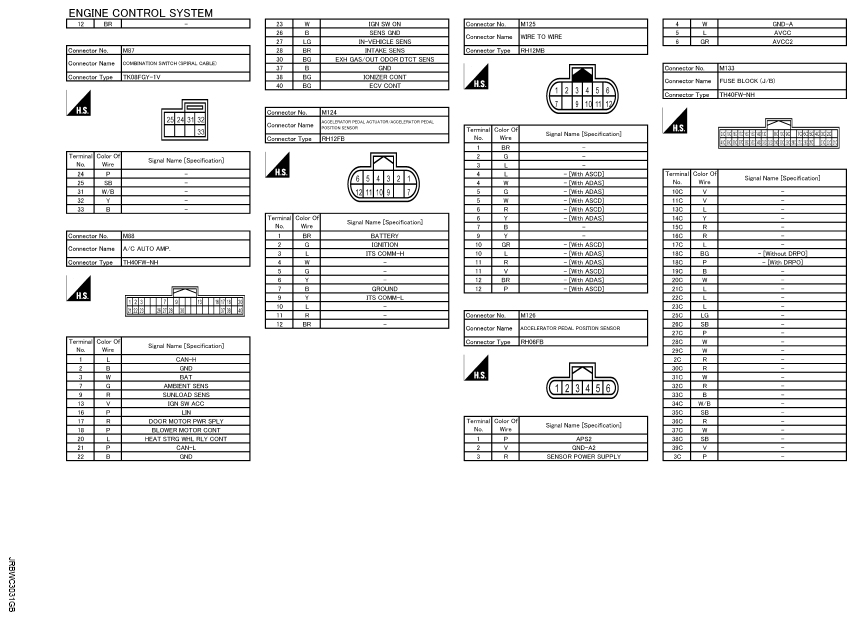

Fig 22: Engine Control System Connector End Views (16 Of 17)
G09160048Courtesy of NISSAN NORTH AMERICA, INC.
Fig 23: Engine Control System Connector End Views (17 Of 17)
G09160049Courtesy of NISSAN NORTH AMERICA, INC.
