System Diagram

For USA and CANADA

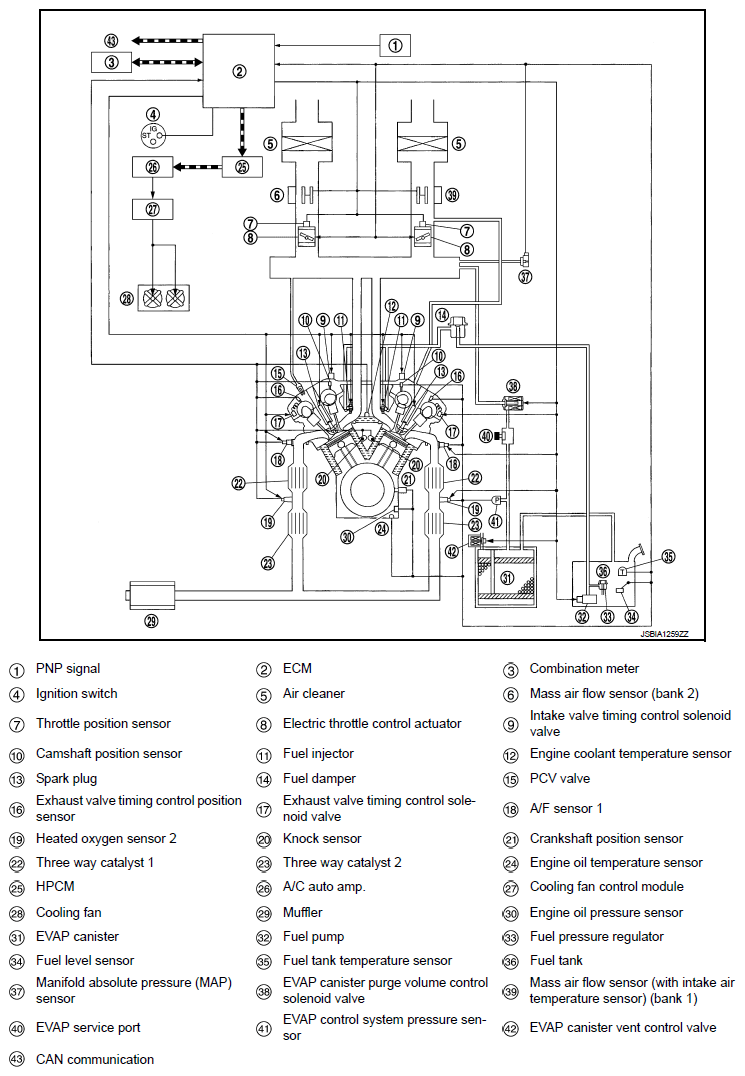

Fig 1: Engine Control System Diagram (For USA And CANADA)
G09166162Courtesy of NISSAN NORTH AMERICA, INC.

For MEXICO

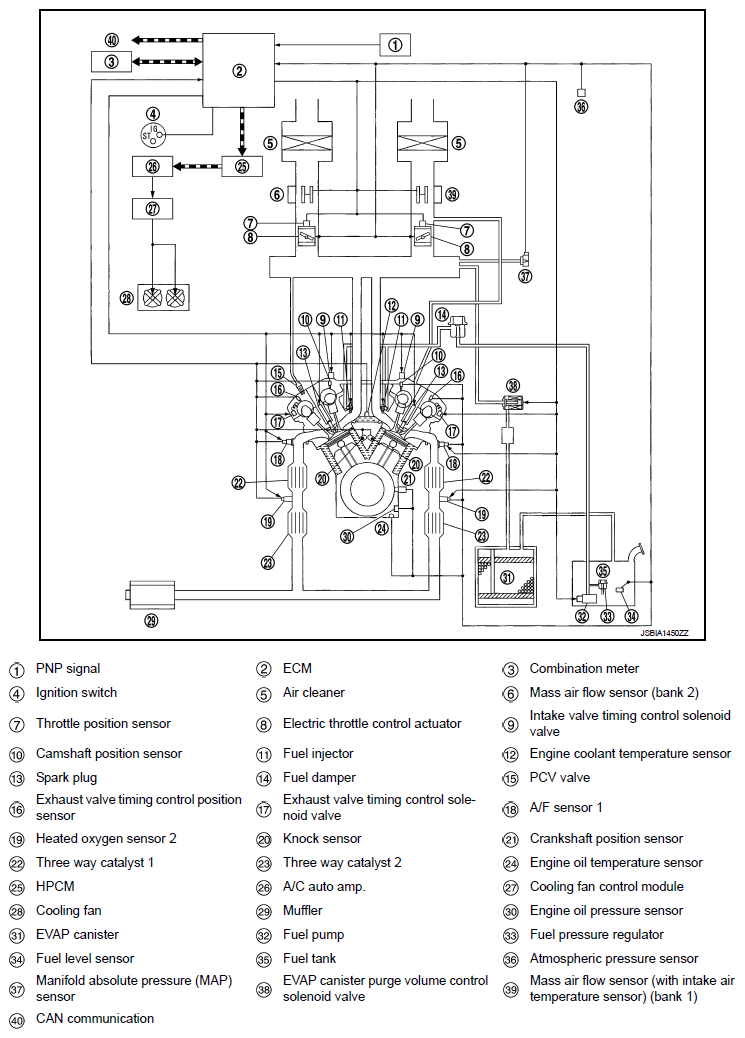

Fig 2: Engine Control System Diagram (For MEXICO)
G09166163Courtesy of NISSAN NORTH AMERICA, INC.
