Power Window Control System (Hybrid)
>>
System Description
>>
System
>>
Circuit Diagram
Circuit Diagram

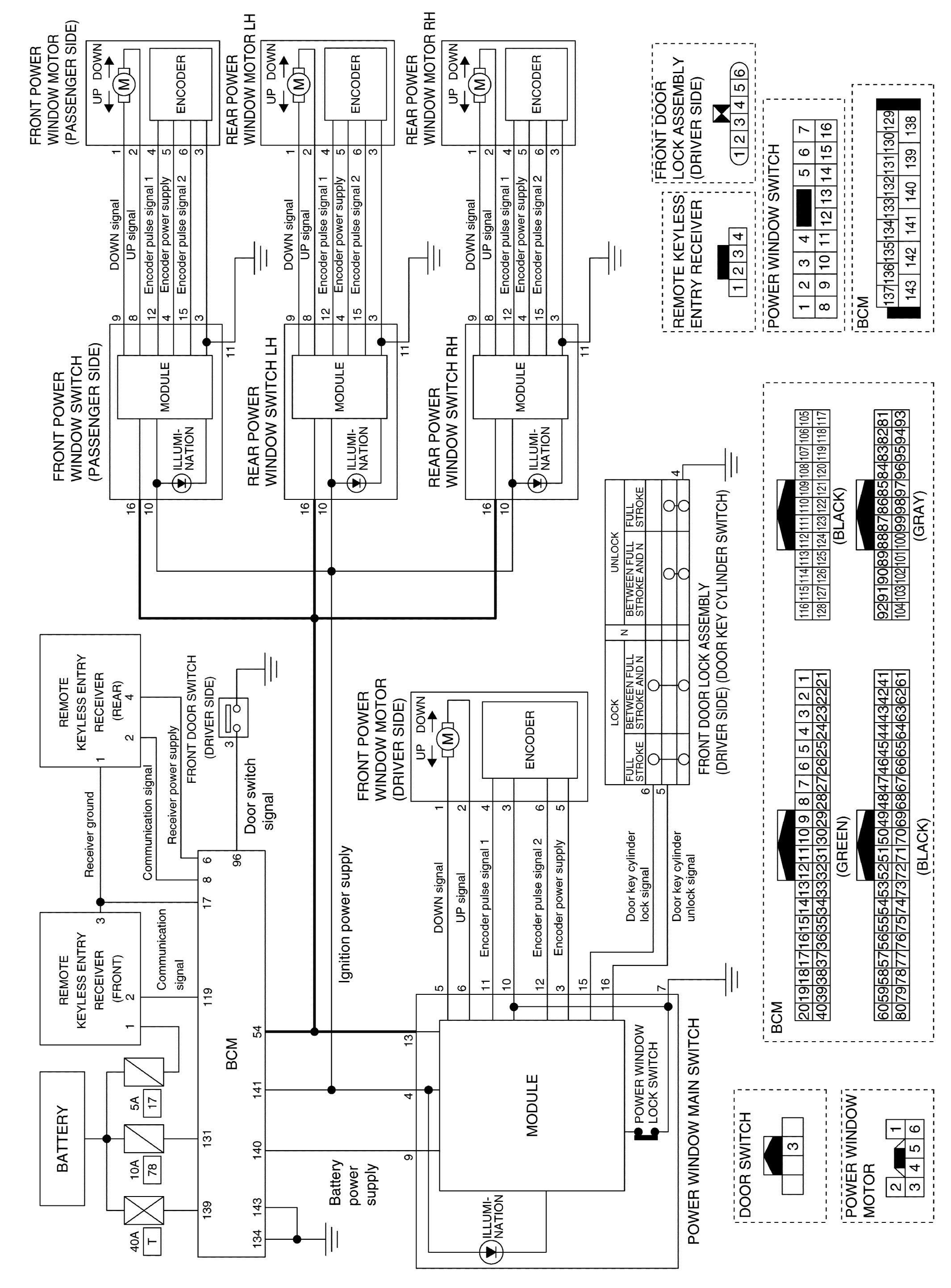

Fig 1: Power Window Control Circuit Diagram With Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
