Infiniti
>>
2014
>>
Q50 Base, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System (Except Hybrid)
>>
Removal And Installation
>>
Fuel Tank
>>
Exploded View
Exploded View

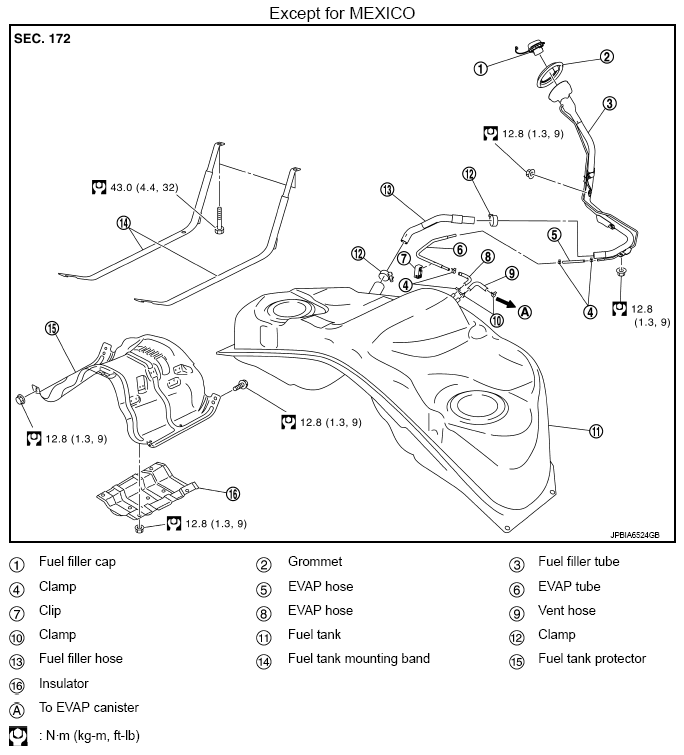

Fig 1: Exploded View Of Fuel Tank (Except For Mexico)
Courtesy of NISSAN NORTH AMERICA, INC.

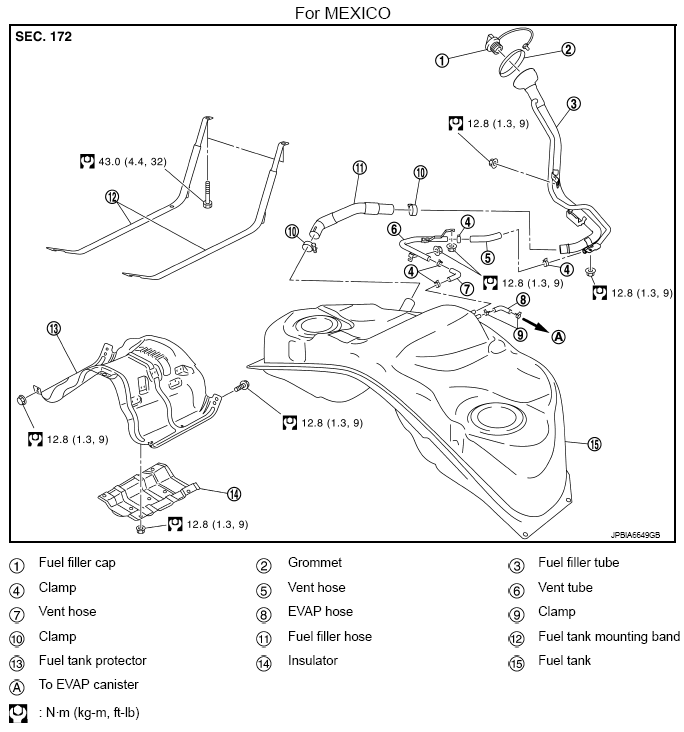

Fig 2: Exploded View Of Fuel Tank (For Mexico)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
