Disassembly and Assembly: Disassembly: Overview

  1. Remove center console assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove console mask.
    1. Open console lid.
    2. Remove console mask fixing clips with remover tool (A).
    3. Pull console mask up and back.
    4. Disconnect cool box switch connector (with Cool box).

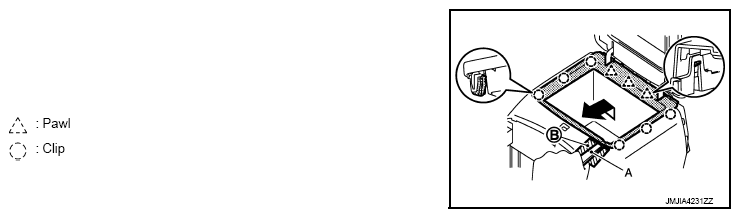

      Fig 1: Removing Console Mask
      G08877654Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Apply protective tape (B) on the part to protect it from damage.
  3. Remove console lid assembly mounting screws (A) and (B), and then remove console lid assembly.

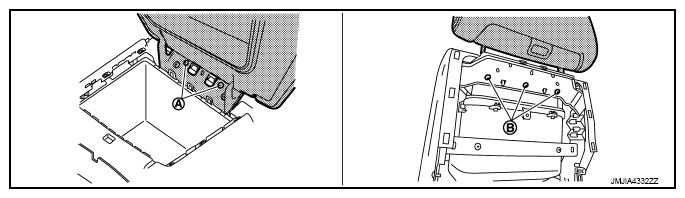

    Fig 2: Identifying Console Lid Assembly Mounting Screws
    G08877655Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove console box fixing screws, and then remove console box.
