4L Mode

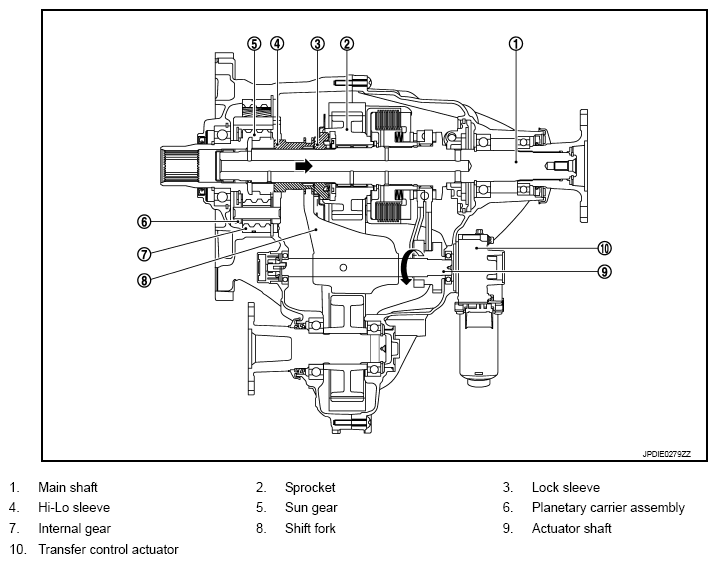

Fig 1: Transfer Case Operation Principle Diagram (4L Mode)
G08855470Courtesy of NISSAN NORTH AMERICA, INC.
  1. Transfer control unit supplies command current to transfer motor.
  2. Transfer motor operates and actuator shaft rotates counterclockwise.
  3. Shift fork operates according to rotation of actuator shaft. Planetary carrier assembly and Hi-Lo sleeve are engaged.
