Section 312 (Accelerator Control System (Except CROSSCABRIOLET))
>>
Removal And Installation
>>
Accelerator Control System
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2013 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

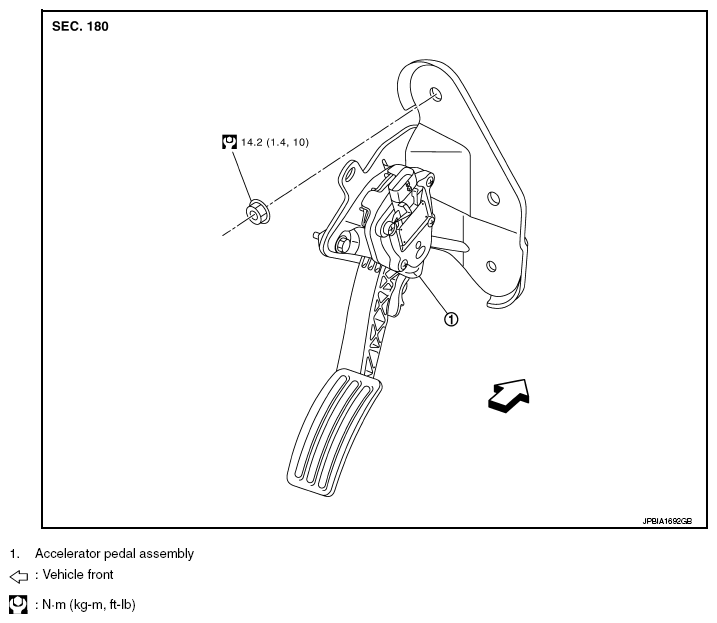

Fig 1: Exploded View Of Accelerator Pedal Assembly With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
