Engine Lubrication System Schematic

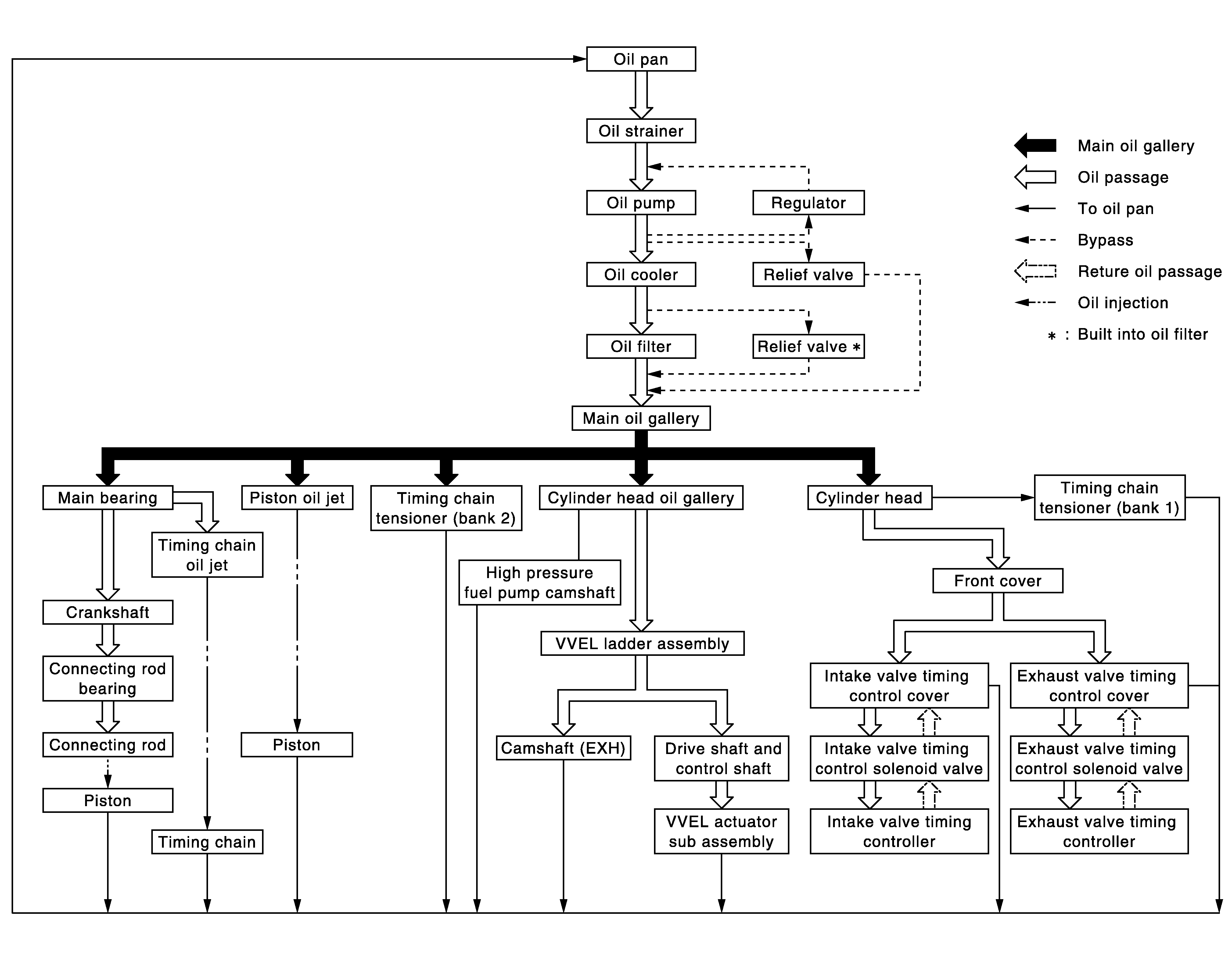

Fig 1: Engine Lubrication System Schematic

G07021597

Courtesy of NISSAN NORTH AMERICA, INC.
