Exploded View

130 2WD

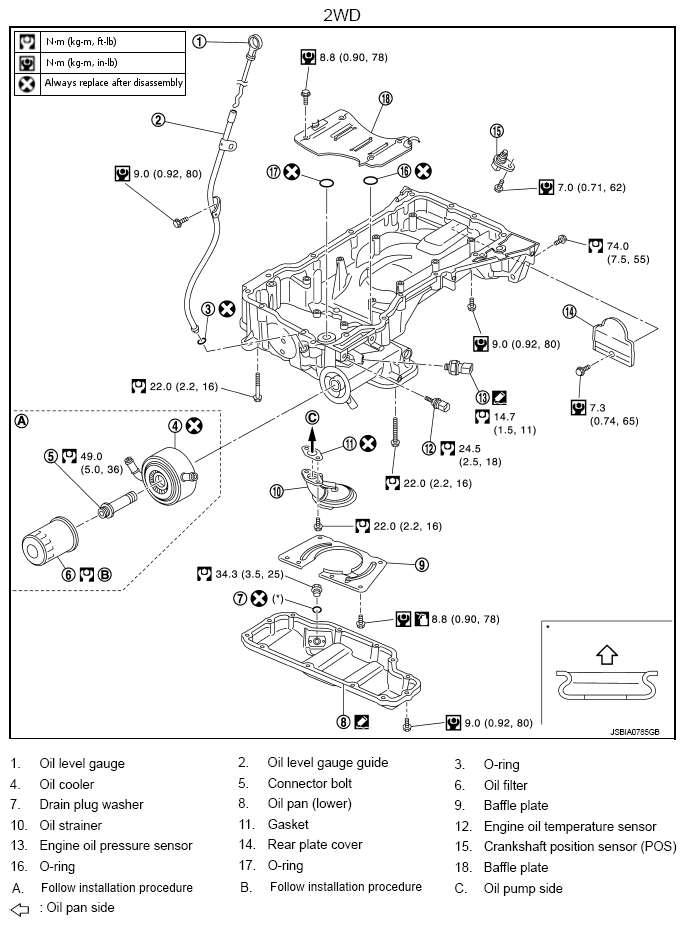

Fig 1: Exploded View Of Upper Oil Pan With Torque Specifications (2WD)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

131 AWD

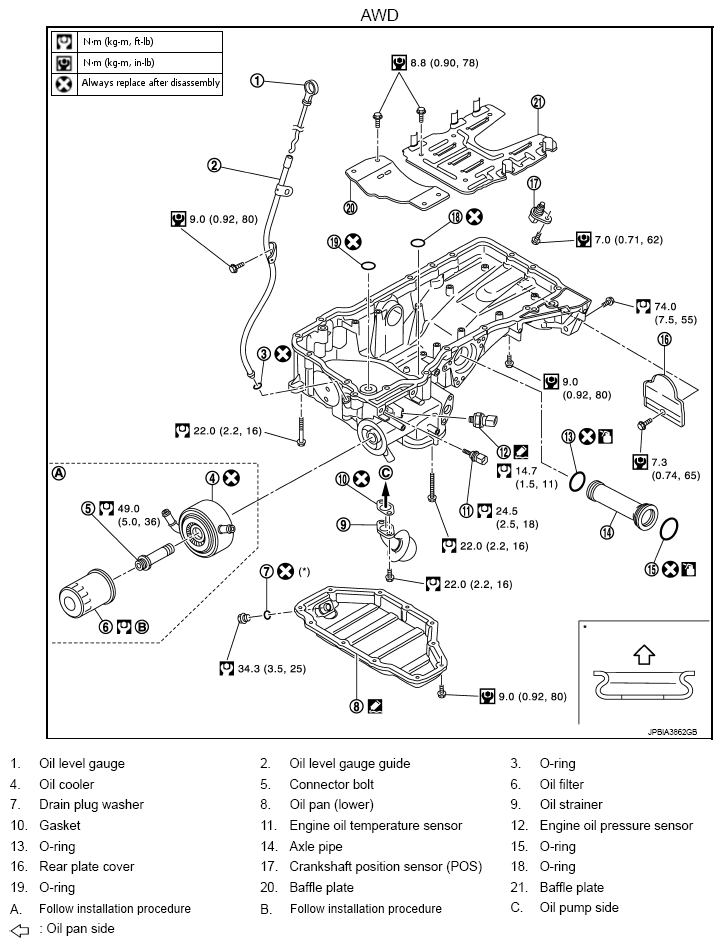

Fig 2: Exploded View Of Upper Oil Pan With Torque Specifications (AWD)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
