Low Pressure Fuel Pump

The low pressure fuel pump is integrated with a fuel pressure regulator and a fuel filter. This pump is build into the fuel tank.

ECM controls the low pressure fuel pump via FPCM.

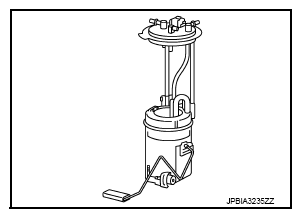

Fig 1: Identifying Low Pressure Fuel Pump
G08896996Courtesy of NISSAN NORTH AMERICA, INC.
