Exploded View

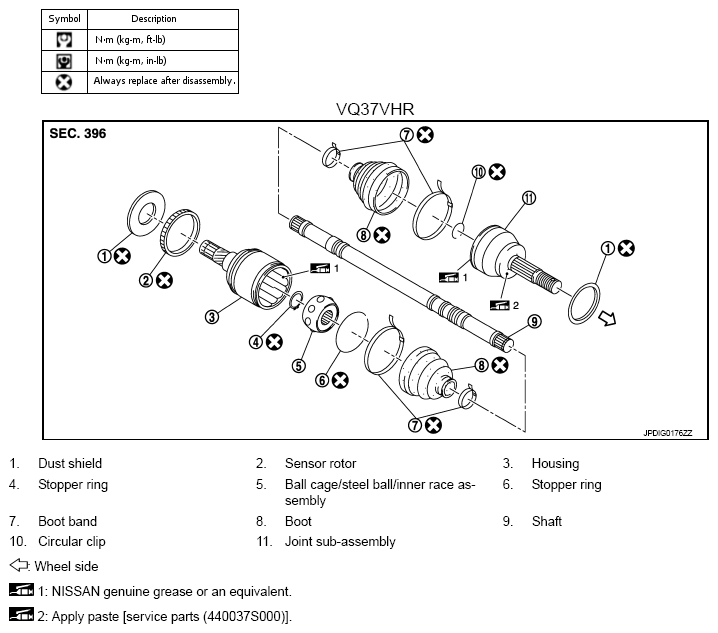

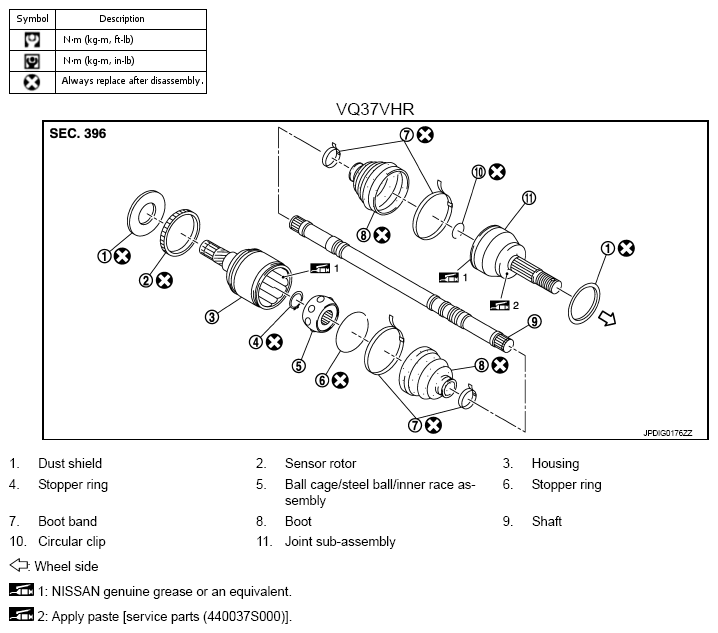

Fig 1: Exploded View Of Rear Drive Shaft (VQ37VHR)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

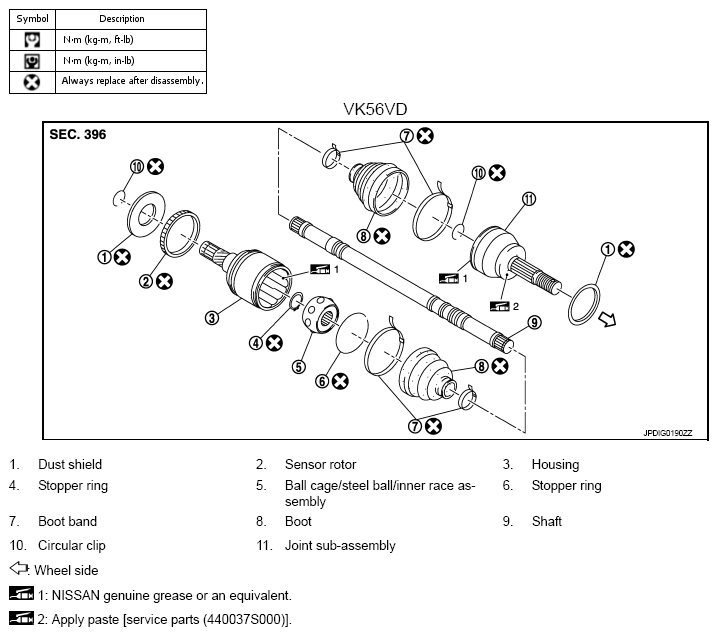

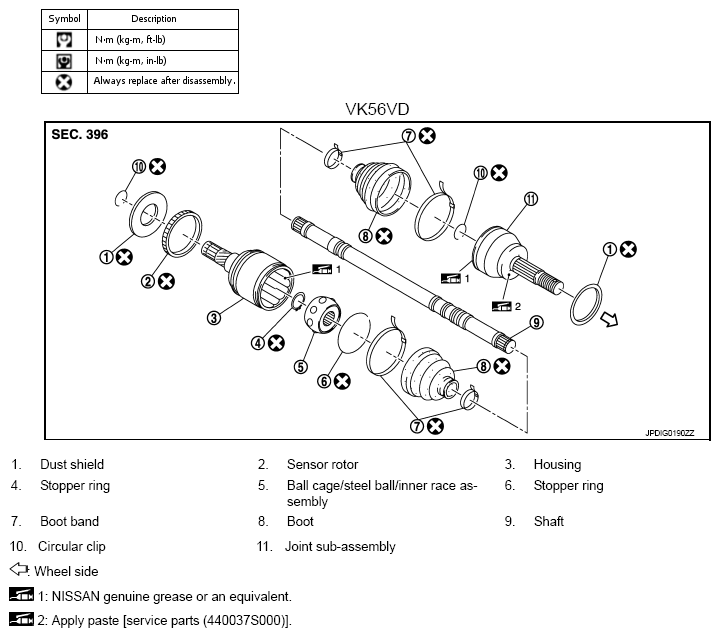

Fig 2: Exploded View Of Rear Drive Shaft (VK56VD)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
