VQ37VHR: Exploded View

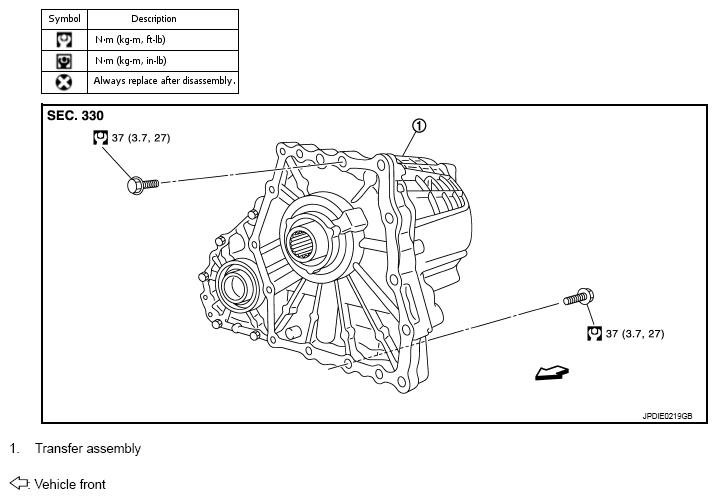

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications (VQ37VHR)

G08891221

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
