AWD: Exploded View

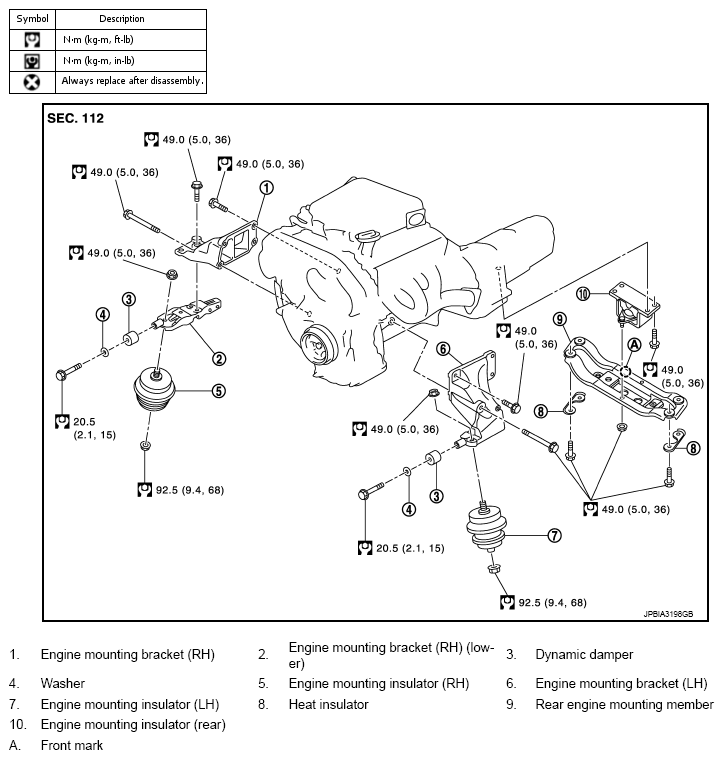

Fig 1: Exploded View Of Engine Assembly With Torque Specifications (AWD)

G08883771

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
