WITHOUT 4WAS: Exploded View
WITHOUT 4WAS: Exploded View

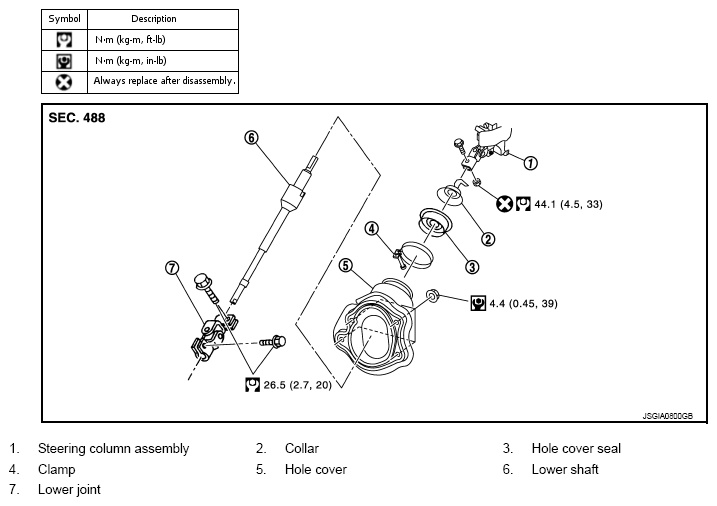

Fig 1: Exploded View Of Lower Shaft With Torque Specifications (Without 4WAS)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
