Ignition Coil, Spark Plug And Rocker Cover
>>
Exploded View
Exploded View

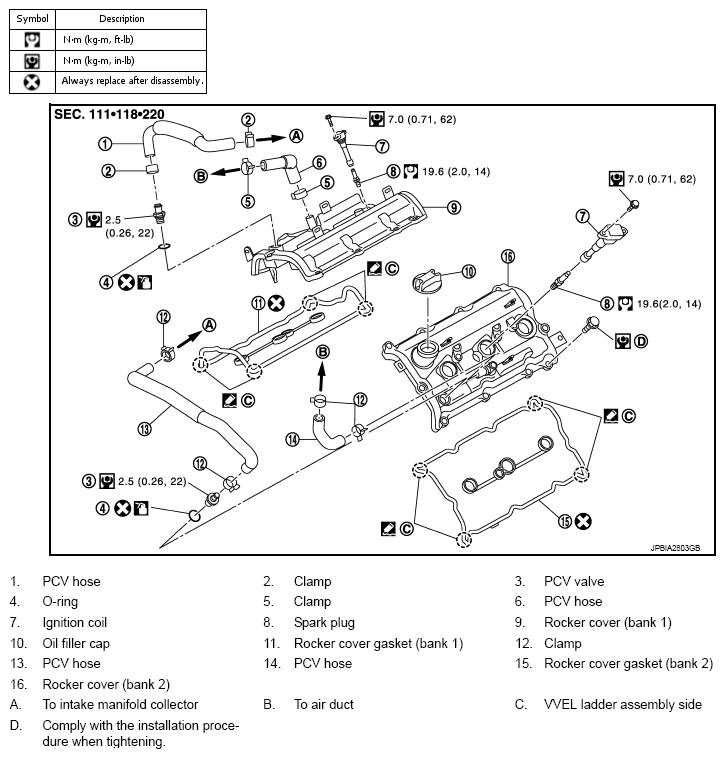

Fig 1: Exploded View Of Ignition Coil, Spark Plug And Rocker Cover With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
