Switches And Their Control Functions

NOTE: For LH/RH independent temperature and air outlet adjustment function, construction indicated by broken line as shown in the figure below is divided to driver side and passenger side by divider plate.

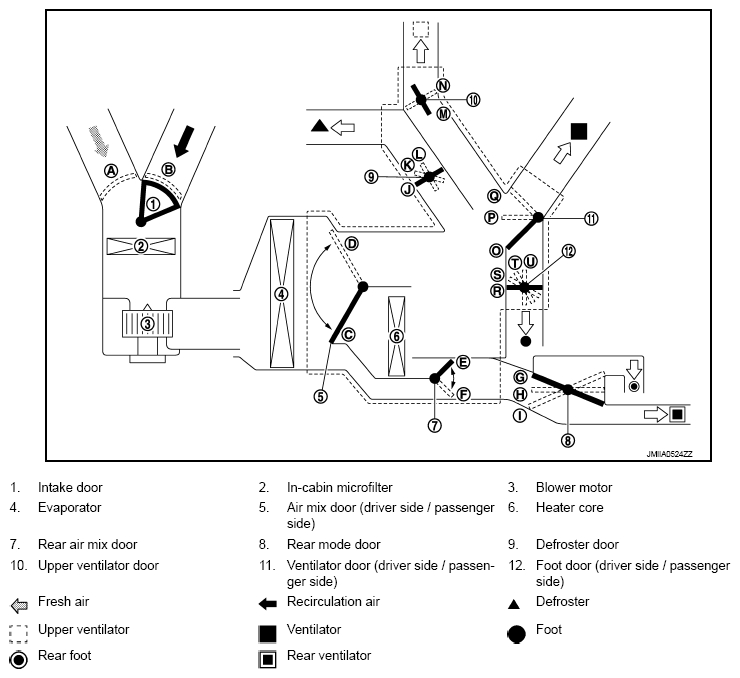

Fig 1: Switch Control Functions Operation Diagram
G08893114Courtesy of NISSAN NORTH AMERICA, INC.

With Forest Air

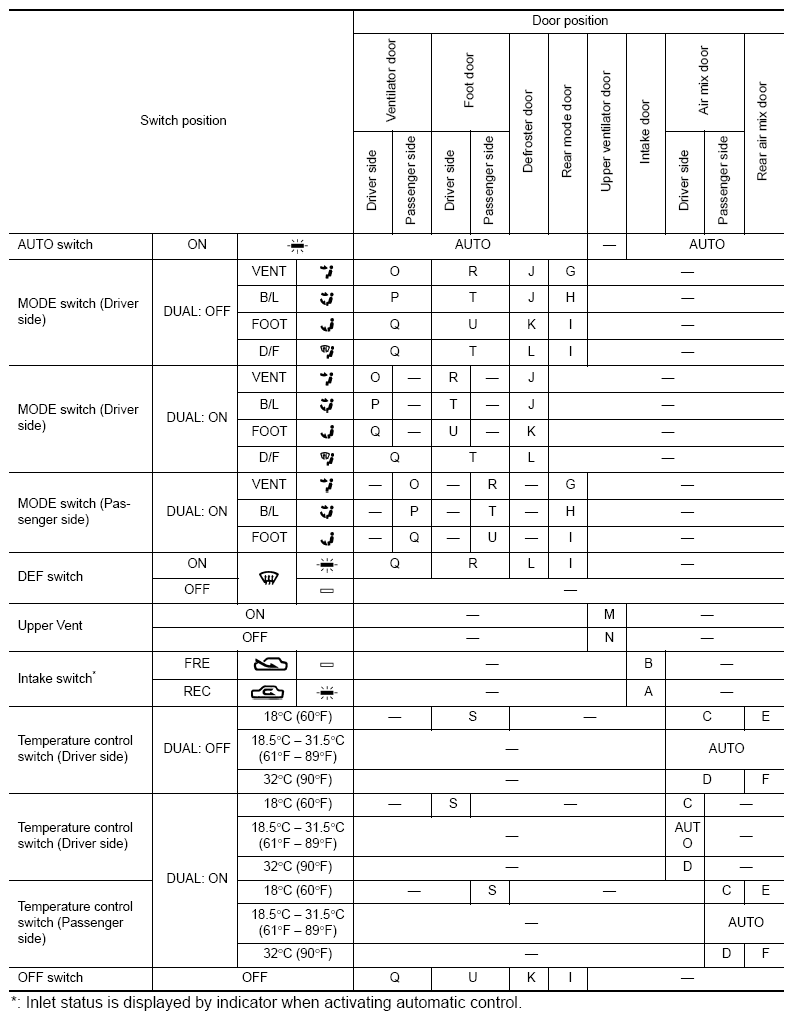

Fig 2: Switch Control Function Chart (With Forest Air)
G08893115Courtesy of NISSAN NORTH AMERICA, INC.

Without Forest Air

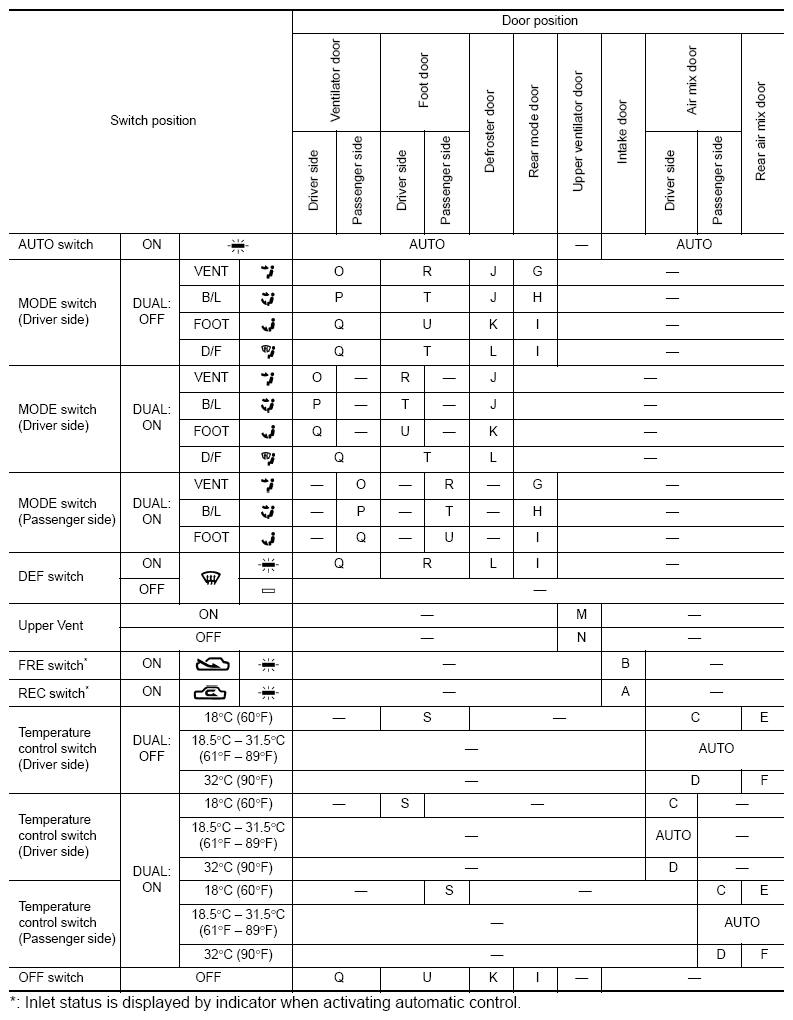

Fig 3: Switch Control Function Chart (Without Forest Air)
G08893116Courtesy of NISSAN NORTH AMERICA, INC.
